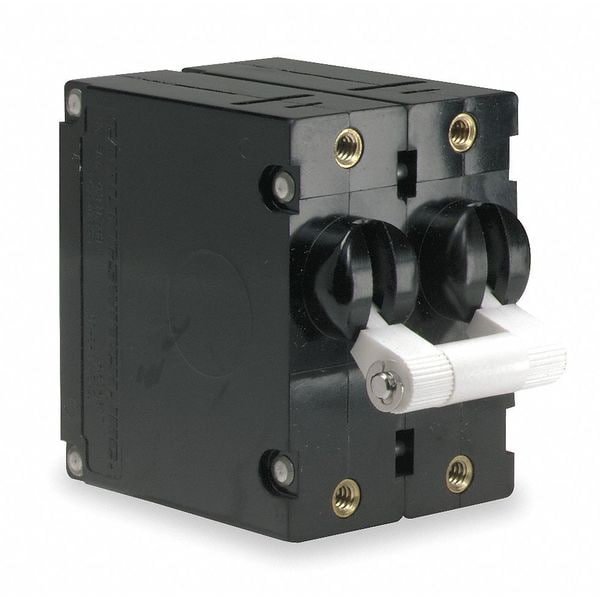

Circuit Breaker, B Series, 20A, 2 Pole, 277V AC, Not Rated, Medium Curve
| Item | Circuit Breaker |
|---|---|
| Series | B |
| Amps | 20A |
| Number of Poles | 2 |
| AC Voltage Rating | 277V AC |
| Circuit Breaker Type | Magnetic |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Threaded Insert |
| Max. AIR Rating | Not Rated |
| Trip Type | Series Trip |
| Terminal Connection | 1/4 in Tab |
| Width | 1-1/2 in |
| Depth | 2.12 in |
| Height | 2 in |
| DC Voltage Rating | 80V DC |
| Curve Type | Medium |
| AIR @ 240VAC | 1.5kA |
| AIR @ 65VDC | 7.5kA |
| Max. Wire Size | Not Specified |
| Standards | CSA, UL, VDE |
| AIR @ 120VAC | Not Rated |
| AIR @ 125VDC | Not Rated |
| Max. Panel Thickness | 0.1 in |
| Actuator Legend | I/O, On/Off |
| Max. Operating Temp. | 185 deg F |
| Min. Operating Temp. | -40 deg F |
| Panel Cutout Size | 2.187 in x 1.53 in |
| Mounting Hole Thread Size | #6-32 |
| Actuator Color | White |
| Length (Straight Wireway) | 2 in |
| Mounting Type | Panel, #6-32 Thread |
| Switch Type | Toggle |
| Length | 2 in |
| Package Quantity | 1 |
