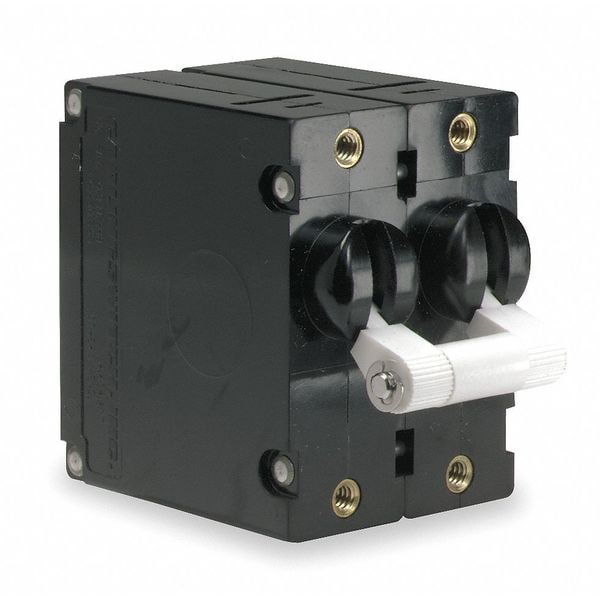

Circuit Breaker, C Series, 40A, 2 Pole, 240/277V AC, Not Rated, Medium Curve
| Item | Circuit Breaker |
|---|---|
| Series | C |
| Amps | 40A |
| Number of Poles | 2 |
| AC Voltage Rating | 240/277V AC |
| Circuit Breaker Type | Magnetic |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Threaded Insert |
| Max. AIR Rating | Not Rated |
| Trip Type | Series Trip |
| Terminal Connection | #10-32 Screw |
| Width | 1.52 in |
| Depth | 2.48 in |
| Height | 2-1/2 in |
| DC Voltage Rating | 125V DC |
| Curve Type | Medium |
| AIR @ 240VAC | Not Rated |
| AIR @ 65VDC | Not Rated |
| AIR @ 120VAC | Not Rated |
| Standards | CSA, UL |
| AIR @ 125VDC | Not Rated |
| Max. Wire Size | Not Specified |
| Actuator Legend | I/O, On/Off |
| Max. Operating Temp. | 185 deg F |
| Max. Panel Thickness | 0.1 in |
| Actuator Color | White |
| Mounting Hole Thread Size | #6-32 |
| Panel Cutout Size | 2.062 in x 1.52 in |
| Min. Operating Temp. | -40 deg F |
| Length (Straight Wireway) | 2-1/2 in |
| Length | 2-1/2 in |
| Mounting Type | Panel, #6-32 Thread |
| Switch Type | Toggle |
| Package Quantity | 1 |
