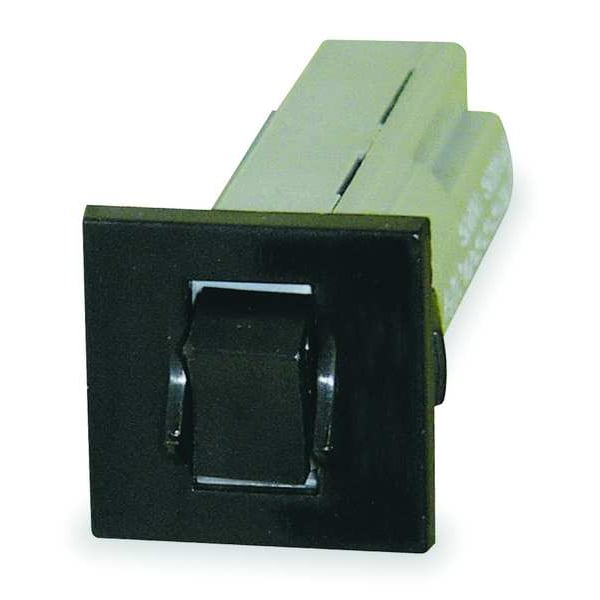

Circuit Breaker, CTB Series, 15A, 1 Pole, 125/250V AC, Not Rated, Medium Curve
| Item | Circuit Breaker |
|---|---|
| Series | CTB |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 125/250V AC |
| Circuit Breaker Type | Thermal |
| Phase | 1 |
| Circuit Breaker Actuator | Rocker |
| Circuit Breaker Mounting Style | Snap In |
| Max. AIR Rating | Not Rated |
| Trip Type | Thermal |
| Terminal Connection | 1/4 in Tab |
| Width | 0.76 in |
| Depth | 1.9 in |
| Height | 2.23 in |
| DC Voltage Rating | 50V DC |
| Curve Type | Medium |
| AIR @ 65VDC | Not Rated |
| Standards | CE, cUL, UL, VDE |
| AIR @ 125VDC | Not Rated |
| Max. Wire Size | 14 AWG |
| AIR @ 240VAC | 0.3 KA |
| AIR @ 120VAC | Not Rated |
| Actuator Legend | 15 Amp |
| Actuator Color | Black |
| Max. Panel Thickness | 0.062 in |
| Panel Cutout Size | 0.545 in x 0.63 in |
| Max. Operating Temp. | 140 deg F |
| Min. Operating Temp. | 32 deg F |
| Length (Straight Wireway) | 2.23 in |
| Switch Type | Rocker |
| Mounting Type | Snap-In Bezel |
| Length | 2.23 in |
| Package Quantity | 1 |
