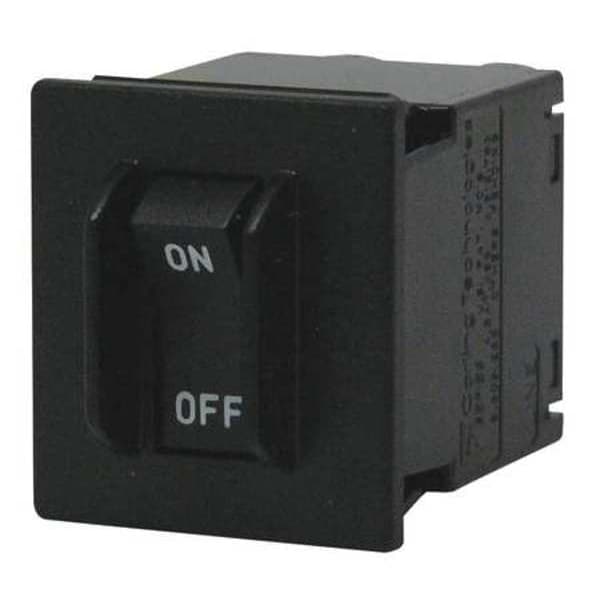

Circuit Breaker, M Series, 7.5A, 2 Pole, 250V AC, 1.5kA at 120V AC, Medium Curve
| CAD Available | Yes |
|---|---|
| Item | Circuit Breaker |
| Series | M |
| Amps | 7.5A |
| Number of Poles | 2 |
| AC Voltage Rating | 250V AC |
| Circuit Breaker Type | Magnetic |
| Phase | 1 |
| Circuit Breaker Actuator | Rocker |
| Circuit Breaker Mounting Style | Snap In |
| Max. AIR Rating | 1.5kA at 120V AC |
| Trip Type | Series Trip |
| Terminal Connection | 1/4 in Tab |
| Width | 1.39 in |
| Depth | 1.9 in |
| Height | 1.56 in |
| DC Voltage Rating | 32V DC |
| Curve Type | Medium |
| Standards | CSA, TUV, UL |
| AIR @ 120VAC | 1.5kA |
| AIR @ 65VDC | Not Rated |
| AIR @ 240VAC | 0.5 KA |
| Max. Wire Size | Not Specified |
| AIR @ 125VDC | Not Rated |
| Actuator Color | White |
| Max. Panel Thickness | 0.1 in |
| Min. Operating Temp. | -40 deg F |
| Max. Operating Temp. | 185 deg F |
| Panel Cutout Size | 1.139 in x 1.42 in |
| Actuator Legend | I/O, On/Off |
| Length (Straight Wireway) | 1.56 in |
| Mounting Type | Snap-in |
| Length | 1.56 in |
| Switch Type | Rocker |
| Package Quantity | 1 |
