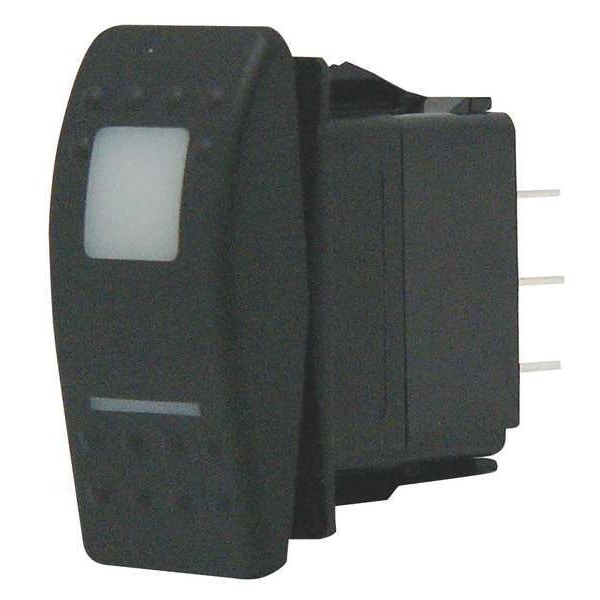

Interruptor Basculante Iluminado, DPDT (Doble Polo Doble Tirador), 7 Conexiones
| Item | Lighted Rocker Switch |
|---|---|
| Contact Form | DPDT |
| Number of Connections | 8 |
| Switch Function | On, On/Off |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 0.83 in x 1.45 in |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| DC Contact Rating | 20 A @ 12 V |
| HP | 1/2 hp |
| Body Color | Black |
| Switch Color | Red |
| Standards | CSA, UL Listed |
| Special Features | Lighted |
| Product Type | Rocker Switch |
| IP Rating | IP66, IP68 |
| Lamp Type | Incandescent |
| Terminal Connection Type | Quick-Connect Tab Terminals |
| Number of Positions | 3 |
| NEMA Enclosure Rating | No Enclosure |
| Operator Illumination | Illuminated |
| Mounting Hole Width | 0.83 in |
| Includes Lens | Lens Included |
| Features | Removable Actuator |
| Series | V |
| Horsepower | 1/2 hp @ 125 to 250 V |
| Lamp Voltage - Maximum | Not Applicable |
| Mounting Hole Length | 1.45 in |
| Operating Temperature - Minimum | -40 deg F |
| Lens Color | Red |
| Switch Function Configuration | On, On/Off |
| Includes Lamp Module | No Lamp Module Included |
| Operating Temperature - Maximum | 185 deg F |
| Lamp Module Type | No Lamp Module Included |
| Package Quantity | 1 |
