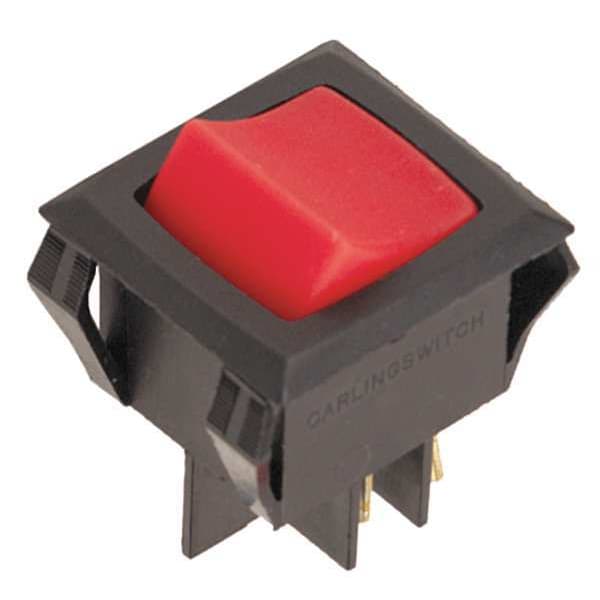

Interruptor Basculante Iluminado, DPST, 4 Conexiones
| Item | Lighted Rocker Switch |
|---|---|
| Contact Form | DPST |
| Number of Connections | 4 |
| Features | Silver Plated Butt-Action Contacts |
| Switch Function | ON/OFF |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 0.860 in x 1.070 in |
| AC Contact Rating | 15 A to 250 V, 20 A to 125 V |
| DC Contact Rating | Not Applicable |
| HP | 3/4 HP |
| Special Features | Light is On When Load is On, Red Neon |
| Body Color | Black |
| Switch Color | Red |
| Standards | CSA, UL Listed |
| IP Rating | Not Applicable |
| Product Type | Rocker Switch |
| Series | LRG |
| Lamp Type | Neon |
| Mounting Hole Length | 1.07 in |
| Lamp Module Type | No Lamp Module Included |
| Operating Temperature - Minimum | -40 deg F |
| Overall Height | 1.14 in |
| Includes Lens | No Lens Included |
| Mounting Hole Width | 0.87 in |
| NEMA Enclosure Rating | No Enclosure |
| Operator Illumination | Illuminated |
| Switch Function Configuration | On, Off |
| Terminal Connection Type | 0.25 in Quick Connect Tab |
| Operating Temperature - Maximum | 185 deg F |
| Lamp Voltage - Maximum | Not Applicable |
| Number of Positions | 2 |
| Horsepower | 3/4 hp @125 to 250V AC |
| Includes Lamp Module | No Lamp Module Included |
| Lens Color | Not Applicable |
| Package Quantity | 1 |
