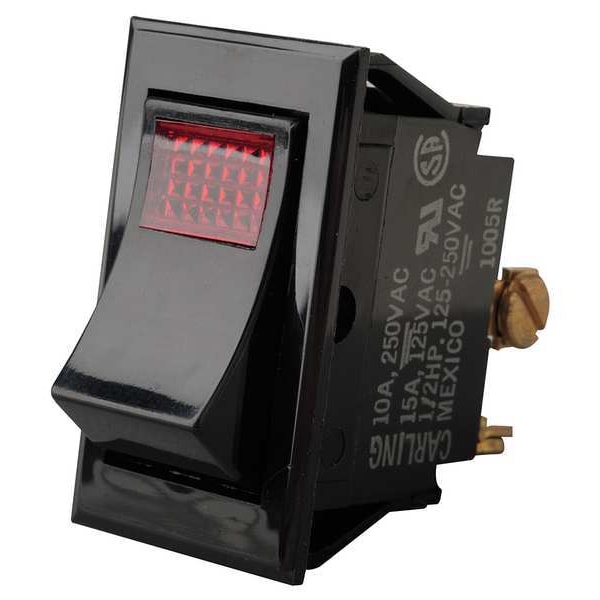

Interruptor Basculante Iluminado, SPST, 3 Conexiones
| Item | Lighted Rocker Switch |
|---|---|
| Contact Form | SPST |
| Number of Connections | 3 |
| Switch Function | ON/OFF |
| Terminals | Screw |
| Mounting Hole | 0.830 in x 1.450 in |
| AC Contact Rating | 10 A to 250 V, 15 A to 125 V |
| DC Contact Rating | 15 A @ 15 to 28 V |
| HP | 3/4 HP |
| Special Features | Red Neon |
| Switch Color | Red |
| Body Color | Black |
| IP Rating | Not Applicable |
| Standards | CSA, UL Listed |
| Product Type | Rocker Switch |
| Series | LTIL |
| Number of Positions | 2 |
| NEMA Enclosure Rating | No Enclosure |
| Terminal Connection Type | Terminals |
| Lamp Module Type | No Lamp Module Included |
| Lamp Voltage - Maximum | Not Applicable |
| Horsepower | 3/4 hp @125 to 250V AC |
| Includes Lamp Module | No Lamp Module Included |
| Switch Function Configuration | On/Off |
| Mounting Hole Length | 1.45 in |
| Operating Temperature - Maximum | 185 deg F |
| Lamp Type | Neon |
| Operator Illumination | Illuminated |
| Lens Color | Red |
| Includes Lens | Lens Included |
| Mounting Hole Width | 0.83 in |
| Package Quantity | 1 |
