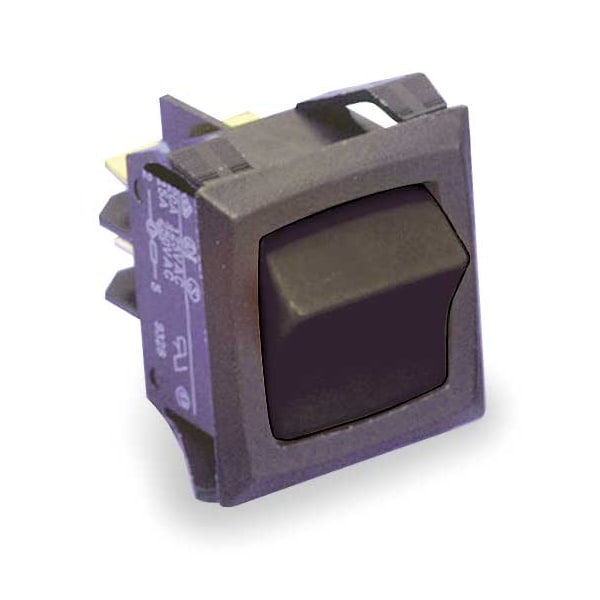

Interruptor basculante, SPST, 2 conexiones
| Item | Rocker Switch |
|---|---|
| Contact Form | SPST |
| Number of Connections | 2 |
| Switch Function | ON/OFF |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 0.860 in x 1.070 in |
| AC Contact Rating | 15 A to 250 V, 20 A to 125 V |
| DC Contact Rating | Not Applicable |
| HP | 3/4 HP |
| Body Color | Black |
| Switch Color | Black |
| IP Rating | Not Applicable |
| Standards | CSA, UL Listed |
| Series | RG |
| Product Type | Rocker Switch |
| Terminal Connection Type | 0.25 in Quick Connect Tab |
| Mounting Hole Width | 0.86 in |
| Operator Illumination | Non-Illuminated |
| NEMA Enclosure Rating | No Enclosure |
| Includes Lens | No Lens Included |
| Horsepower | 3/4 hp |
| Mounting Hole Length | 1.07 in |
| Includes Lamp Module | No Lamp Module Included |
| Lamp Module Type | No Lamp Module Included |
| Lamp Voltage - Maximum | Not Applicable |
| Switch Function Configuration | On, Off |
| Lamp Type | No Lamp Module Included |
| Number of Positions | 2 |
| Lens Color | Not Applicable |
| Package Quantity | 1 |
