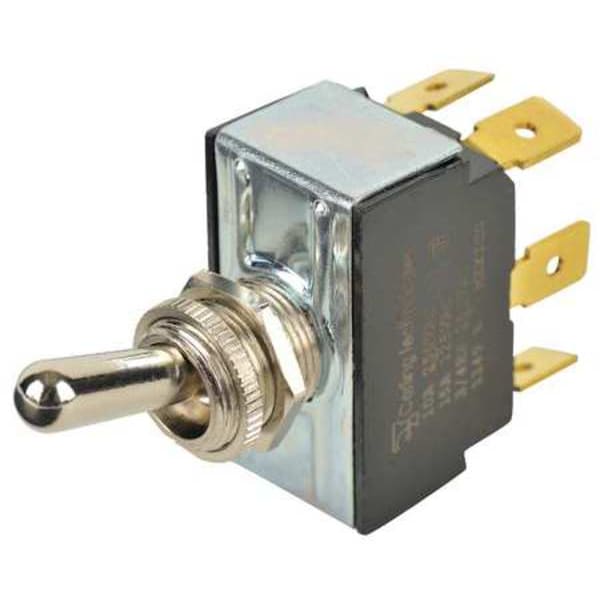

Interruptor basculante, DPDT, 6 conexiones, Encendido/Encendido, 3/4 hp, 10A @ 250V CA, 15A @ 125V CA.
| Switch Function | On |
|---|---|
| Contact Form | DPDT |
| HP | 3/4 hp |
| Actuator Style | Bat |
| Amps | 10A @ 250VAC, 15A @ 125VAC |
| Number of Connections | 6 |
| Stem Length | 0.47 in |
| Terminals | Tab |
| Actuator Length | 0.68 in |
| Item | Toggle Switch |
| Mounting Hole | 1/2 in dia |
| Operating Temp. Range | 32 to 185 deg F |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| Stem Dia. and Thread Size | 15/32-32 UNS-2A x 0.5 in dia |
| IP Rating | Not Rated |
| DC Contact Rating | Not Rated |
| Includes | Hex Nut, Ring Nut |
| Product Type | Toggle Switch |
| Series | G |
| Actuator Material | Metal |
| Number of Positions | 2 |
| Overall Width | 3/4 in |
| Terminal Connection Type | Quick Connect Tab |
| Operating Temperature - Maximum | 185 deg F |
| Switch Function Configuration | On, None |
| Stem Diameter | 1/2 in |
| Operator Illumination Style | Non-Illuminated |
| Operating Temperature - Minimum | 32 deg F |
| Resistance Properties | Not Applicable |
| Overall Height | 1.57 in |
| Base Type | Not Applicable |
| Horsepower | 3/4 hp |
| Number of Poles | 2 |
| Stem Thread Size | 6-32 NC-2 |
| Overall Depth | 1.31 in |
| Features | Not Sealed |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Diameter | 1/2 in |
| Package Quantity | 1 |
