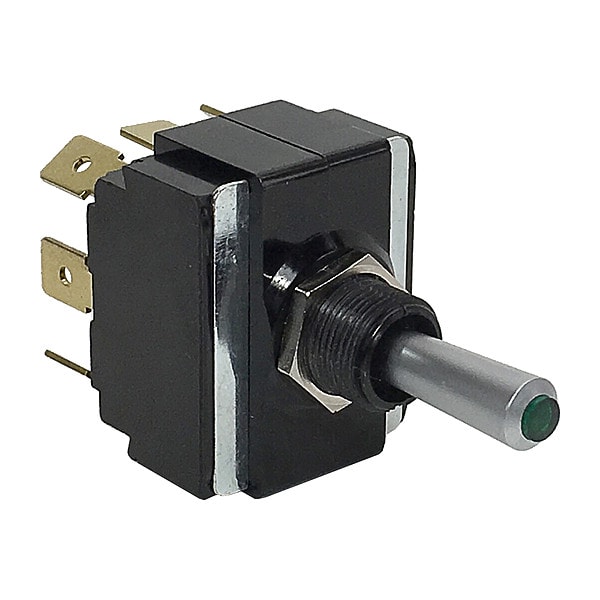

Interruptor de Palanca, DPDT, 8 Conexiones, Encendido/Apagado/Encendido, 3/4 hp, 20A @ 12V
| Switch Function | On, On/Off |
|---|---|
| Contact Form | DPDT |
| HP | 3/4 hp |
| Actuator Style | Snapkap |
| Amps | 10A @ 250VAC, 15A @ 125VAC, 15A @ 12 to 28VDC |
| Number of Connections | 8 |
| Stem Length | 0.38 in |
| Terminals | Quick Connect |
| Actuator Length | 0.71 in |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| Standards | CSA, UL Listed |
| Mounting Hole | 1/2 in dia |
| Item | Toggle Switch |
| Special Features | Green, Lighted, Seal In Bushing |
| DC Contact Rating | 15 A @ 12-28 V |
| Stem Dia. and Thread Size | 0.406 in |
| Stem Color | Silver |
| IP Rating | Not Rated |
| Product Type | Toggle Switch |
| Series | LT |
| Operating Temperature - Maximum | 185 deg F |
| Switch Function Configuration | On, On/Off |
| Horsepower | 3/4 hp |
| Overall Height | 1.88 in |
| NEMA Enclosure Rating | No Enclosure |
| Actuator Material | Metal |
| Operator Illumination Style | Illuminated Actuator |
| Number of Poles | 2 |
| Features | Green, Seal In Bushing |
| Overall Width | 1.08 in |
| Operating Temperature - Minimum | 32 deg F |
| Stem Thread Size | 15/32-32 UNS-2A |
| Terminal Connection Type | Quick Connect Tab |
| Resistance Properties | Not Applicable |
| Mounting Hole Diameter | 1/2 in |
| Base Type | Not Applicable |
| Stem Diameter | 0.41 in |
| Number of Positions | 3 |
| Overall Depth | 1.38 in |
| Package Quantity | 1 |
