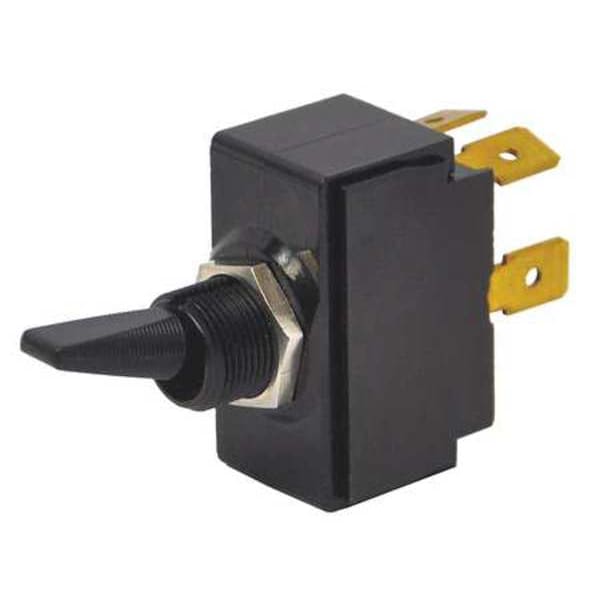

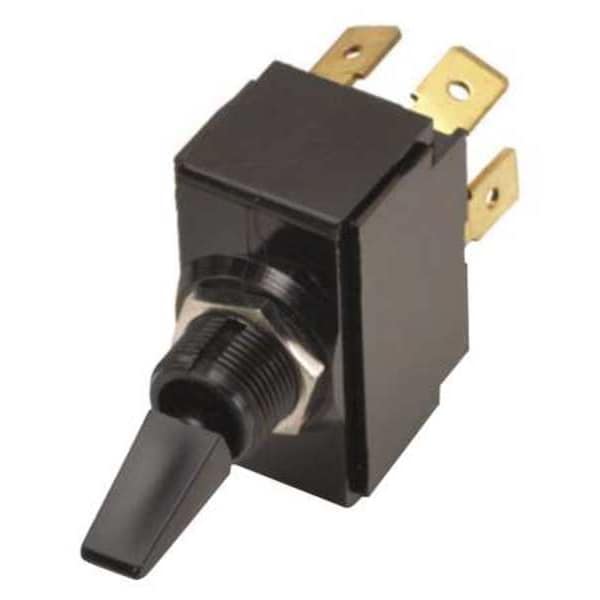

Interruptor de palanca, DPST, 4 conexiones, Encendido/Apagado, 1 1/2 hp, 10A @ 250V CA, 20A @ 125V CA.
| Switch Function | On/Off |
|---|---|
| Contact Form | DPST |
| HP | 1 1/2 hp |
| Number of Connections | 4 |
| Stem Length | 0.38 in |
| Terminals | Quick Connect |
| Actuator Length | 0.69 in |
| Stem Dia. and Thread Size | 0.406 in |
| Stem Color | Black |
| Mounting Hole | 1/2 in dia |
| Item | Toggle Switch |
| AC Contact Rating | 20 A @ 125 to 277 V |
| Special Features | Seal In Bushing |
| Standards | CSA, UL Listed |
| DC Contact Rating | Not Rated |
| IP Rating | Not Rated |
| Includes | Hex Nut, Ring Nut |
| Product Type | Toggle Switch |
| Series | G |
| Mounting Hole Diameter | 1/2 in |
| Operator Illumination Style | Non-Illuminated |
| Terminal Connection Type | Quick Connect Tab |
| Resistance Properties | Not Applicable |
| Stem Diameter | 0.41 in |
| NEMA Enclosure Rating | No Enclosure |
| Number of Positions | 3 |
| Features | Seal In Bushing |
| Number of Poles | 2 |
| Horsepower | 1 1/2 hp, 2 hp |
| Switch Function Configuration | On, None, Off |
| Manufacturer Warranty Length | 2 yr |
| Base Type | Not Applicable |
| Package Quantity | 1 |
