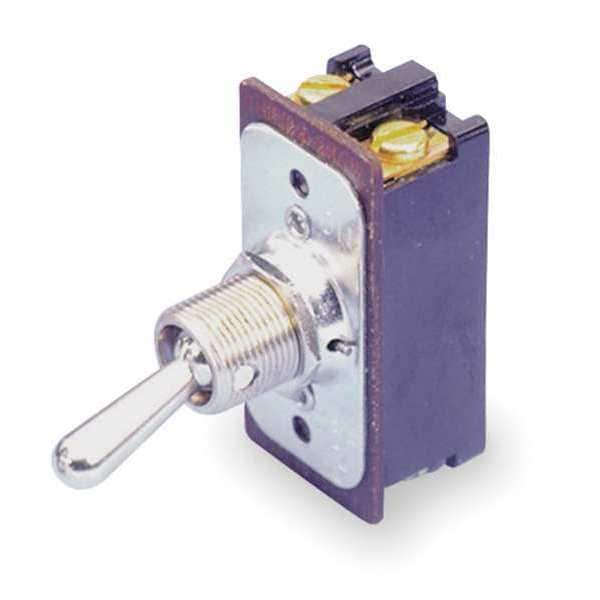

Interruptor de Palanca, DPST, 4 Conexiones, Encendido/Apagado, 1 hp, 16A @ 125V AC, 8A @ 250V AC
| Switch Function | On/Off |
|---|---|
| Contact Form | DPST |
| HP | 1 hp |
| Actuator Style | Bat |
| Amps | 8A @ 250V, 16A @ 125V |
| Number of Connections | 4 |
| Stem Length | 0.47 in |
| Terminals | Screw |
| Actuator Length | 0.68 in |
| Mounting Hole | 1/2 in dia |
| Item | Toggle Switch |
| AC Contact Rating | 16 A @ 125 V, 8 A @ 250 V |
| Operating Temp. Range | 0 to 150 deg F |
| Stem Dia. and Thread Size | 15/32-32 UNS-2A x 0.5 in dia |
| IP Rating | Not Rated |
| DC Contact Rating | 16 A @ 125 V, 8 A @ 250 V |
| Product Type | Toggle Switch |
| Series | DK/EK |
| Features | Not Sealed |
| Terminal Connection Type | Screw Terminals |
| Switch Function Configuration | On, None, Off |
| Operating Temperature - Minimum | 0 deg F |
| Stem Diameter | 1/2 in |
| Operator Illumination Style | Non-Illuminated |
| Actuator Material | Metal |
| Operating Temperature - Maximum | 150 deg F |
| Base Type | Not Applicable |
| Overall Width | 0.83 in |
| Overall Height | 1.91 in |
| Number of Poles | 2 |
| Resistance Properties | Not Applicable |
| Mounting Hole Diameter | 1/2 in |
| Horsepower | 1 hp |
| Overall Depth | 1.76 in |
| NEMA Enclosure Rating | No Enclosure |
| Number of Positions | 2 |
| Stem Thread Size | 6-32 NC-2 |
| Package Quantity | 1 |
