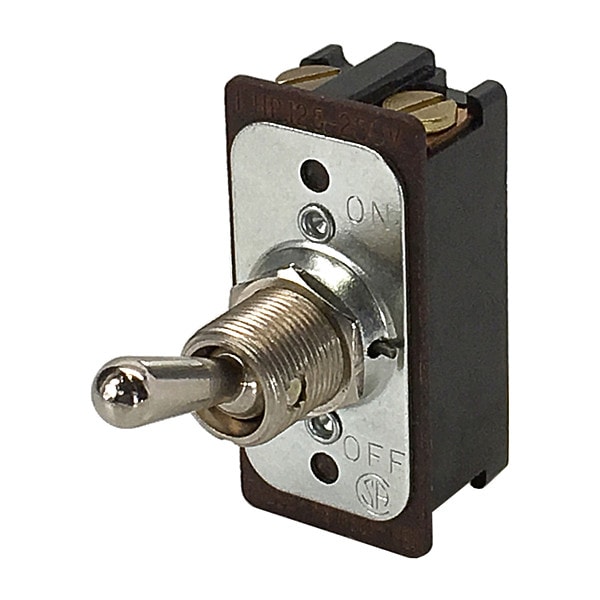

Interruptor de palanca, DPST, 4 conexiones, Encendido/Apagado, 10A @ 250V CA/20A @ 125V CA, Terminal de tornillo.
| Switch Function | On/Off |
|---|---|
| Contact Form | DPST |
| HP | 1 1/2 hp |
| Actuator Style | Bat |
| Amps | 10A @ 250V, 20A @ 125V |
| Number of Connections | 4 |
| Stem Length | 0.47 in |
| Terminals | Screw |
| Actuator Length | 0.68 in |
| Operating Temp. Range | 0 to 150 deg F |
| Mounting Hole | 1/2 in dia |
| Stem Dia. and Thread Size | 0.470 in |
| AC Contact Rating | 10 A @ 250 V, 20 A @ 125 V |
| Item | Toggle Switch |
| IP Rating | Not Rated |
| DC Contact Rating | 10 A @ 250 V, 20 A @ 125 V |
| Product Type | Toggle Switch |
| Series | DK/EK |
| Actuator Material | Metal |
| Resistance Properties | Not Applicable |
| Operating Temperature - Minimum | 0 deg F |
| Overall Height | 2.04 in |
| NEMA Enclosure Rating | No Enclosure |
| Base Type | Not Applicable |
| Stem Thread Size | 6-32 NC-2 |
| Number of Positions | 3 |
| Features | Not Sealed |
| Switch Function Configuration | On, None, Off |
| Overall Depth | 2.09 in |
| Operating Temperature - Maximum | 150 deg F |
| Stem Diameter | 0.47 in |
| Number of Poles | 2 |
| Terminal Connection Type | Screw Terminals |
| Operator Illumination Style | Non-Illuminated |
| Horsepower | 1 hp |
| Overall Width | 1 in |
| Mounting Hole Diameter | 1/2 in |
| Package Quantity | 1 |
