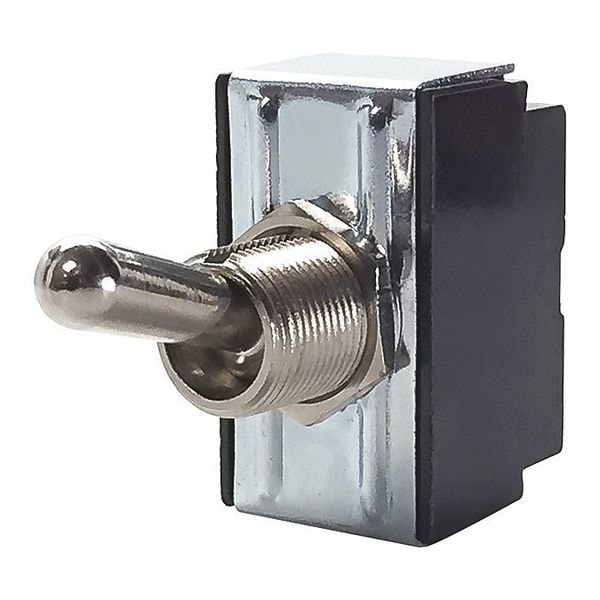

Interruptor de palanca, SPDT, 4 conexiones, Circuito 1 Encendido, Circuitos 1 y 2 Encendidos, Apagado, 3/4 hp, 10A @ 250V CA.
| Switch Function | Circuit 1 On, Circuit 1&2 On, Off |
|---|---|
| Contact Form | SPDT |
| HP | 3/4 hp |
| Number of Connections | 4 |
| Stem Length | 0.47 in |
| Terminals | Quick Connect |
| Actuator Length | 0.69 in |
| Stem Color | Silver |
| Item | Toggle Switch |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| Standards | CSA, UL Listed |
| Mounting Hole | 1/2 in dia |
| Stem Dia. and Thread Size | 0.406 in |
| Special Features | Seal In Bushing |
| DC Contact Rating | Not Rated |
| IP Rating | Not Rated |
| Includes | Hex Nut, Ring Nut |
| Product Type | Toggle Switch |
| Series | G |
| Resistance Properties | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Number of Poles | 1 |
| Terminal Connection Type | Quick Connect Tab |
| Horsepower | 3/4 hp |
| Switch Function Configuration | Off, On/On |
| Stem Diameter | 0.41 in |
| Base Type | Not Applicable |
| Mounting Hole Diameter | 1/2 in |
| Features | Not Sealed |
| Actuator Material | Metal |
| Number of Positions | 3 |
| Operator Illumination Style | Non-Illuminated |
| Package Quantity | 1 |
