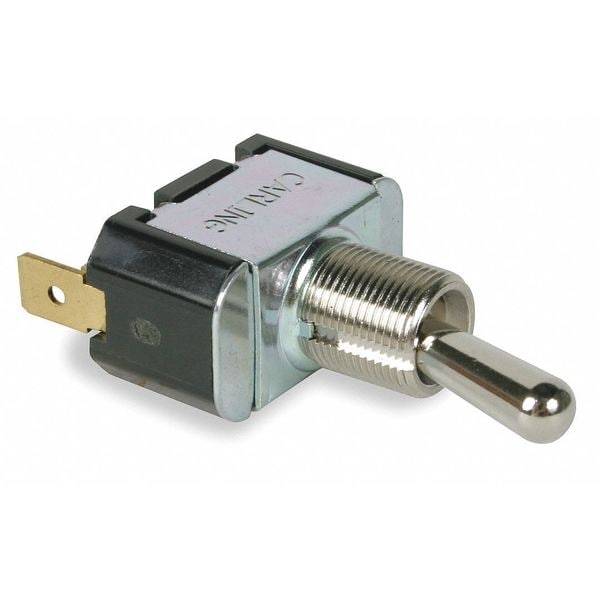

Interruptor de palanca, SPST, 2 conexiones, Apagado/Encendido, 1 hp, 10A @ 250V AC, 15A @ 125V AC
| Switch Function | On, Off |
|---|---|
| Contact Form | SPST |
| HP | 1 hp |
| Number of Connections | 2 |
| Stem Length | 0.47 in |
| Terminals | Quick Connect |
| Actuator Length | 0.68 in |
| Item | Toggle Switch |
| Standards | CSA, UL Listed |
| Stem Dia. and Thread Size | 0.406 in |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| Stem Color | Silver |
| Special Features | Unseal Bushing |
| Mounting Hole | 1/2 in dia |
| IP Rating | Not Rated |
| Includes | Hex Nut, Ring Nut |
| DC Contact Rating | Not Rated |
| Product Type | Toggle Switch |
| Series | F |
| Number of Positions | 2 |
| Stem Diameter | 0.41 in |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Diameter | 1/2 in |
| Base Type | Not Applicable |
| Operator Illumination Style | Non-Illuminated |
| Terminal Connection Type | Quick Connect Tab |
| Resistance Properties | Not Applicable |
| Switch Function Configuration | On/Off |
| Number of Poles | 1 |
| Features | Unseal In Bushing |
| Horsepower | 1 hp |
| Package Quantity | 1 |
