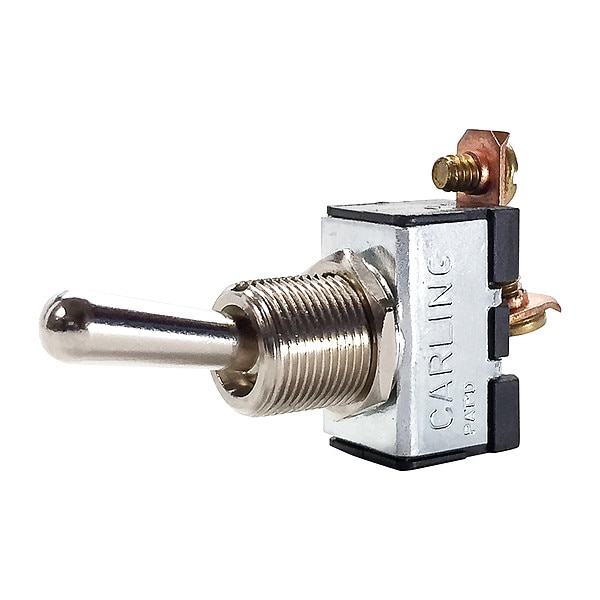

Interruptor basculante, SPST, 2 conexiones, Encendido/Apagado, 1 1/2 hp, 10A @ 250V AC, 20A @ 125V AC.
| Switch Function | On/Off |
|---|---|
| Contact Form | SPST |
| HP | 1 1/2 hp |
| Actuator Style | Bat |
| Amps | 10A @ 250VAC, 15A @ 125VAC |
| Number of Connections | 2 |
| Stem Length | 0.47 in |
| Terminals | Tab |
| Actuator Length | 0.69 in |
| Item | Toggle Switch |
| AC Contact Rating | 20 A @ 125 V, 20 A @ 250 V |
| Special Features | Unseal In Bushing |
| Mounting Hole | 1/2 in dia |
| Standards | CSA, UL Listed |
| Stem Dia. and Thread Size | 0.406 in |
| Stem Color | Silver |
| IP Rating | Not Rated |
| DC Contact Rating | Not Rated |
| Product Type | Toggle Switch |
| Series | C |
| Base Type | Not Applicable |
| Number of Positions | 3 |
| Operator Illumination Style | Non-Illuminated |
| Switch Function Configuration | On, None, Off |
| Horsepower | 1 1/2 hp |
| Operating Temperature - Minimum | 32 deg F |
| Overall Width | 0.52 in |
| Number of Poles | 1 |
| Mounting Hole Diameter | 1/2 in |
| Overall Depth | 0.88 in |
| Resistance Properties | Not Applicable |
| Overall Height | 2.04 in |
| Actuator Material | Metal |
| Stem Diameter | 0.41 in |
| Stem Thread Size | 6-32 NC-2 |
| NEMA Enclosure Rating | No Enclosure |
| Operating Temperature - Maximum | 185 deg F |
| Terminal Connection Type | Quick Connect Tab |
| Features | Unseal In Bushing |
| Package Quantity | 1 |
