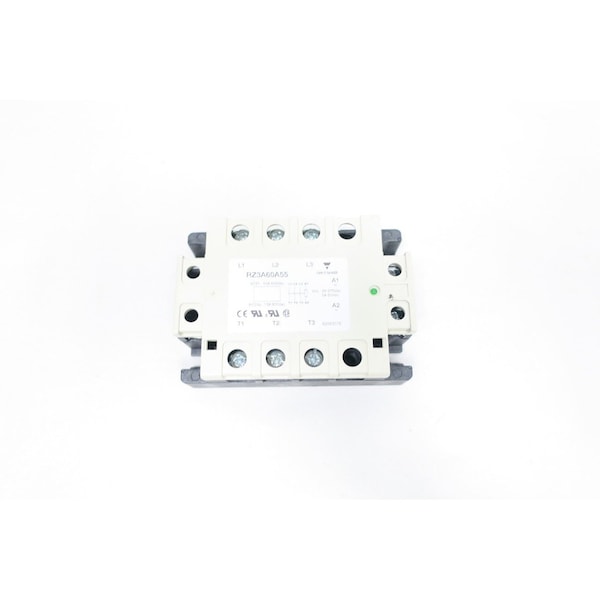

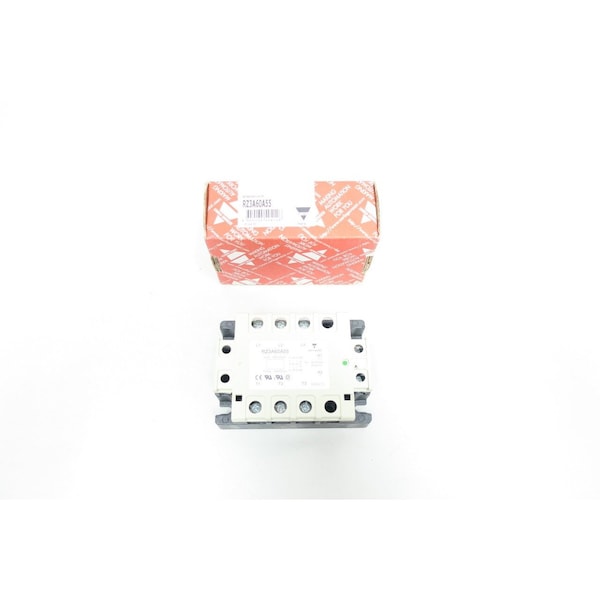

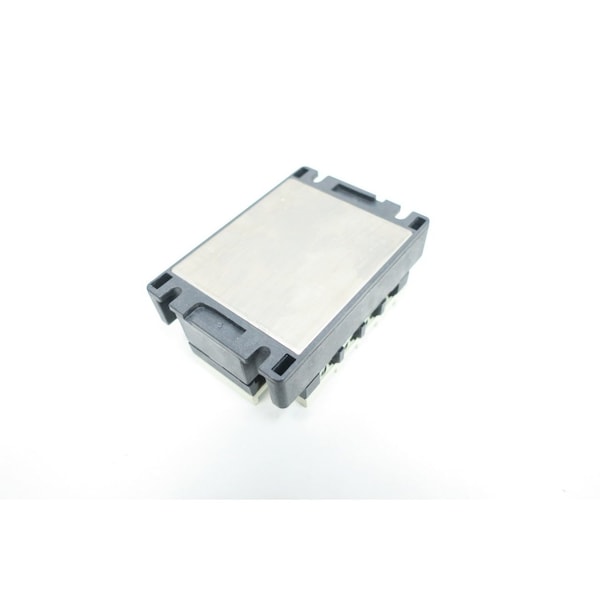

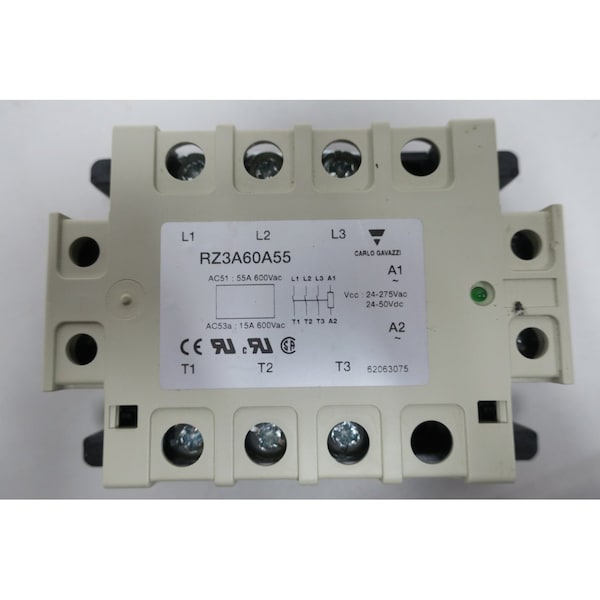

Relevador de estado sólido de 55A 600V-Ac, 24-275V-Ac y 24-50V-Dc.
| Output switching mode | Zero cross |
|---|---|
| Soft start switching | No |
| Power connection | Screw with captive clamp |
| Switching at zero-crossing | Yes |
| Rated current AC-53a | 15 |
| Proportional switching | No |
| Control voltage AC | Min.24-Max.275 |
| Peak switching | No |
| Number of poles | 3 |
| Type of output | AC |
| Instant On switching | No |
| Control voltage DC | Min.24-Max.50 |
| Zero switching | Yes |
| Wall mounting/direct mounting | Yes |
| DC switching | No |
| Operating voltage | Min.42-Max.660 |
| Rated current AC-51 | 55 |
| Rated Current Category | 51-75 A |
| Function | Solid state relay |
| Voltage type for actuating | DC, AC |
| Rated control supply voltage Us at AC 60HZ | Min.24-Max.275 |
| Rated Output Voltage | 600 |
| Modular version | No |
| Typology | Panel mount |
| Control type | AC, DC |
| With approval according to UL | Yes |
| Input Voltage (AC) | 24 V-AC |
| Output Current | 55 A AMP |
| Input Voltage (DC) | 24 V-DC |
| Output Voltage (AC) | 600 V-AC |
| Package Quantity | 1 |
