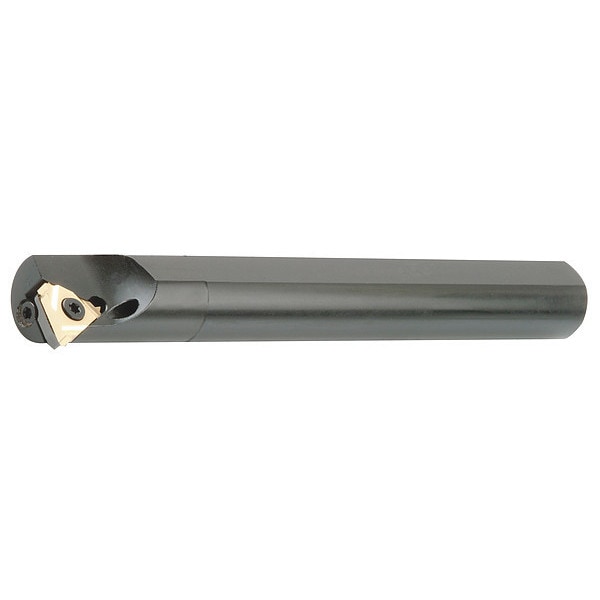

Indexable Thread Turning Tool Holder, SIR 0265 K08, 5 in L, High Speed Steel, - Insert Shape
| Item | Indexable Thread Turning Tool Holder |
|---|---|
| Overall Length | 5 in |
| Shank Material | High Speed Steel |
| ANSI Code | SIR 0265 K08 |
| Nomenclature | SIR0265K08 |
| Type | Thread Turning |
| Insert Screw | S08 |
| Torx Wrench | K08 |
| Shank | 5/8 |
| Nose Radius (In.) | 0.7 |
| For Use With | 06 IR Inserts |
| Overall Length (In.) | 5 |
| Left/Right Hand | Right Hand |
| Cutting Direction | Right Hand |
| Shank Dia. | 5/8 in |
| ISO Number | SIR 0265 K08 |
| Insert Inscribed Circle | 3/16 in |
| Compatible Hardware | Key K08, Screw S08 |
| Cutting Application | Thread Turning |
| Insert Cutting Edge Length | 8 mm |
| Toolholder Style | SIR |
| Center to Cutting Tip | 0.21 in |
| Max. Bore Depth | 0.7 in |
| Min. Bore Dia. | 0.31 in |
| Package Quantity | 1 |
