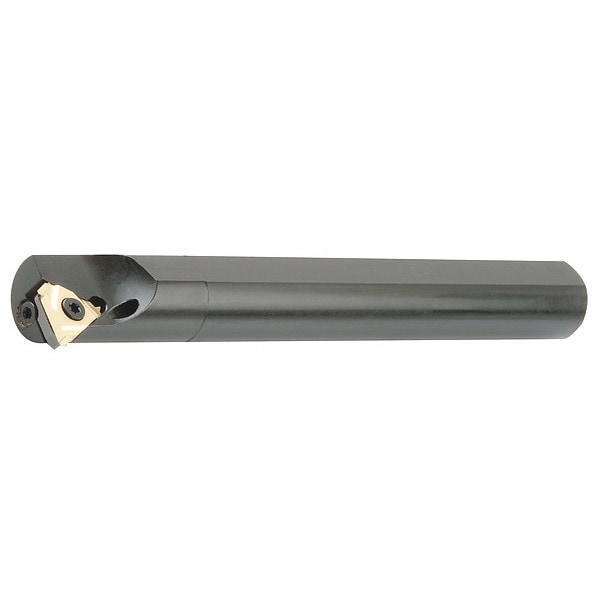

Indexable Thread Turning Tool Holder, SIR 0500 L11, 5-1/2 in L, High Speed Steel, - Insert Shape
| Item | Indexable Thread Turning Tool Holder |
|---|---|
| Overall Length | 5-1/2 in |
| Shank Material | High Speed Steel |
| ANSI Code | SIR 0500 L11 |
| Left/Right Hand | Right Hand |
| Overall Length (In.) | 5-1/2 |
| For Use With | 11 IR Inserts |
| Type | Thread Turning |
| Nomenclature | SIR0500L11 |
| Shank | 5/8 |
| Torx Wrench | K11 |
| Insert Screw | S11 |
| Nose Radius (In.) | 1-1/4 |
| Shank Dia. | 5/8 in |
| Cutting Direction | Right Hand |
| ISO Number | SIR 0500 L11 |
| Insert Cutting Edge Length | 11 mm |
| Cutting Application | Thread Turning |
| Toolholder Style | SIR |
| Insert Inscribed Circle | 1/4 in |
| Compatible Hardware | Key K11, Screw S11 |
| Center to Cutting Tip | 0.34 in |
| Max. Bore Depth | 1-1/4 in |
| Min. Bore Dia. | 0.58 in |
| Package Quantity | 1 |
