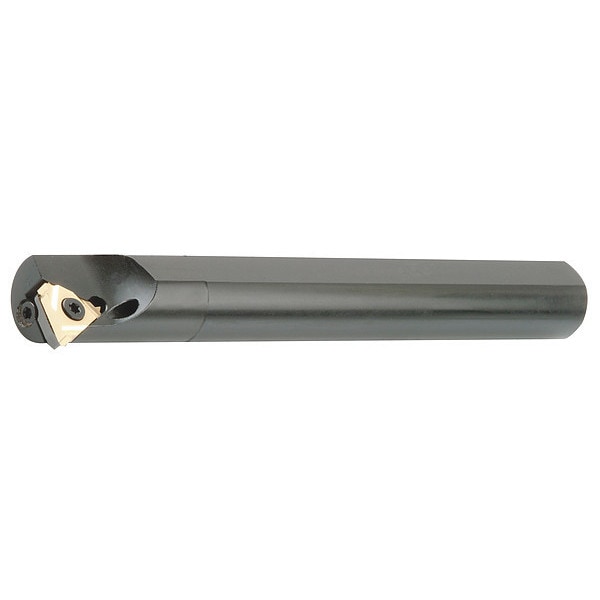

Indexable Thread Turning Tool Holder, SIR 0625 P16, 7 in L, High Speed Steel, - Insert Shape
| Item | Indexable Thread Turning Tool Holder |
|---|---|
| Overall Length | 7 in |
| Shank Material | High Speed Steel |
| ANSI Code | SIR 0625 P16 |
| Type | Thread Turning |
| Insert Screw | S16 |
| Overall Length (In.) | 7 |
| Left/Right Hand | Right Hand |
| Torx Wrench | K16 |
| Nomenclature | SIR0625P16 |
| Nose Radius (In.) | 1.57 |
| For Use With | 16 IR Inserts |
| Shank | 3/4 |
| Cutting Direction | Right Hand |
| Shank Dia. | 3/4 in |
| Insert Cutting Edge Length | 16 mm |
| Insert Inscribed Circle | 3/8 in |
| Cutting Application | Thread Turning |
| Toolholder Style | SIR |
| Compatible Hardware | Key K16, Screw S16 |
| ISO Number | SIR 0625 P16 |
| Max. Bore Depth | 1.57 in |
| Center to Cutting Tip | 0.45 in |
| Min. Bore Dia. | 3/4 in |
| Package Quantity | 1 |
