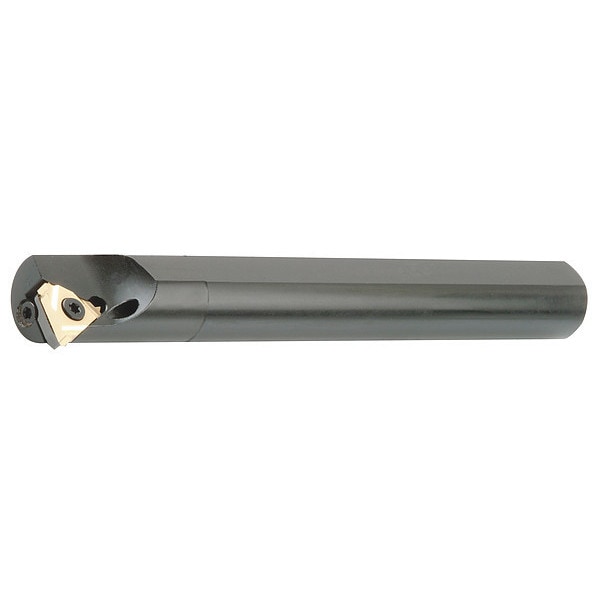

Indexable Thread Turning Tool Holder, SIR 1250 S16, 10 in L, High Speed Steel, - Insert Shape
| Item | Indexable Thread Turning Tool Holder |
|---|---|
| Overall Length | 10 in |
| Shank Material | High Speed Steel |
| ANSI Code | SIR 1250 S16 |
| For Use With | 16 IR Inserts |
| Shim | AI16 |
| Nomenclature | SIR1250S16 |
| Overall Length (In.) | 10 |
| Shim Screw | A16 |
| Torx Wrench | K16 |
| Insert Screw | S16 |
| Left/Right Hand | Right Hand |
| Type | Thread Turning |
| Shank | 1-1/4 |
| Shank Dia. | 1-1/4 in |
| Cutting Direction | Right Hand |
| Insert Cutting Edge Length | 16 mm |
| Compatible Hardware | Anvil Screw A16, Key K16 |
| Toolholder Style | SIR |
| ISO Number | SIR 1250 S16 |
| Insert Inscribed Circle | 3/8 in |
| Cutting Application | Thread Turning |
| Center to Cutting Tip | 0.77 in |
| Min. Bore Dia. | 1.4 in |
| Package Quantity | 1 |
