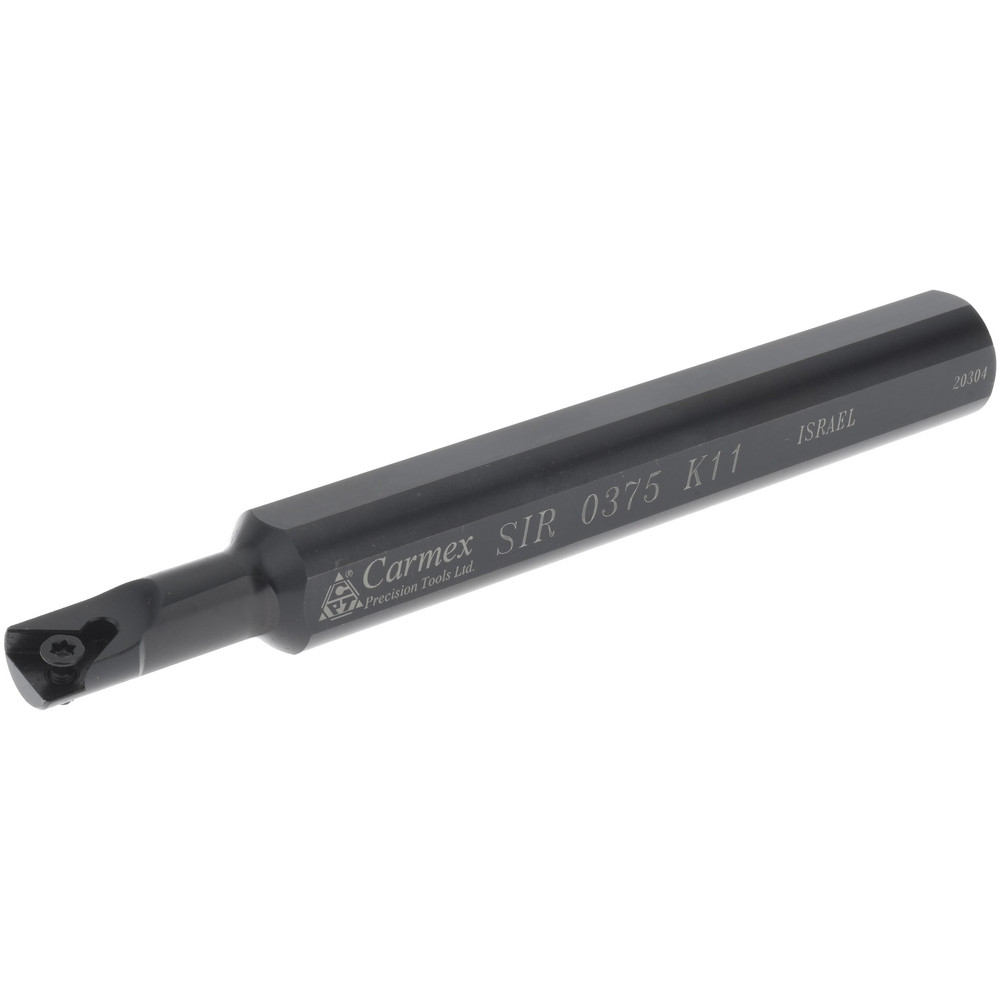

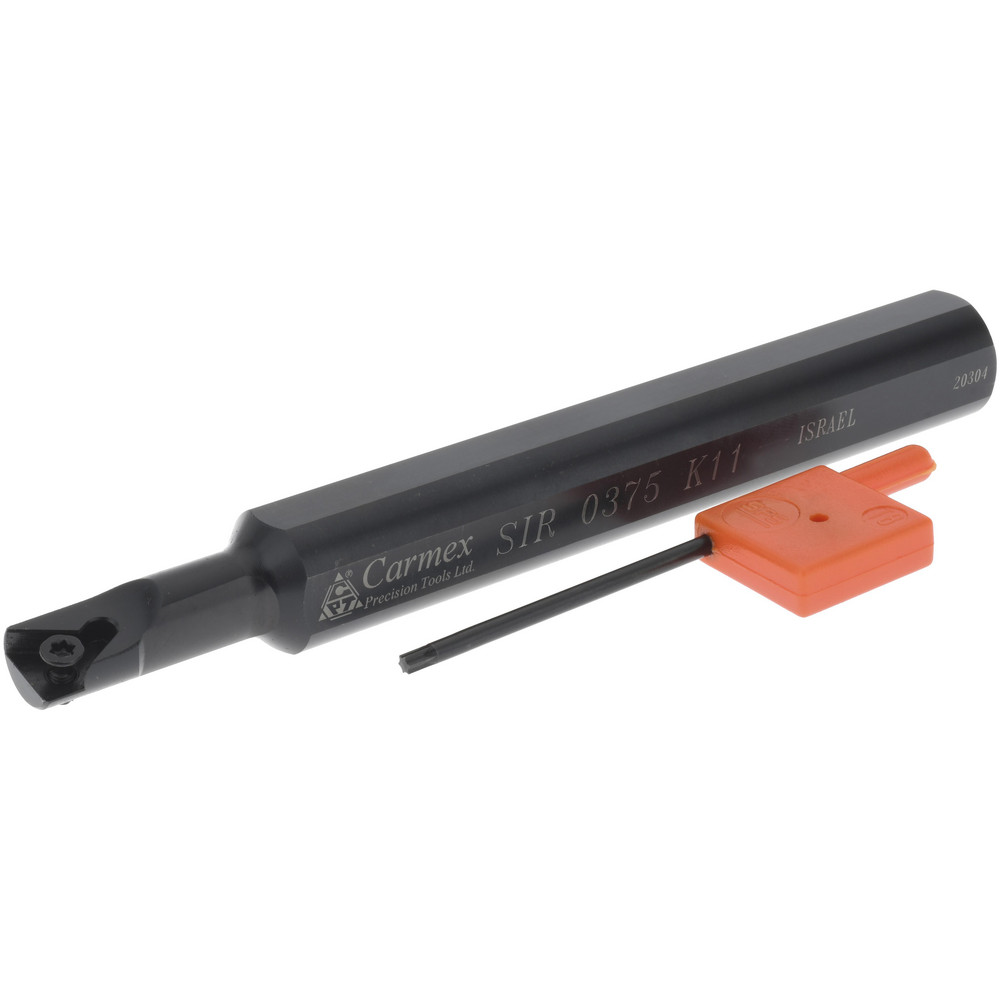

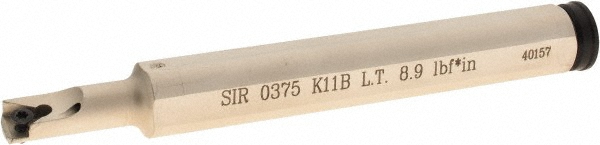

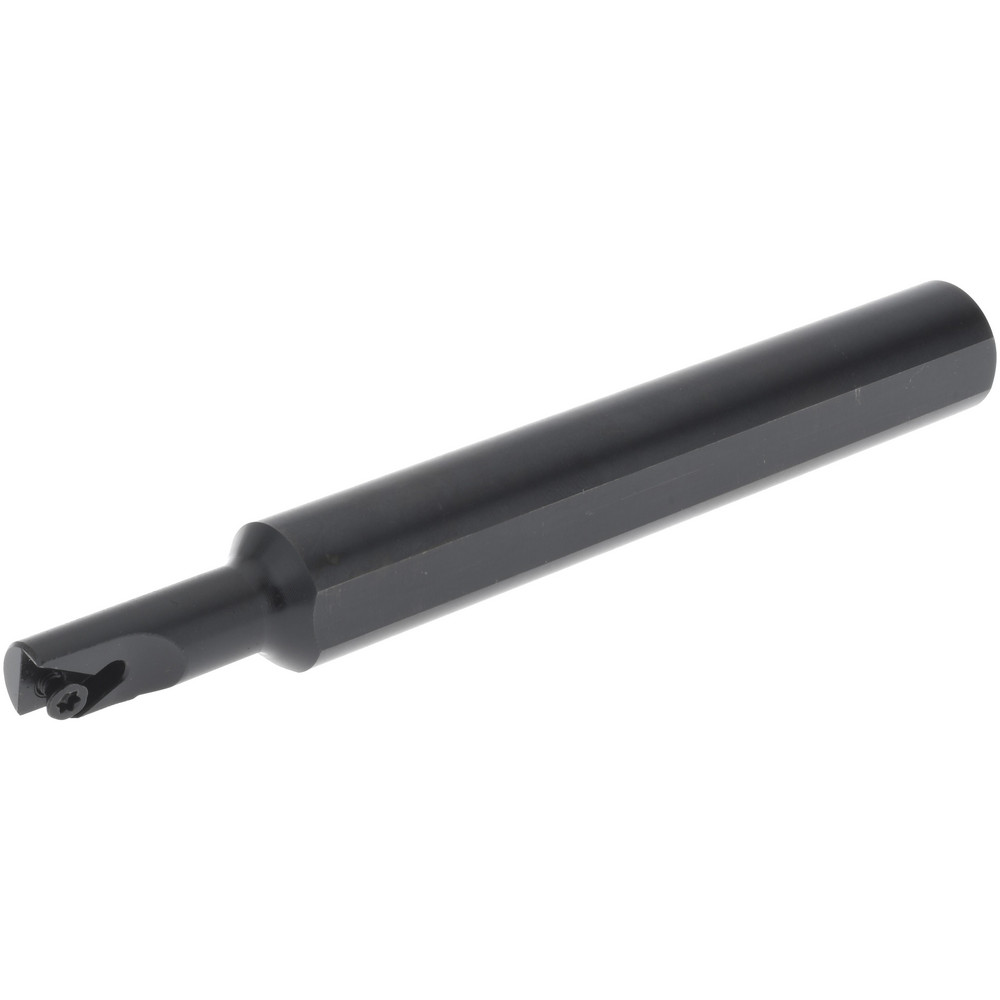

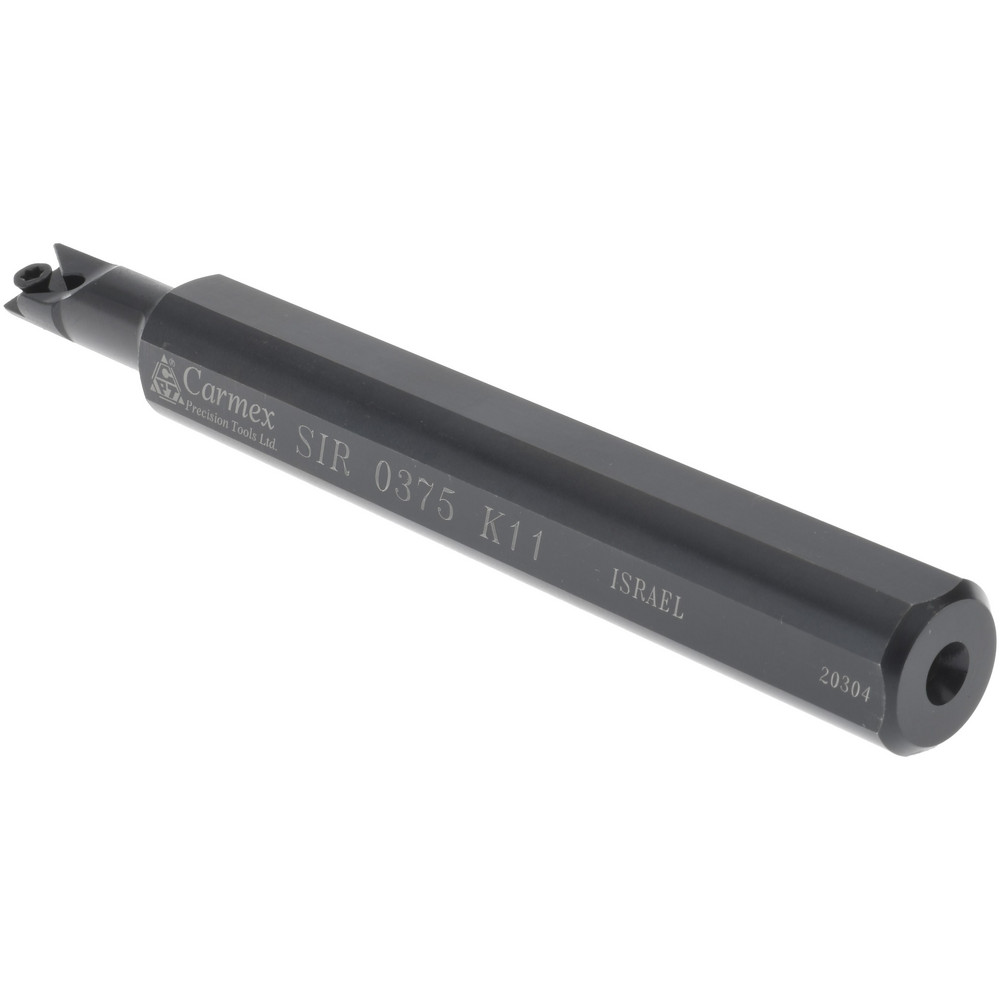

0.47" Min Bore Dia, 1/4" Insert Inscribed Circle
| Thread Type | Internal |
|---|---|
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Toolholder Style | SI |
| Insert Compatibility | 11IR |
| Coolant Entry Style Code | 0 - Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Minimum Bore Diameter (Decimal Inch) | 0.4700 |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2800 |
| Center to Cutting Edge (Decimal Inch) | 0.2800 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Neck Diameter (Decimal Inch) | 0.3800 |
| UNSPSC Code | 23291800 |
| Distance Across Flats | 0.5670 |

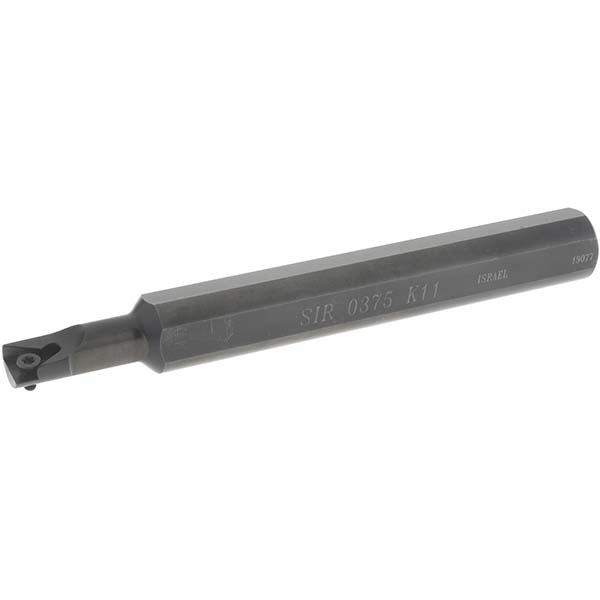

| Style | SIR 0375 K11 |
| Coolant Through | No |
| F -In-- | 0.2800 |
| Series | SIR |
| Country of Origin | Israel |
