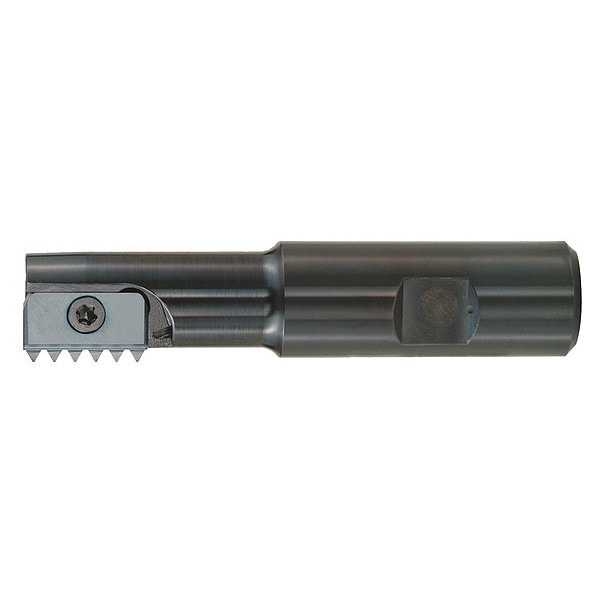

Thread Mill Toolholder, SR 0500 F14, 74.93mm L, - Insert Shape
| Item | Thread Mill Toolholder |
|---|---|
| Overall Length | 74.93 mm |
| ANSI Code | SR 0500 F14 |
| Shank | 0.75 |
| Left/Right Hand | Right or Left Hand |
| Neck Dia. (In.) | 0.37 |
| Torx Wrench | K14 |
| Overall Length (In.) | 2.95 |
| Nose Radius (In.) | 0.7 |
| Type | Single Insert |
| Swing (In.) | 1/2 |
| Nomenclature | SR0500F14 |
| Insert Screw | S14 |
| For Use With | 14 Series Threadmilling Inserts |
| Cutting Direction | Neutral |
| Shank Dia. | 3/4 in |
| Neck Dia. | 9.4 mm |
| Toolholder Style | SR |
| Coolant Fed | Coolant Through |
| For Insert Length | 14 mm |
| Compatible Hardware | Key: K14, Screw: S14 |
| Threading Location | External, Internal |
| Max. Cutting Dia. | 12.7 mm |
| Insert Holding Type | Screw |
| ISO Number | SR 0500 F14 |
| Toolholder Material | High Speed Steel |
| Hardware Required | Screw S14 |
| Package Quantity | 1 |
