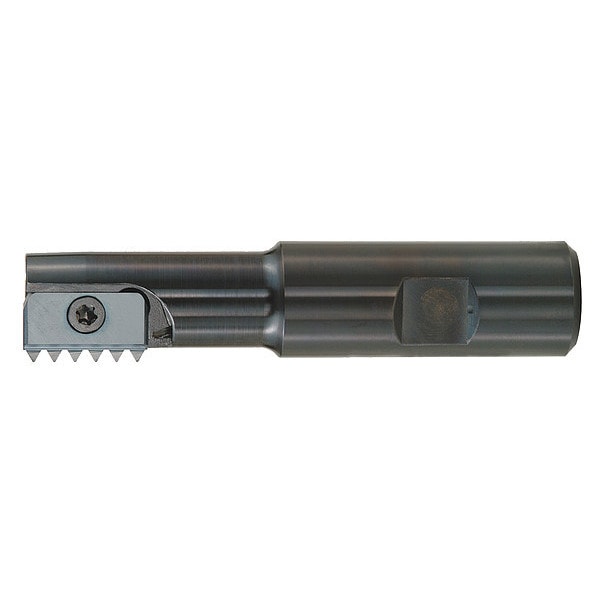

Thread Mill Toolholder, SR 0940 K21, 127.00mm L, - Insert Shape
| Item | Thread Mill Toolholder |
|---|---|
| Overall Length | 127 mm |
| ANSI Code | SR 0940 K21 |
| Insert Screw | S21 |
| Nomenclature | SR0940K21 |
| Shank | 0.75 |
| Overall Length (In.) | 5 |
| Torx Wrench | K21 |
| Swing (In.) | 0.94 |
| For Use With | 21 Series Threadmilling Inserts |
| Type | Long Shank |
| Left/Right Hand | Right or Left Hand |
| Shank Dia. | 3/4 in |
| Cutting Direction | Neutral |
| Compatible Hardware | Key: K21, Screw: S21 |
| Max. Cutting Dia. | 23.88 mm |
| ISO Number | SR 0940 K21 |
| Hardware Required | Screw S21 |
| For Insert Length | 21 mm |
| Toolholder Material | High Speed Steel |
| Threading Location | External, Internal |
| Coolant Fed | Coolant Through |
| Toolholder Style | SR |
| Insert Holding Type | Screw |
| Package Quantity | 1 |
