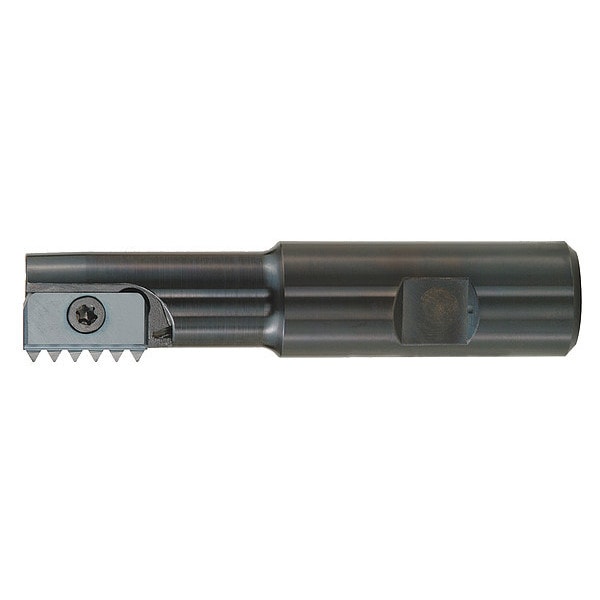

Thread Mill Toolholder, SR 1140 J30, 108.46mm L, - Insert Shape
| Item | Thread Mill Toolholder |
|---|---|
| Overall Length | 108.46 mm |
| ANSI Code | SR 1140 J30 |
| Type | Single Insert |
| Torx Wrench | K30 |
| Shank | 1 |
| Neck Dia. (In.) | 0.88 |
| Nomenclature | SR1140J30 |
| Overall Length (In.) | 4.27 |
| Insert Screw | S30 |
| Nose Radius (In.) | 1.85 |
| Swing (In.) | 1.14 |
| For Use With | 30 Series Threadmilling Inserts |
| Left/Right Hand | Right or Left Hand |
| Shank Dia. | 1 in |
| Cutting Direction | Neutral |
| Threading Location | External, Internal |
| ISO Number | SR 1140 J30 |
| Compatible Hardware | Key: K30, Screw: S30 |
| Coolant Fed | Coolant Through |
| Hardware Required | Screw S30 |
| Insert Holding Type | Screw |
| Neck Dia. | 22.35 mm |
| Toolholder Style | SR |
| Max. Cutting Dia. | 28.96 mm |
| Toolholder Material | High Speed Steel |
| For Insert Length | 30 mm |
| Package Quantity | 1 |
