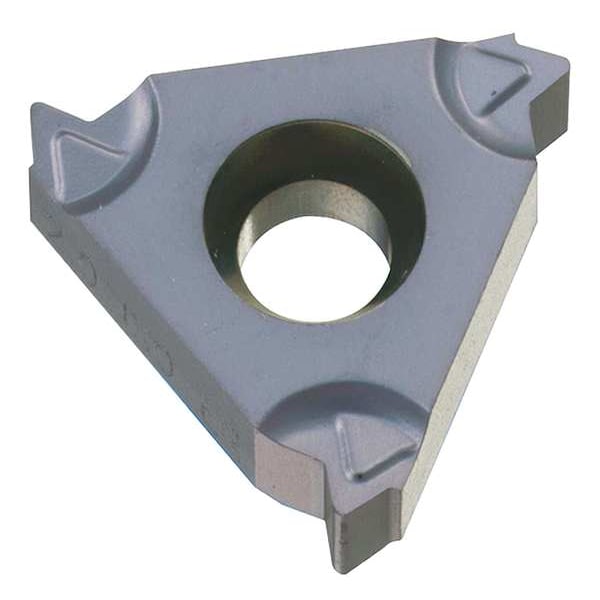

Threading Insert, 11 IR 14 NPT BMA
| Item | Threading Insert |
|---|---|
| Thread Type | Internal |
| Style | Laydown |
| Insert Size | 11 |
| Pitch | 14 TPI |
| Thread Profile | NPT |
| Chip-Breaker | Yes |
| Grade | BMA |
| Cutting Direction | Right Hand |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| Inscribed Circle | 1/4 in |
| Insert Type | 11IR |
| No. of Edges | 3 |
| Insert Shape | Triangle |
| ANSI Number | 11 IR 14 NPT BMA |
| Cast Iron (K) Compatibility | Yes |
| Coating | TiAlN |
| Super Alloy (S) Compatibility | No |
| Rake | Positive |
| Mounting Style | Screw Held |
| For Use With | Toolholder 4PMY6 |
| Non Ferrous (N) Compatibility | No |
| Insert Material | Carbide |
| ISO Number | 11 IR 14 NPT BMA |
| Hardened (H) Compatibility | No |
| Thread Direction | Right Hand |
| Insert Length | 11 mm |
| Thread Standard | NPT |
| ANSI Code | 11 IR 14 NPT BMA |
| Secondary Material Application | Alloy Steel, Cast Iron, Steel |
| Insert Holding Type | 1/4 in |
| Material - Machining | Carbide |
| Thread Profile Type | Full |
| Threading Location | Internal |
| Primary Material Application | Stainless Steel, Steel |
| Chip-Breaker Style | Top Rake |
| Number of Cutting Edges | 3 |
| Insert Style | 11 IR |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P, M, S |
| Max. Thread Pitch | 14 |
| Secondary Material Application ISO Code | K, P |
| Finish - Machining | TiAlN |
| Coating Process | PVD |
| Thread Height Difference | 0.04 in |
| Cutting Application | Thread Turning |
| Side-to-Cutting Tip | 0.03 in |
| Included Angle | 60 Degrees |
| Manufacturer Grade | BMA |
| Package Quantity | 1 |
