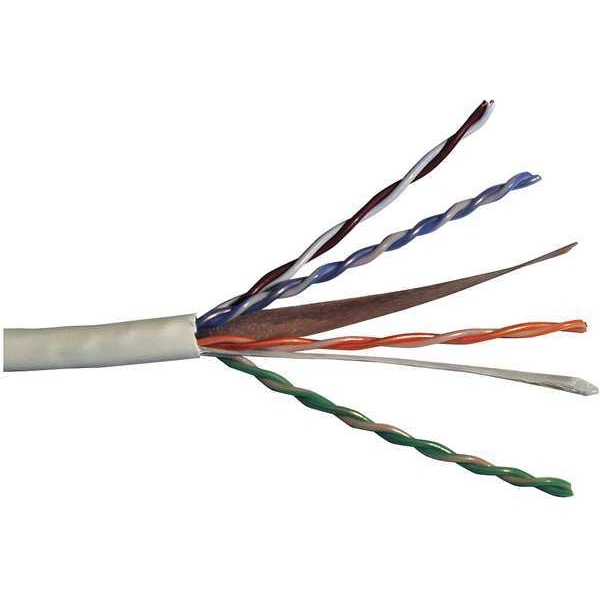

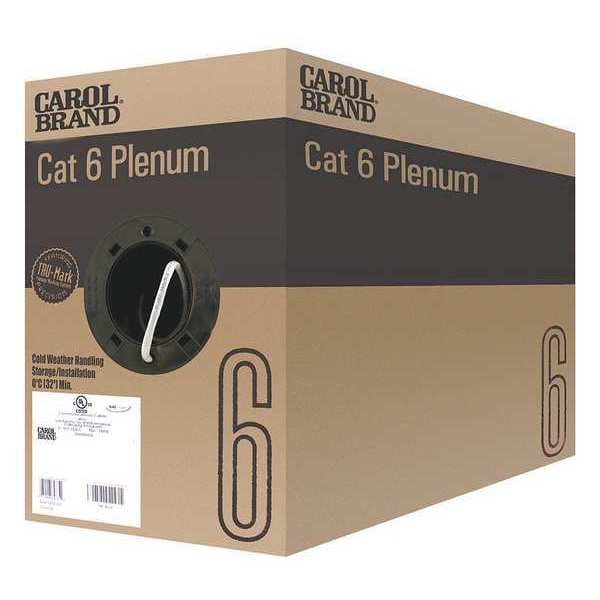

Este cable Cat 6 de 23 AWG y 1000 ft de largo en color blanco es perfecto para redes de alta velocidad. Conductor sólido de cobre. Cumple con los estándares de la industria. Ideal para instalaciones profesionales.
| Item | Category Cable |
|---|---|
| Cable Length | 1,000 ft |
| Standards | ANSI/TIA/EIA 568 B.2-1, ANSI/TIA/EIA 862, cUL Type CMP (NFPA 262 and CSA FT6), ICEA S-102-700, ISO/IEC 11801 Ed. 2.0 (Class E), RoHS Compliant, UL 444, UL Type CMP (NFPA 262 and CSA FT6) |
| Wire Size | 23 AWG |
| Performance Category | 6 |
| Jacket Material (Wire and Cable) | PVC |
| Shielded | Unshielded |
| Package Type | Pulling Pack |
| Package Type - Data Cable | Pulling Pack |
| NEC Article and Type | 800 CMR |
| Shielded / Unshielded | Unshielded |
| Fire Rating - Data Cable | Riser |
| Pulling Force | 32 lb |
| Number of Conductor Pairs | 4 |
| Frequency | 250 MHz |
| Jacket Material - Wire and Cable | PVC |
| Jacket Material | PVC |
| Plenum Rated | No |
| Category Type | 6 |
| Installation Temp. Range | 0 to 60 deg C |
| Outside Dia. | 0.205 in |
| Jacket Color | White |
| Length | 1,000 ft |
| Operating Temp. Range | -20 Degrees to 75 Degrees C |
| Spool Length | 1,000 ft |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Bend Radius | 1 in |
| Solid / Stranded | Solid |
| Total Number of Conductors - Data Cable | 8 |
| Category - Data Cable | 6 |
| Conductor Size - Data Cable | 23 AWG |
| Item - Data Cable | Category Cable |
| Insulation Material | Fluoropolymer |
| Number of Conductors | 8 |
| Fire Rating | Riser |
| Maximum Operating Temperature | 167 deg F |
| Number of Pairs | 4 |
| Outside Diameter | 1/4 in |
| Minimum Operating Temperature | -4 deg F |
| Resistance Properties | Flame/Fire Retardant |
| Solid/Stranded | Solid |
| Maximum Frequency | 250 MHz |
| Conductor Gauge | 23 AWG |
| Maximum Impedance | 100 ohms |
| Package Quantity | 1 |
