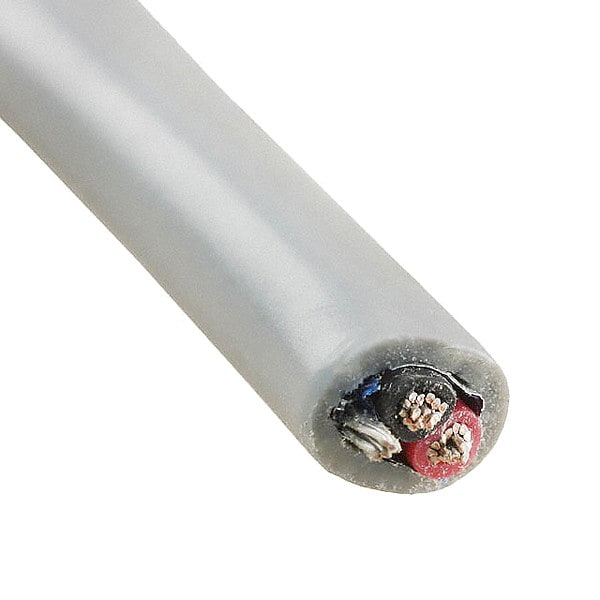

Este cable de comunicación de 20 AWG y 100 pies de largo es ideal para aplicaciones de telecomunicaciones y redes. Conductor de cobre estañado para una excelente conductividad. Cumple con los estándares de calidad y seguridad.
| Item | Communication Cable |
|---|---|
| Number of Conductors | 2 |
| Shielded | Yes |
| Solid/Stranded | Stranded |
| Jacket Color | Gray |
| Jacket Material | PVC |
| Insulation Material | PE |
| Application | Audio Systems, Control Systems |
| Package Type | Spool |
| Standards | cUL, RoHS Compliant, UL Listed |
| Shielding Material | Aluminum/Mylar |
| NEC Article and Type | 800 CM, 725 CL2 |
| Cable Length | 50 ft |
| Product Type | Communication Cable |
| Maximum Operating Temperature | 167 deg F |
| Maximum Voltage Rating | 300 V |
| Maximum Capacitance | 22.5 pf/ft (Capacitance Between Conductors); 40.5 pf/ft (Capacitance Between One Conductor and Other Conductors Connected to Shield) |
| Fire Rating | Riser |
| Conductor Gauge | 20 AWG |
| Number of Pairs | 1 |
| Minimum Operating Temperature | -4 deg F |
| Outside Diameter | 0.2 in |
| Number of Strands | 7 |
| Package Quantity | 1 |
