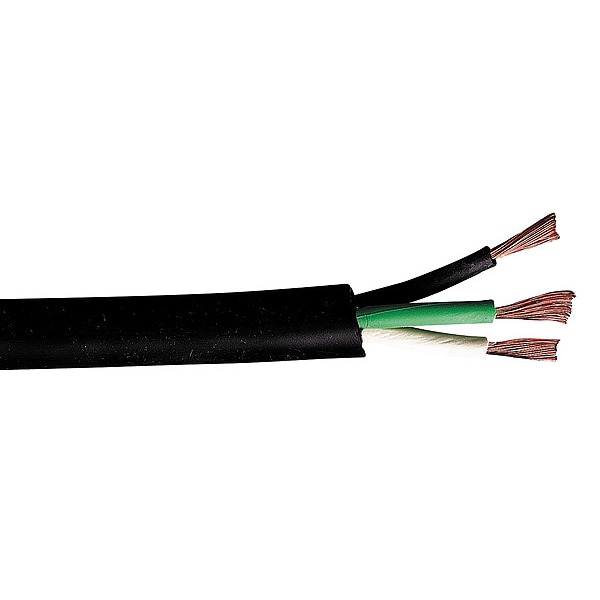

El Cable Portátil Carol SJOOW está diseñado para uso en interiores y exteriores, fabricado con caucho EPDM resistente y cuenta con un diseño trenzado para mayor flexibilidad y durabilidad. Con una capacidad de 300V y 12 AWG es ideal para diversas aplicaciones.
| Item | Portable Cord |
|---|---|
| Trade Designation | SJOOW |
| Wire Size | 12 AWG |
| Number of Conductors | 3 |
| Conductor Design | Stranded |
| Jacket Material | EPDM Rubber |
| Jacket Color | Black |
| Length | 250 ft |
| Location | Indoor, Outdoor |
| Voltage | 300V |
| Conductor Material | Copper |
| Standards | OSHA and Bureau of Mines (MSHA) |
| Wire Color | Black, Green, White |
| Max. Amps | 25 |
| Features | Resist Oil, Moisture and Abrasion-Resistant, 2.58" Minimum Bend Radius |
| Nominal Outside Dia. | 0.43 in |
| Temp. Rating | -40 to 194°F |
| Conductor Size | 12 AWG |
| Special Features | Abrasion Resistant, Moisture Resistant, Oil Resistant |
| Gauge/Conductor | 12/3 |
| Outside Dia. | 0.43 in |
| Overall Length | 250 ft |
| Grounding Conductor Insulation Material | Not Applicable |
| Number of Strands | 65 |
| Grounding Conductor Material | Not Applicable |
| Number of Ground Conductors | 0 |
| Packaging | Spool |
| Grounding Conductor Size | Not Applicable |
| Conductor Insulation Material | EPDM |
| Minimum Bend Radius | 2-9/16 in |
| Conductor Insulation Color | Black, Green, White |
| Nominal Outside Diameter | 0.43 in |
| Grounding Conductor Insulation Color | Not Applicable |
| Series | Carolprene |
| Temperature Rating - Maximum Wet | Not Applicable |
| Ampacity at Maximum Temperature | 25 A |
| Operating Temperature - Minimum | -40 deg F |
| Temperature Rating - Maximum Dry | 194 deg F |
| Package Quantity | 1 |
