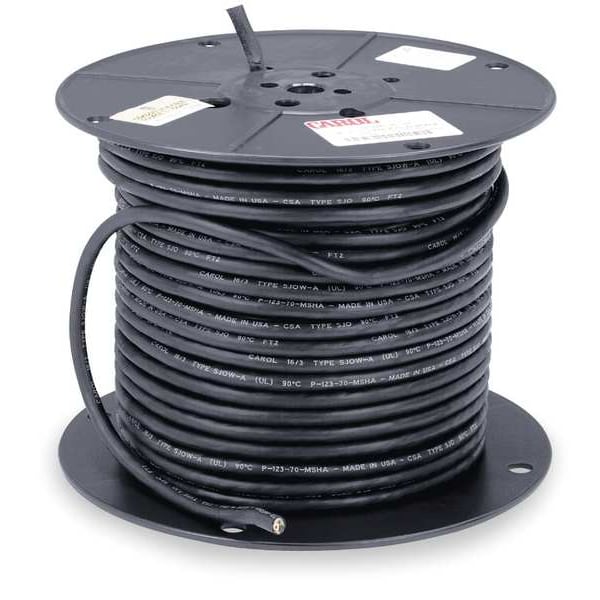

El cable portátil Carol SJOOW es perfecto para uso en interiores y exteriores. Conductor de cobre estañado de calibre 14 y recubrimiento de caucho EPDM para una máxima durabilidad. Soporta hasta 300V y viene en una presentación de 250 pies.
| Item | Portable Cord |
|---|---|
| Trade Designation | SJOOW |
| Wire Size | 14 AWG |
| Number of Conductors | 3 |
| Conductor Design | Stranded |
| Jacket Material | EPDM Rubber |
| Jacket Color | Black |
| Length | 250 ft |
| Location | Indoor, Outdoor |
| Voltage | 300V |
| Conductor Material | Copper |
| Standards | OSHA and Bureau of Mines (MSHA) |
| Nominal Outside Dia. | 0.36 in |
| Features | Resist Oil, Moisture and Abrasion-Resistant, 2.19" Minimum Bend Radius |
| Max. Amps | 18 |
| Wire Color | Black, Green, White |
| Conductor Size | 14 AWG |
| Temp. Rating | -40 to 194°F |
| Special Features | Abrasion Resistant, Moisture Resistant, Oil Resistant |
| Gauge/Conductor | 14/3 |
| Outside Dia. | 0.36 in |
| Overall Length | 250 ft |
| Temperature Rating - Maximum Wet | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Series | Carolprene |
| Number of Ground Conductors | 0 |
| Packaging | Spool |
| Conductor Insulation Color | Black, Green, White |
| Grounding Conductor Material | Not Applicable |
| Grounding Conductor Size | Not Applicable |
| Temperature Rating - Maximum Dry | 194 deg F |
| Minimum Bend Radius | 2-3/16 in |
| Conductor Insulation Material | EPDM |
| Grounding Conductor Insulation Material | Not Applicable |
| Grounding Conductor Insulation Color | Not Applicable |
| Ampacity at Maximum Temperature | 18 A |
| Number of Strands | 41 |
| Nominal Outside Diameter | 0.36 in |
| Package Quantity | 1 |
