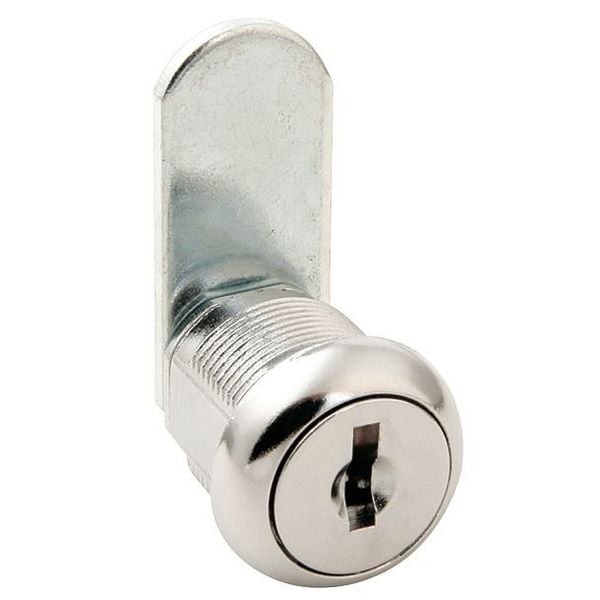

Disc Tumbler Keyed Cam Lock, Bright Chrome, 5/8 in For Door Thickness, 2 Number of Keys
| Item | Disc Tumbler Keyed Cam Lock |
|---|---|
| For Door Thickness (In.) | 5/8 |
| Key Type | Alike |
| Keying | Keyed Alike |
| Finish | Bright Chrome |
| Material | Zinc Die Cast Cylinders |
| For Use With | Drawers; Cabinet Doors; Storage Boxes; Gun Racks; Chests; Cashboxes |
| Opens With | Key |
| Mounting Hole Dia. | 3/4 in |
| Number of Keys | 2 |
| Cam Lock Type | Keyed |
| Cam Width (In.) | 5/8 |
| Head Dia. (In.) | 57/64 |
| Cam Length (In.) | 1-1/8, 1-1/4 |
| Key Number | CH751 |
| Cam Type | Straight, Offset |
| For Material Thickness | 5/8 in |
| Package Quantity | 1 |
| Unlocking Radius (Deg.) | 90, 180 |
| Cylinder | 5/8 in |
| Unlock Turn Direction | Clockwise, Counterclockwise |
| Includes | (2) Cams and Hardware |
| Max. Latching Distance (In.) | 7/8 |
| Number of Pins | 5 |
| Weather Resistant | No |
| Offset (In.) | 1/4 |
| Mounting Hole Dia. (In.) | 3/4 |
| Interchangeable Core | No |
| Lock Body Material | Zinc Die-Cast |
| Lock Body Finish | Chrome-Plated |
| Offset Cam Length | 1-1/8 in |
| Body Color | Silver |
| Security Level | General Security |
| Keyed Cam Lock Type | Disc Tumbler Keyed Cam Lock |
| Key Code | CH751 |
| Master Key Code | KA-CH751 |
| Includes Mounting Hardware | Yes |
| Number of Locks in Pack | 1 |
| Offset Cam Width | 5/8 in |
| Mounting Hardware Required | Yes |
| Cylinder Length | 5/8 in |
| Head Dia. | 57/64 in |
| Straight Cam Length | 1-1/4 in |
| Keyway Type | CCL C751 |
| Unlocking Radius | Quarter-Turn |
| Latching Distance | 5/8 in |
| Key Retaining | No |
| Straight Cam Width | 5/8 in |
| For Material | Metal |
| Series | 650/651 |
| Type | Disc Tumbler Cam Lock |
| Country of Origin (subject to change) | China |
