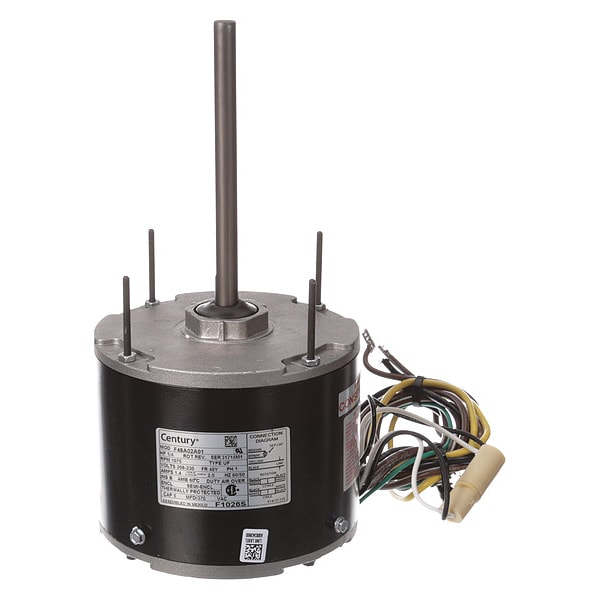

5-5/8in. Dia. Outdoor Fan Motor
| Item | Condenser Fan Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/4 |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,075 |
| Voltage | 208-230V AC |
| Frame | 48 Y |
| Motor Mounting Type | Stud |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Motor Shaft Design | Flat |
| No. of Speeds | 1 |
| Motor Mounting Position | All Angle |
| Application | Condenser Fan, Heat Pump, Refrigeration |
| Motor Sub Application | Condenser Fan, Heat Pump |
| Motor Shaft Rotation | CCW |
| Stud Size | 8 to 32 |
| Max. Ambient Temp. | 60 deg C |
| Capacitor Required | Yes |
| Voltage Compatibility | 208V AC, 230V AC |
| Overall Length | 11-1/4 in |
| Length Less Shaft | 4-13/16 in |
| Includes | (4) Screws Polybag (615982-001) |
| Motor Thermal Protection | Auto |
| Body Dia. | 5-5/8 in |
| Hz | 60 |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Shaft Dia. | 1/2 in |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Standards | CSA Certified, UL Listed |
| Full Load Amps | 1.4 |
| Shaft Length | 6-3/8 in |
| Stud Quantity | 4 |
| Lead Length | 27 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
