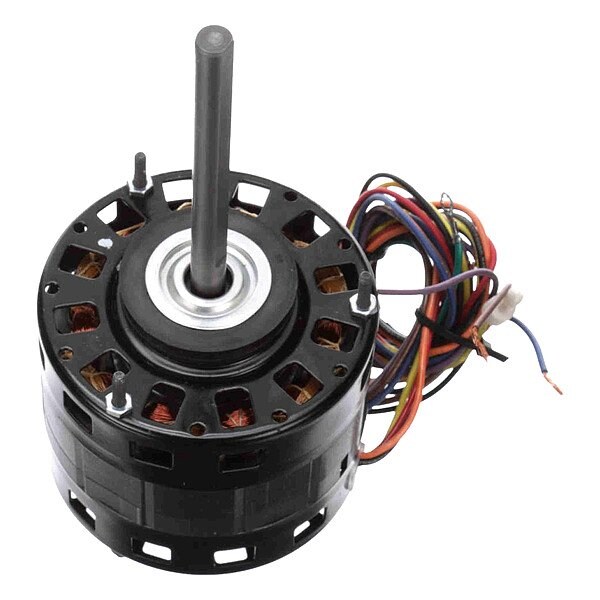

Fan and Blower Motor, 230V AC
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Fan and Blower Motor |
| Motor Design | Permanent Split Capacitor |
| HP | 1/10, 1/5, 1/6 |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,075 |
| Voltage | 230V AC |
| Frame | 42 |
| Motor Mounting Type | Ring |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Standards | CSA |
| Motor Service Factor | 1 |
| No. of Speeds | 3 |
| Motor Frame Material | Steel |
| Includes | Shoulder Studs |
| Shaft Dia. | 1/2 in |
| Motor Thermal Protection | Auto |
| Motor Shaft Design | Flat |
| Shaft Length | 5-1/2 in |
| Capacitor Required | Yes |
| Includes Blade | Fan Included |
| Overall Length | 10-1/8 in |
| Lead Length | 36 in |
| Motor Shaft Rotation | CCW, CW |
| Full Load Amps | 0.65, 0.85, 1.3 |
| Motor Bearings | Ball |
| Weight | 11.13 lb |
| Voltage Compatibility | 230V AC |
| Motor Application | Motor, Air Handler, Fan Coil, Furnace Blower |
| Motor Mounting Position | Horizontal |
| Ins. Class | B |
| Length Less Shaft | 4-5/8 in |
| Extended Thru-Bolts | Yes |
| Hz | 60 |
| Mounting Holes | #10 to 32 |
| Body Dia. | 5 in |
| Max. Ambient Temp. | 104 deg F |
| Motor Sub Application | Fan, Blower Motor |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
