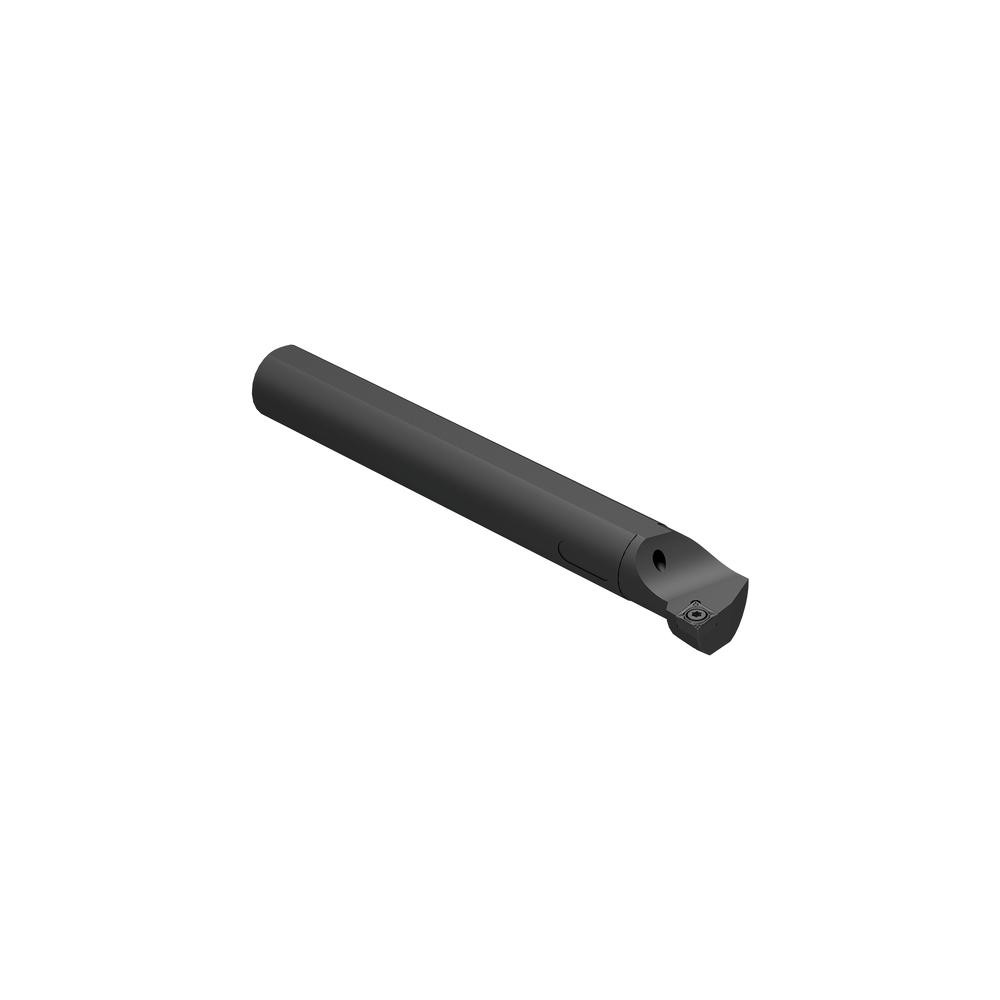

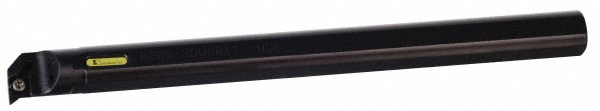

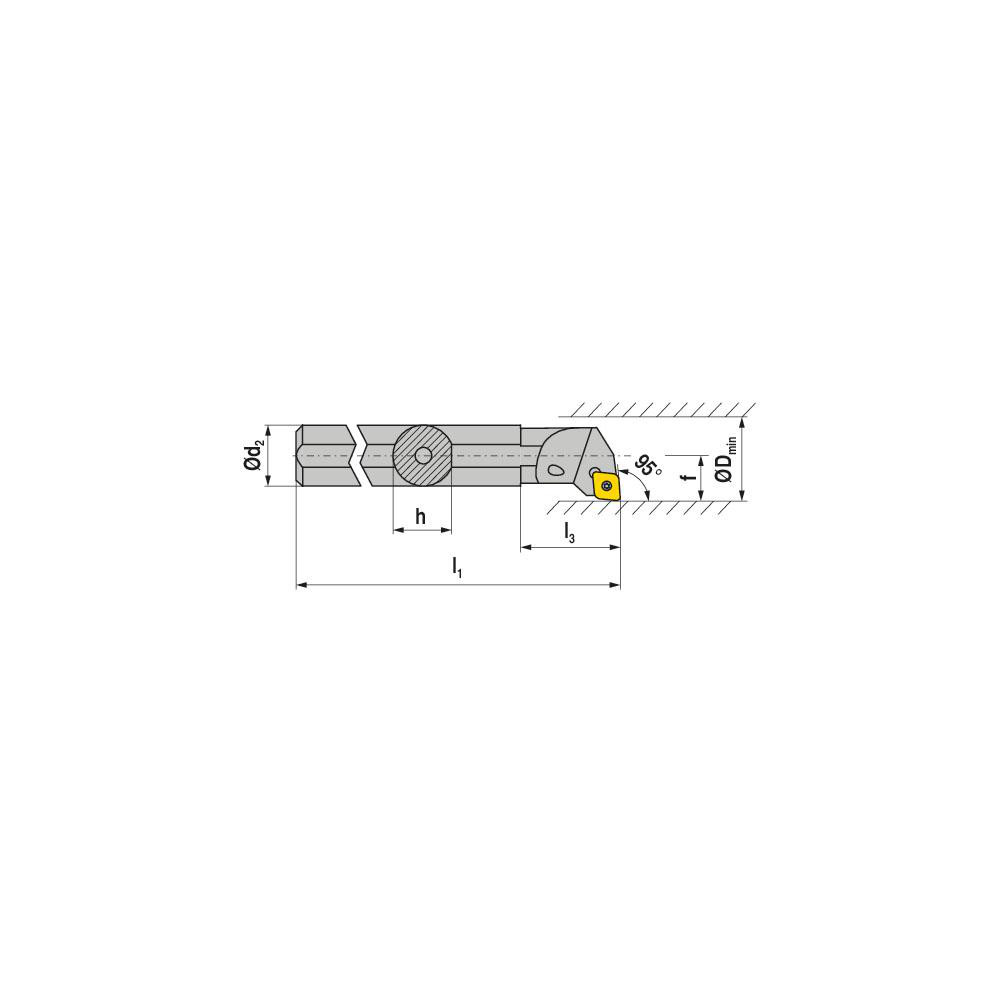

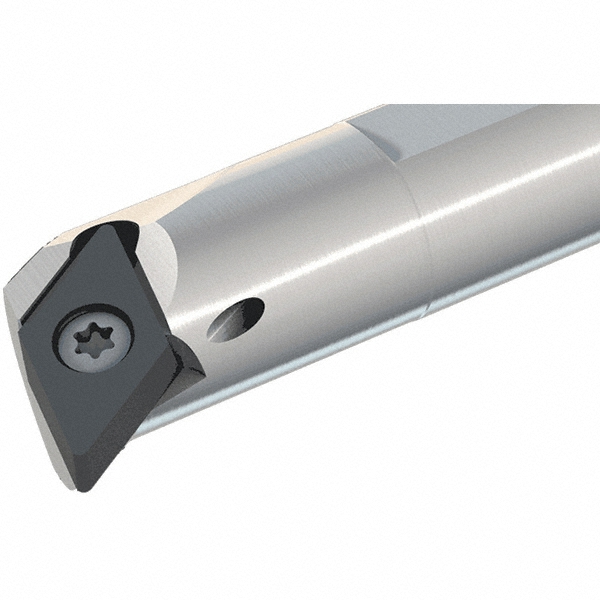

125.00 mm OAL, Screw Clamping
| Minimum Bore Diameter (mm) | 13.00 |
|---|---|
| Maximum Bore Depth (mm) | 40.00 |
| Toolholder Style | SCLCL |
| Tool Material | Steel |
| Shank Diameter (Inch) | 10 |
| Overall Length (mm) | 125.00 |
| Compatible Insert Size Code | CC..21.5. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | 7.00 |
| Lead Angle | 95 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Center to Cutting Edge (mm) | 7.00 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 09973181 |
