8.0000" OAL, Screw Clamping

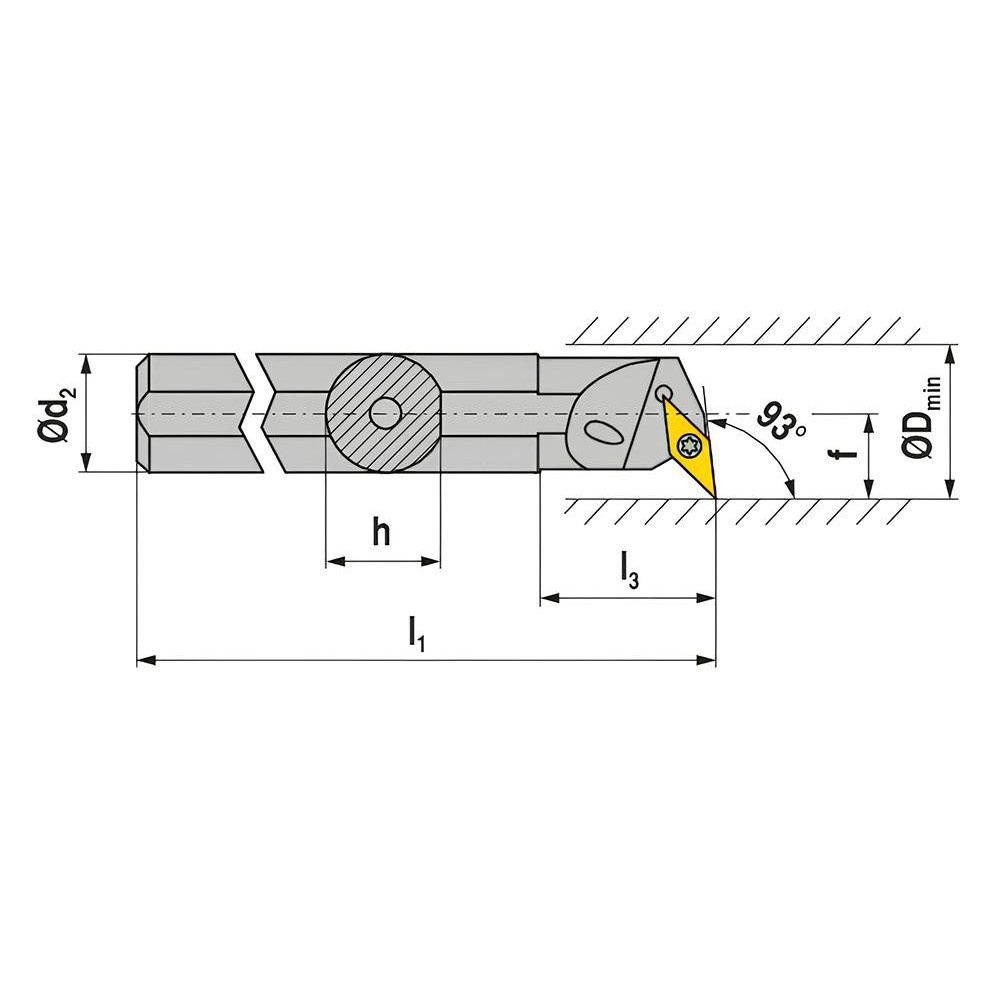

| Minimum Bore Diameter (Decimal Inch) | 0.8670 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.0600 |
| Toolholder Style | SVUCL |
| Tool Material | Steel |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (mm) | 8.00 |
| Overall Length (Inch) | 8 |
| Compatible Insert Size Code | VC..22. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | 7.00 |
| Lead Angle | 93 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (Inch) | 1/2 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Spain |
| undefined | undefined |
| MSC Number | MSC# 12708335 |
