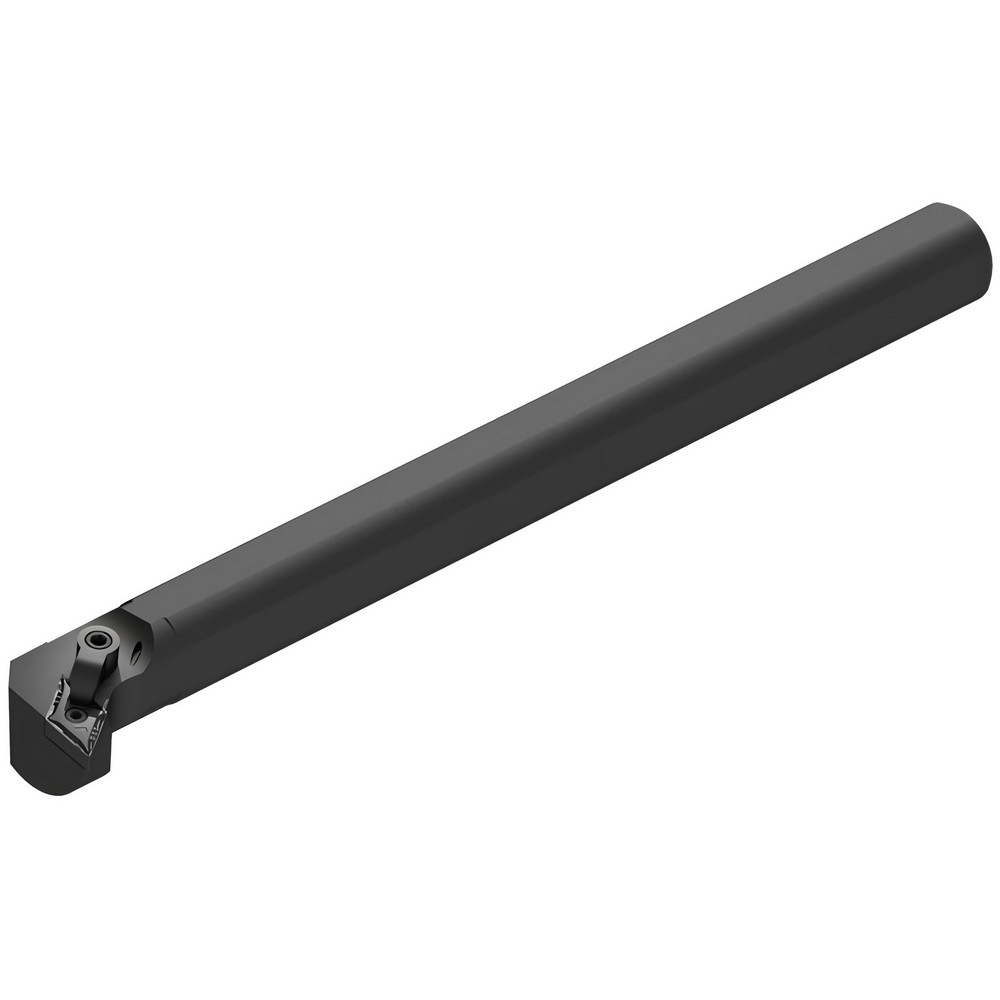

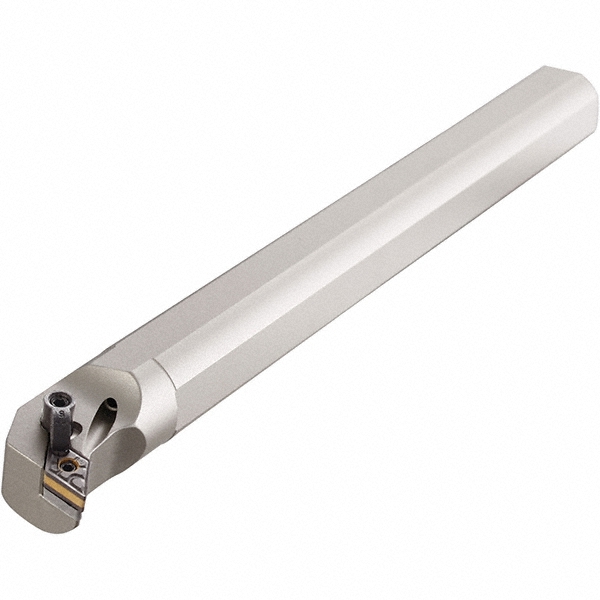

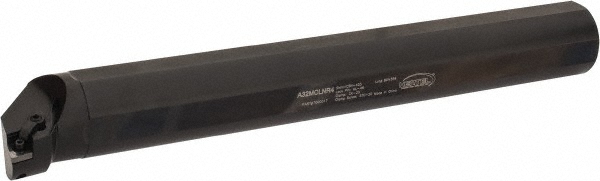

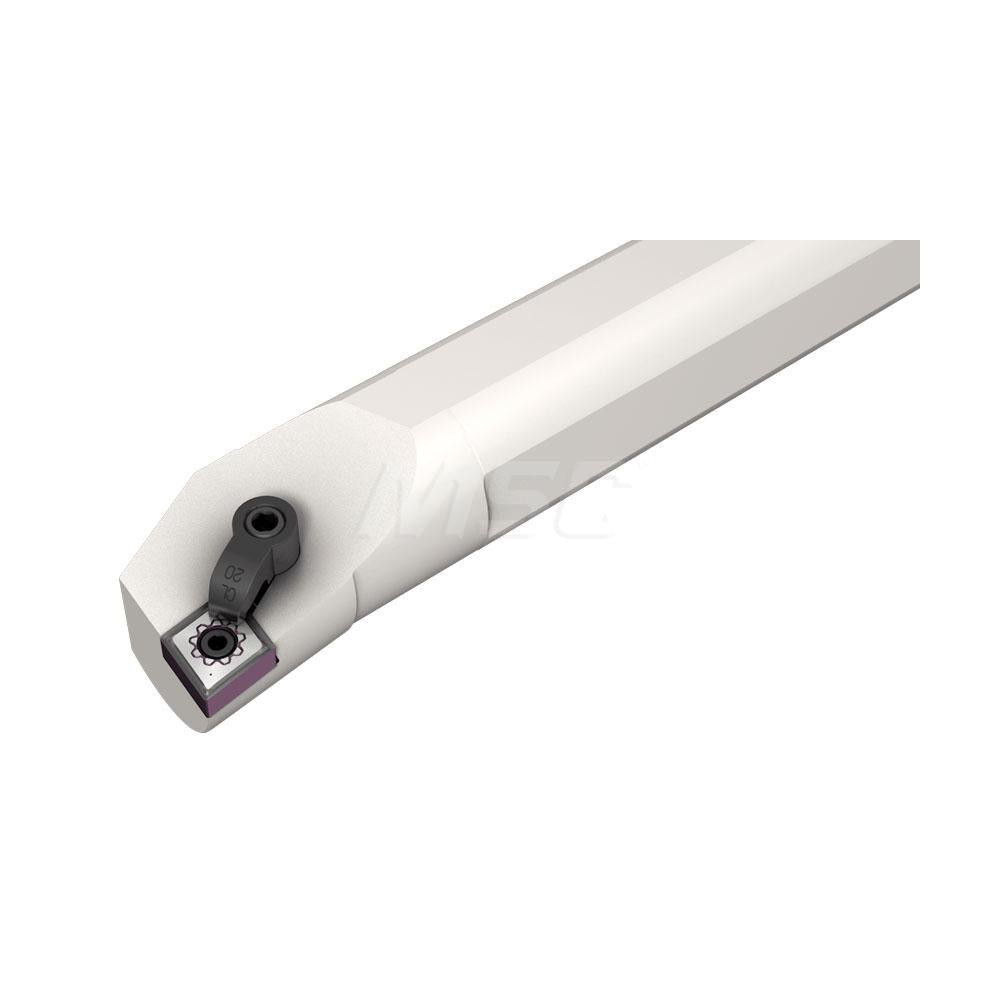

12" OAL, Clamp & Pin
| Minimum Bore Diameter (Decimal Inch) | 1.7500 |
|---|---|
| Minimum Bore Diameter (Inch) | 1-3/4 |
| Maximum Bore Depth (Decimal Inch) | 4.0000 |
| Maximum Bore Depth (Inch) | 4 |
| Toolholder Style | MDUNR |
| Tool Material | Steel |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 12.00 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | DN..43. |

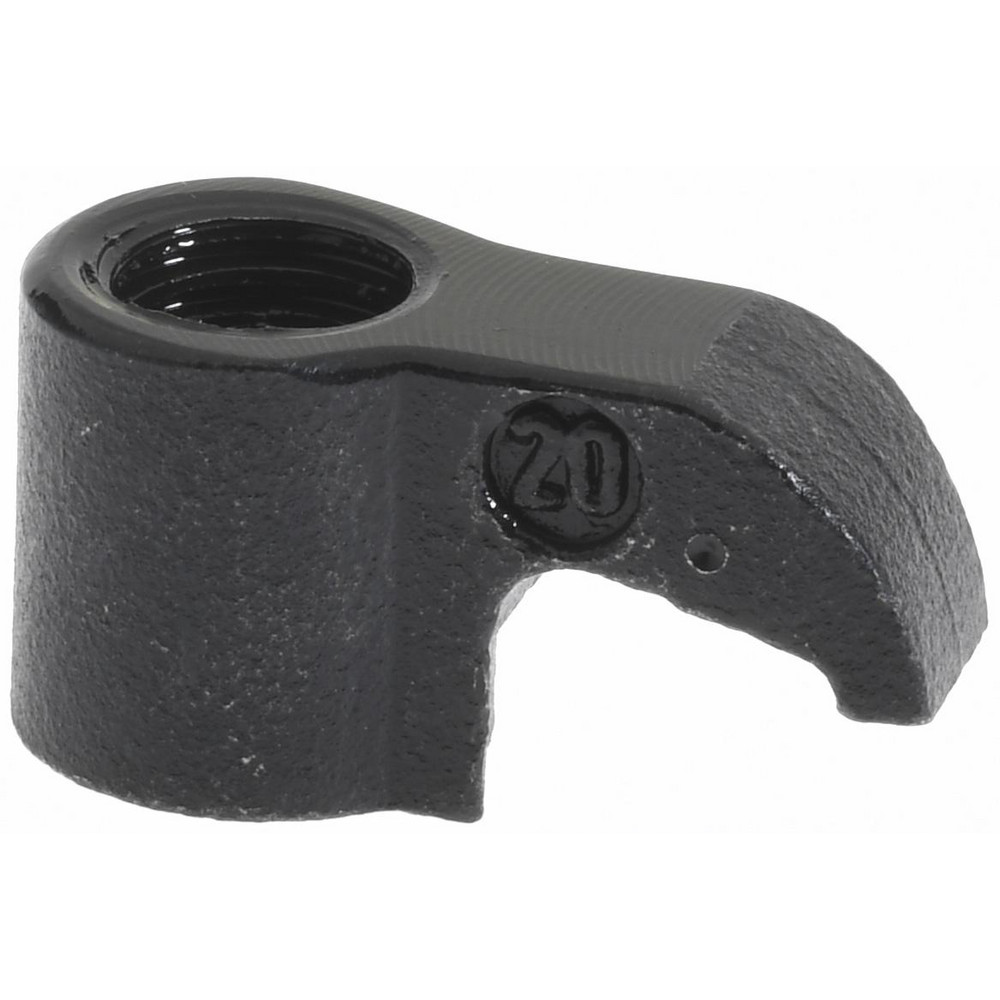

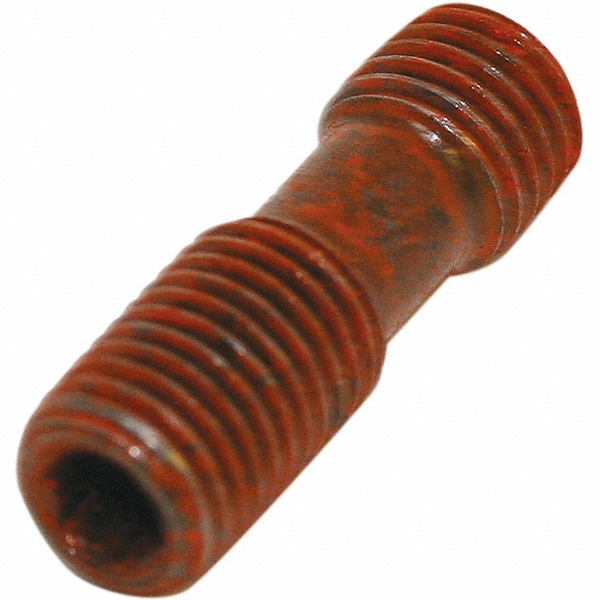

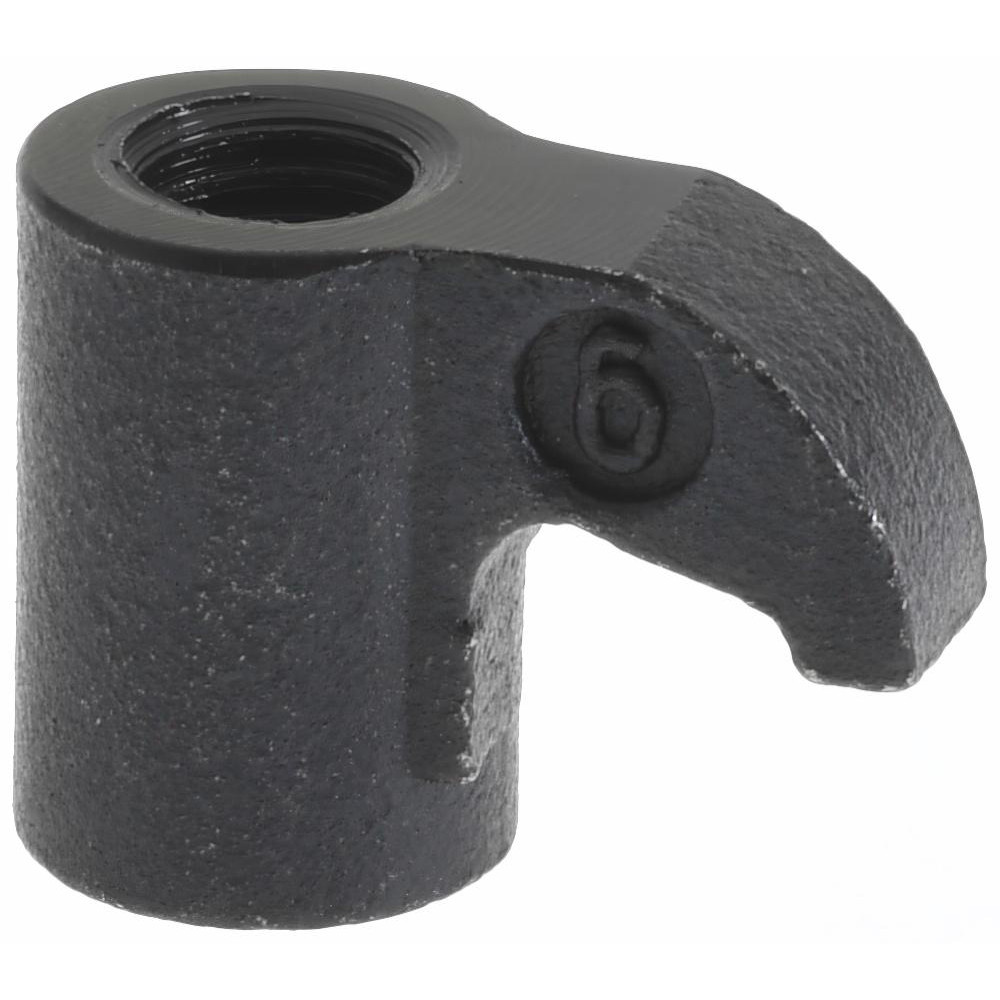

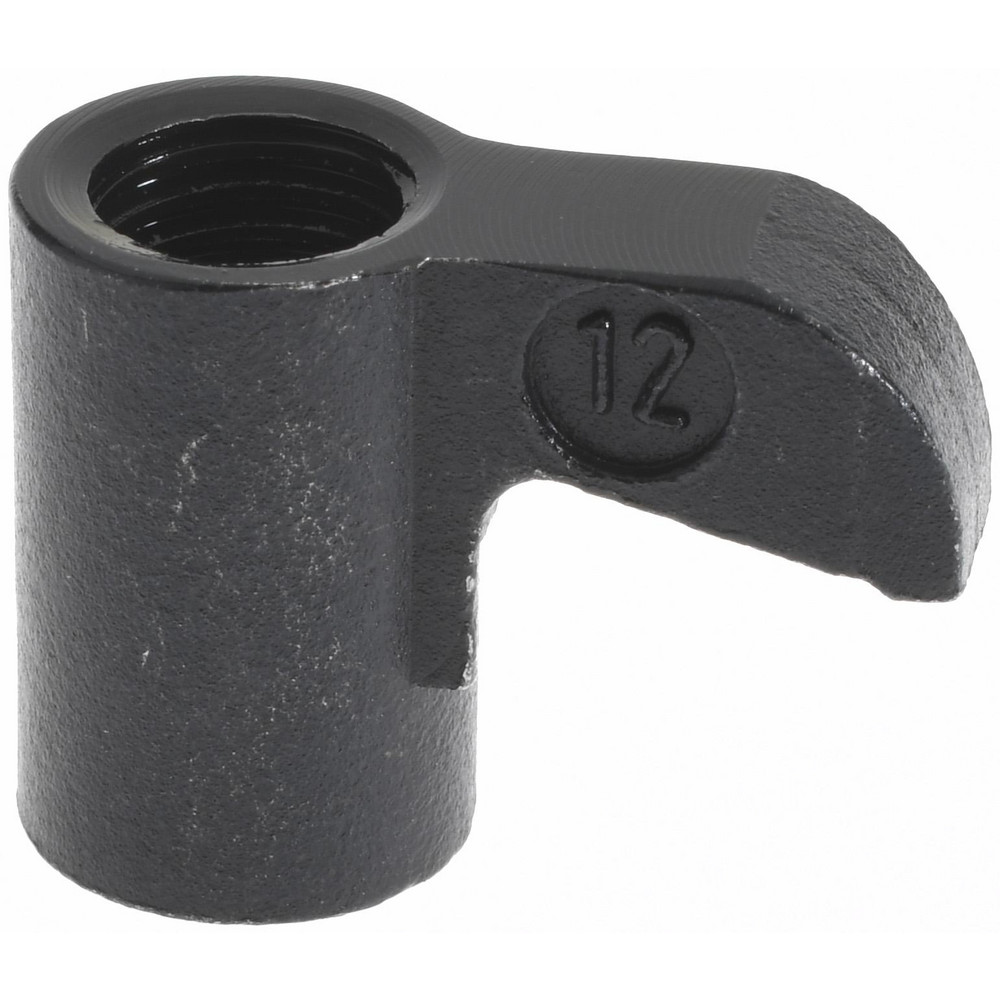

| Insert Holding Method | Pin; Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Rake Angle | 0.00 |
| Lead Angle | 93 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.2500 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |

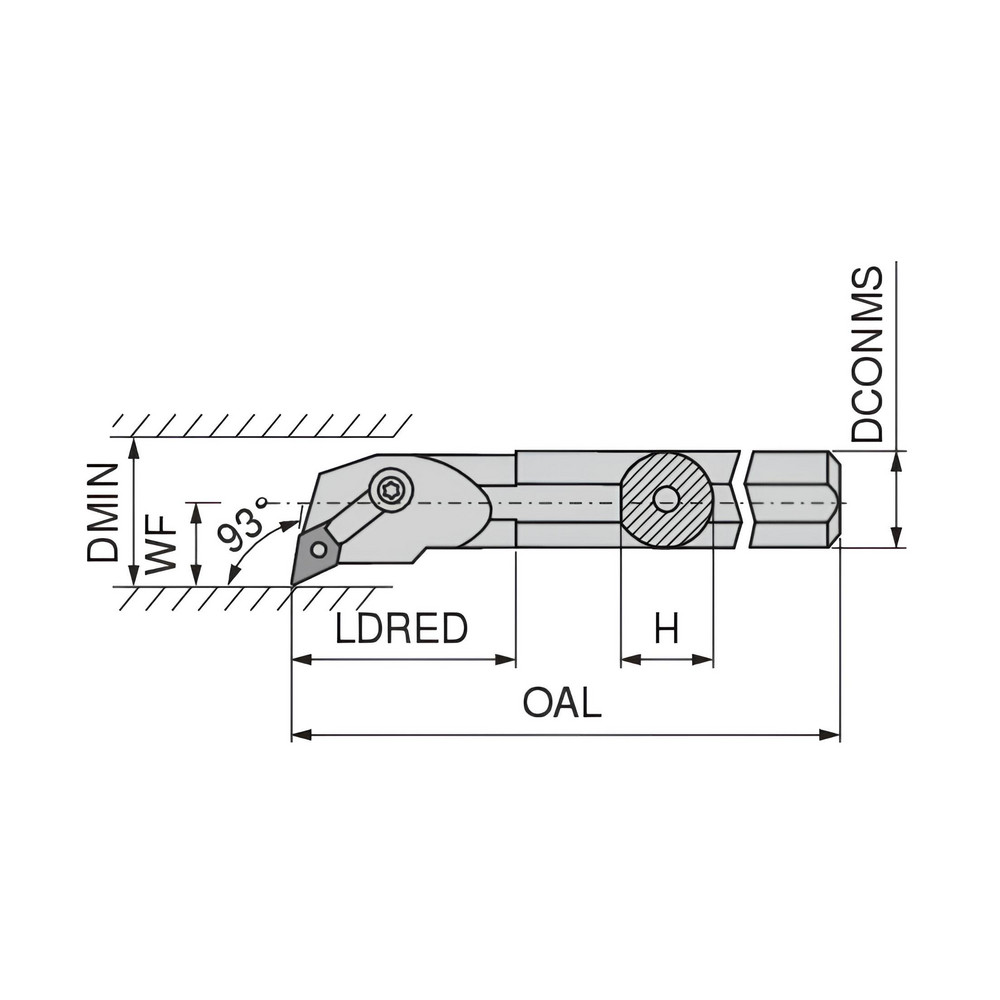

| Back of Bar to Cutting Edge (Decimal Inch) | 1.3750 |
| Center to Cutting Edge (Decimal Inch) | 0.8752 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Spain |
| undefined | undefined |
| MSC Number | MSC# 09979881 |
