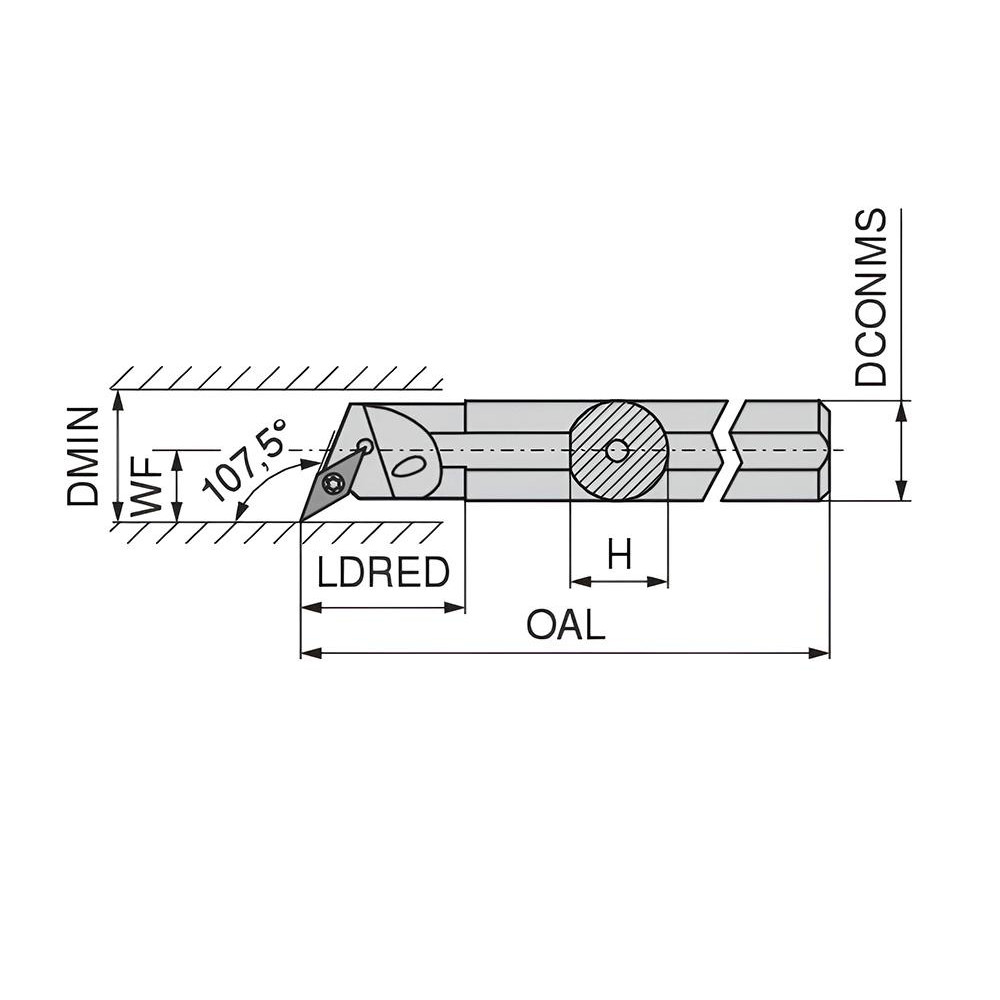

12" OAL, Screw Clamping
| Minimum Bore Diameter (Decimal Inch) | 1.3750 |
|---|---|
| Minimum Bore Diameter (Inch) | 1-3/8 |
| Maximum Bore Depth (Decimal Inch) | 0.9100 |
| Toolholder Style | SVQCR |
| Tool Material | Steel |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 12.00 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | VC..33. |

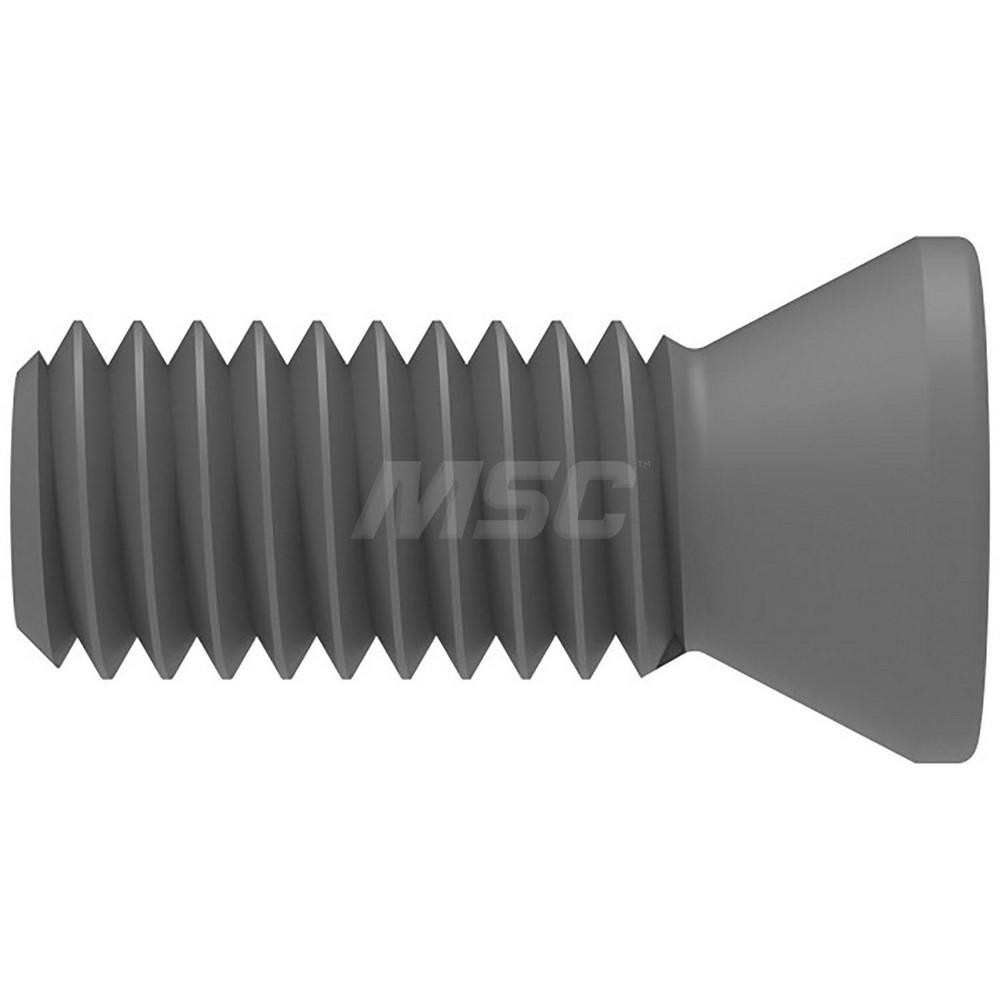

| Insert Holding Method | Screw Clamping |

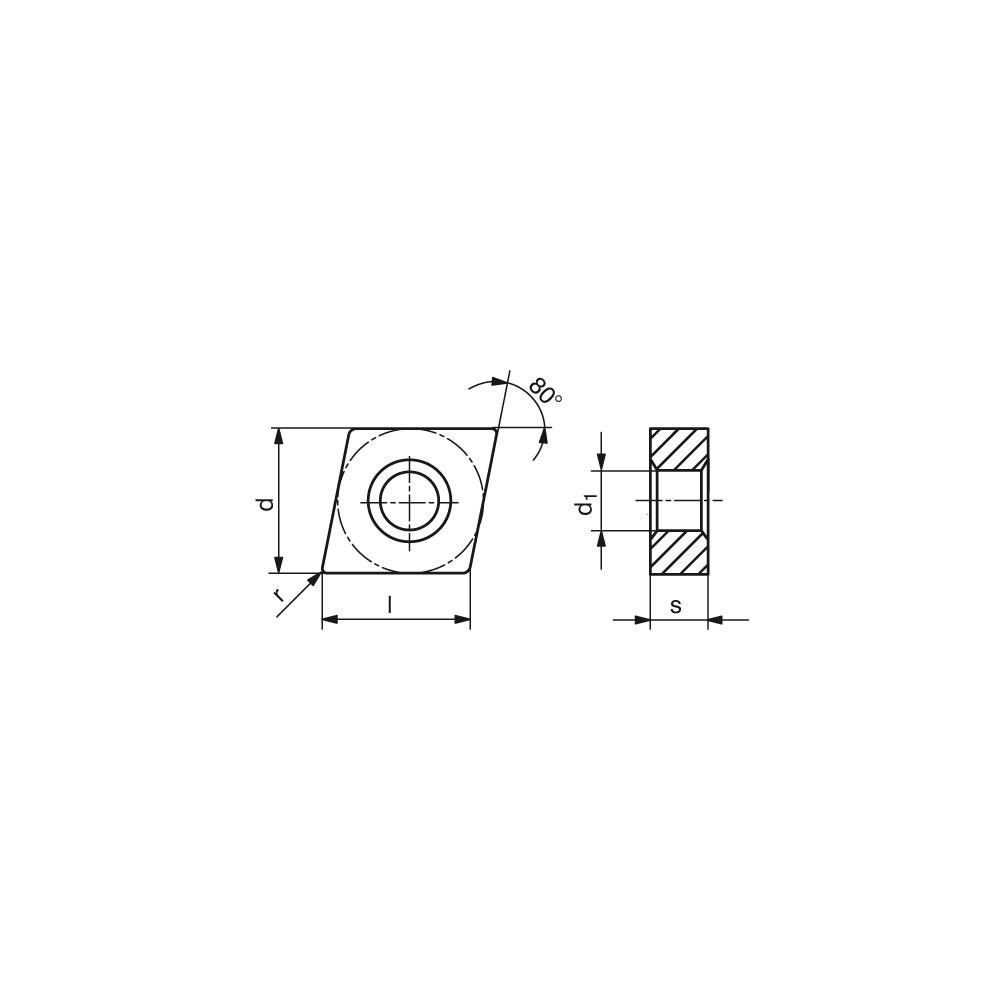

| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | 7.00 |
| Lead Angle | 107.5 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Center to Cutting Edge (Inch) | 3/4 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Spain |
| MSC Number | MSC# 12830295 |
