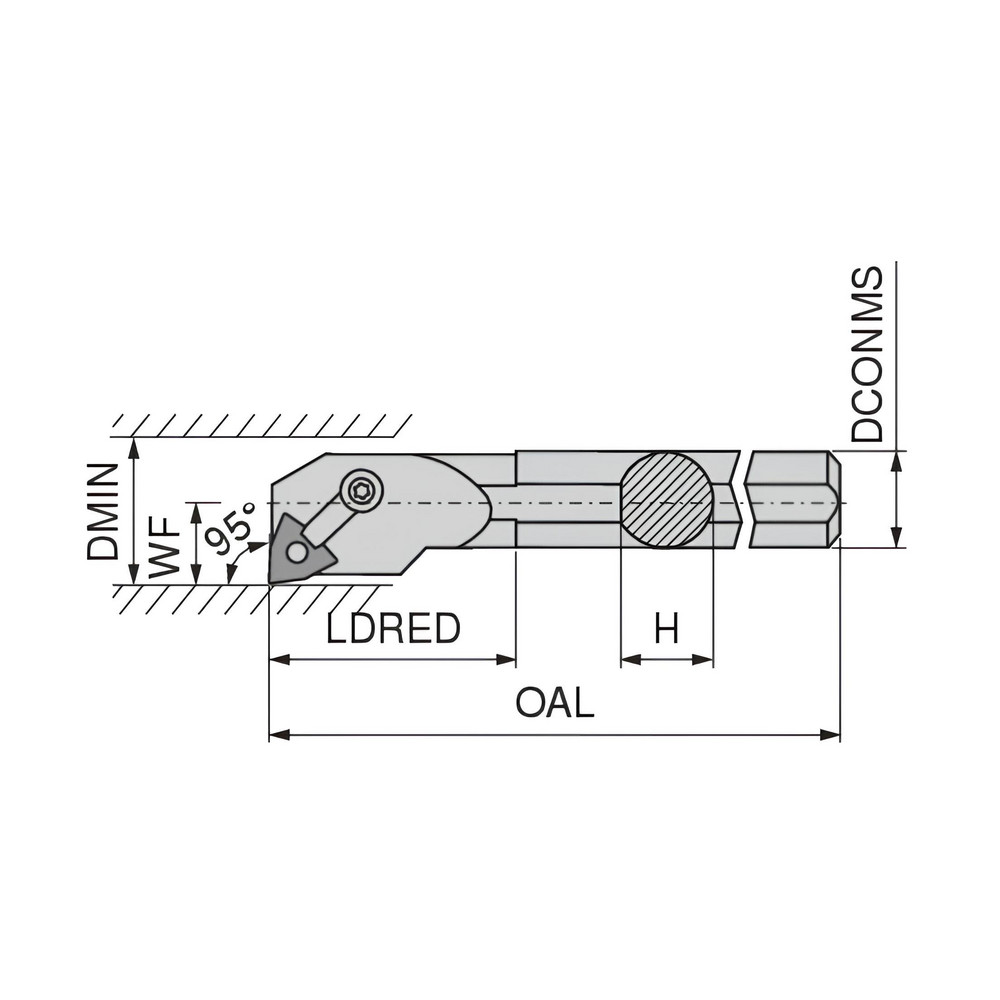

14.0000" OAL, Clamp & Pin
| Minimum Bore Diameter (Decimal Inch) | 1.5300 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 5.0000 |
| Maximum Bore Depth (Inch) | 5 |
| Toolholder Style | MWLNR |
| Tool Material | Steel |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 14.00 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | WN..43. |
| Insert Holding Method | Pin; Clamp |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Negative |
| Rake Angle | 0.00 |
| Lead Angle | 95 |
| Series | MaxiLock-M |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3900 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Spain |
| MSC Number | MSC# 09978784 |
