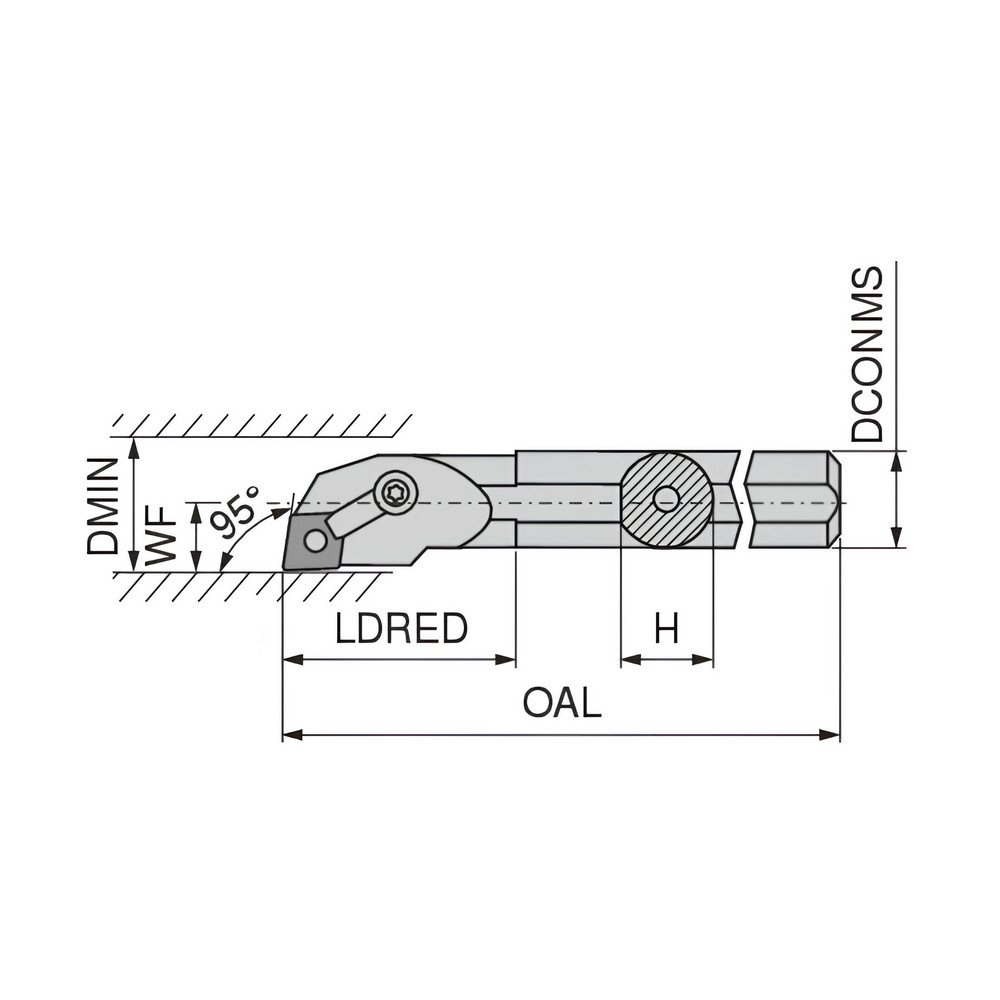

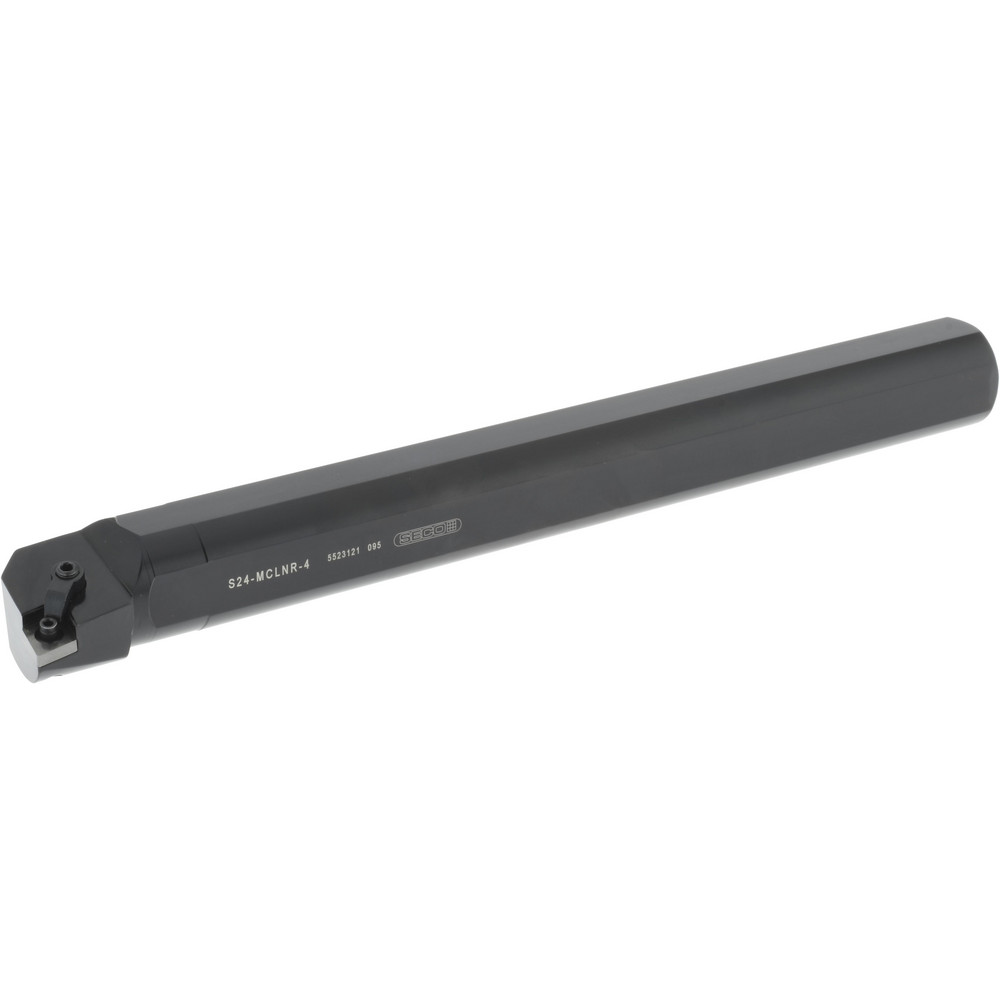

14.0000" OAL, Clamp & Pin
| Minimum Bore Diameter (Decimal Inch) | 1.7800 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Maximum Bore Depth (Inch) | 3 |
| Toolholder Style | MCLNR |
| Tool Material | Steel |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 14.00 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | CN..43. |
| Insert Holding Method | Pin; Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Rake Angle | 0.00 |
| Lead Angle | 95 |
| Series | MaxiLock-M |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.8902 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Spain |
| undefined | undefined |
| MSC Number | MSC# 12830212 |
