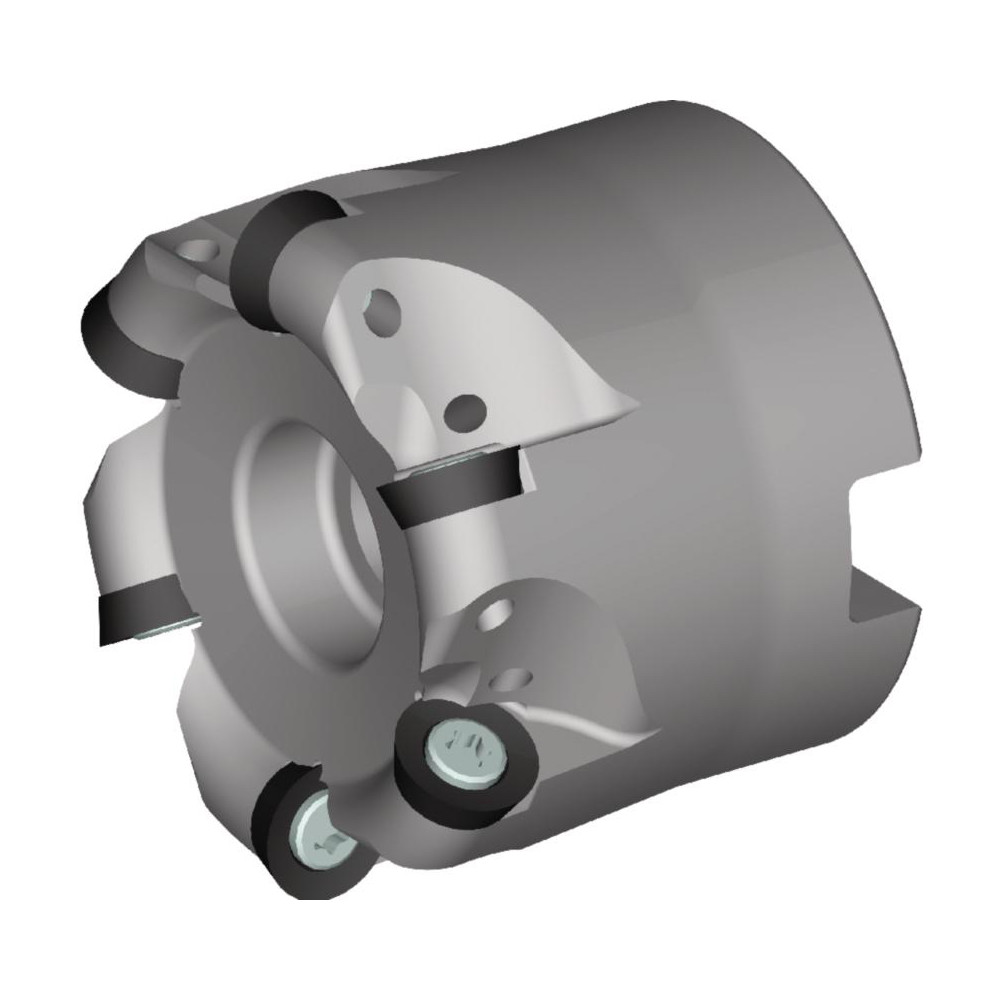

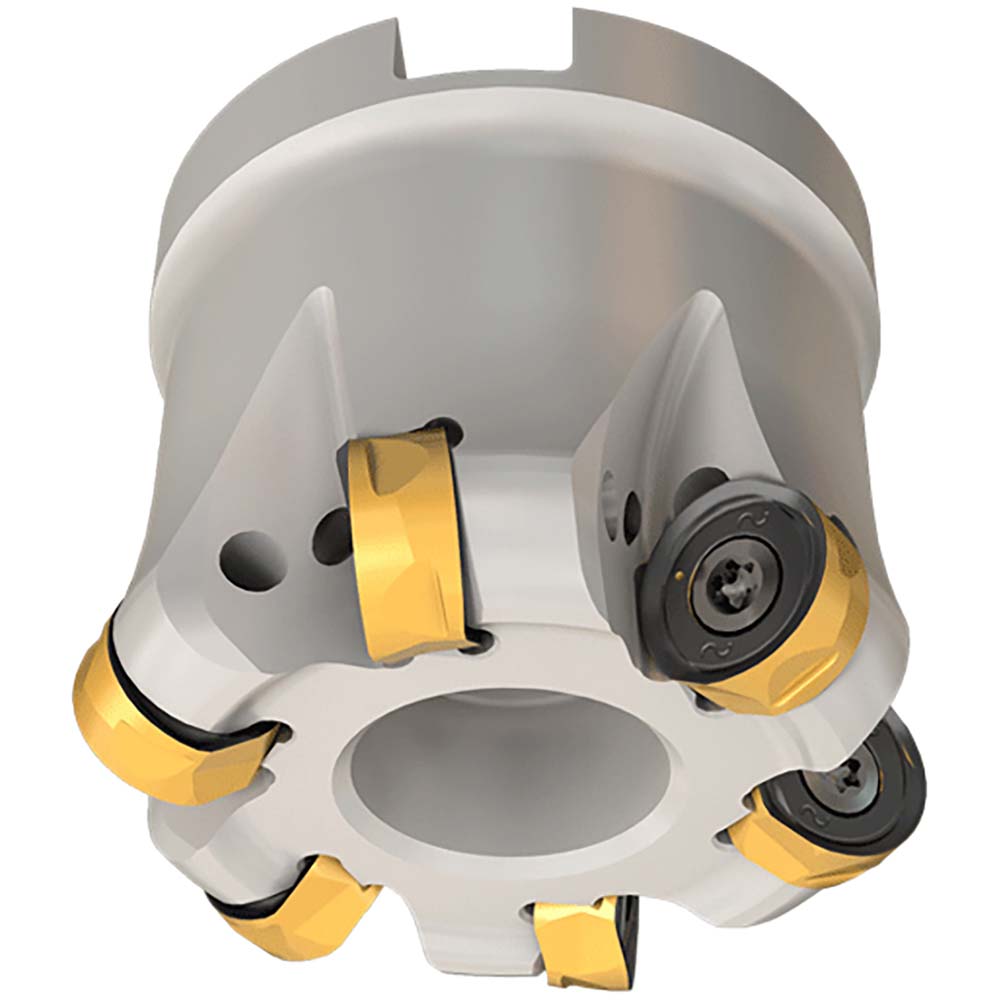

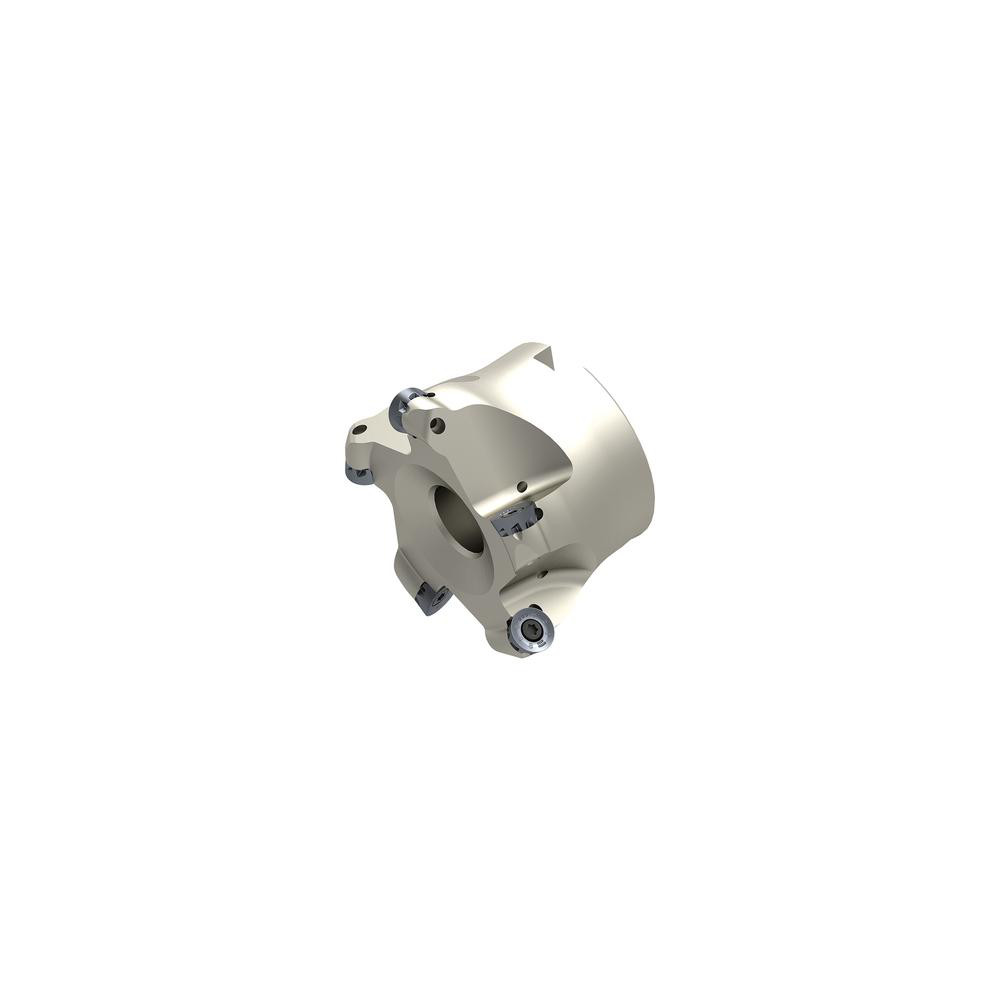

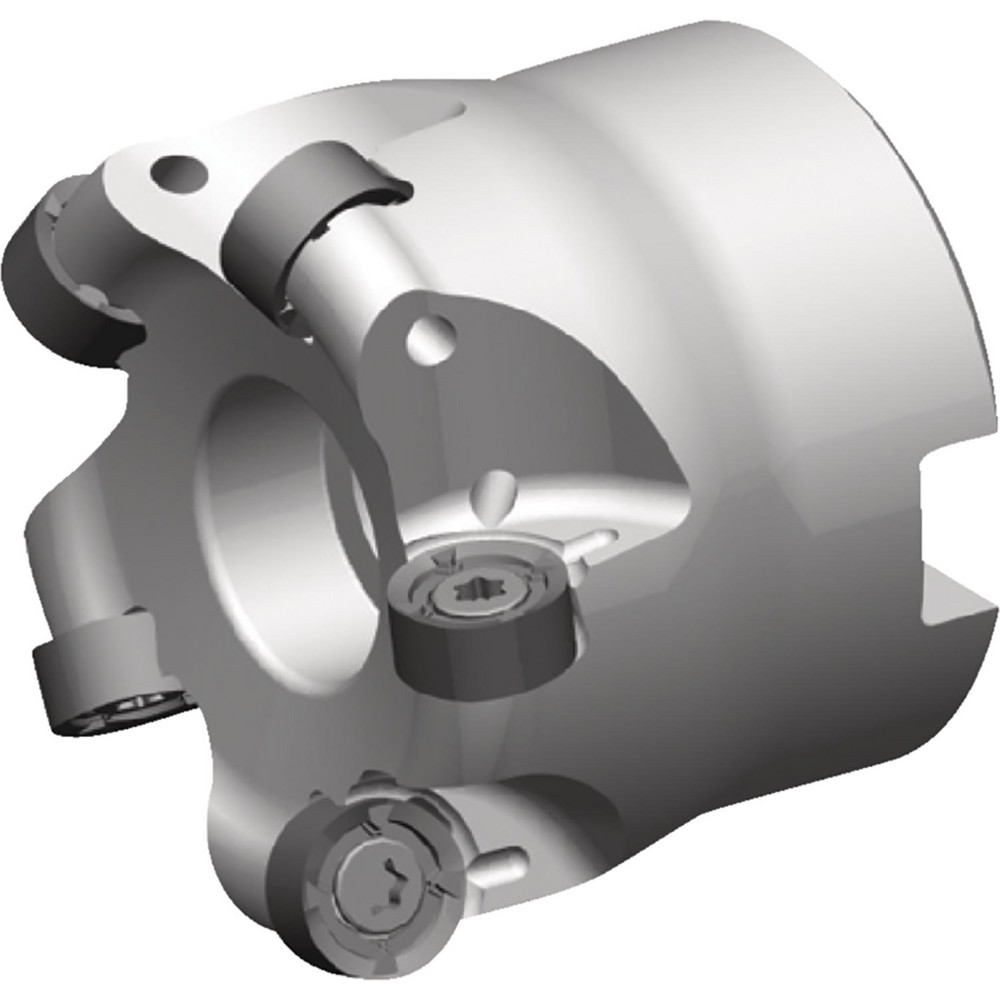

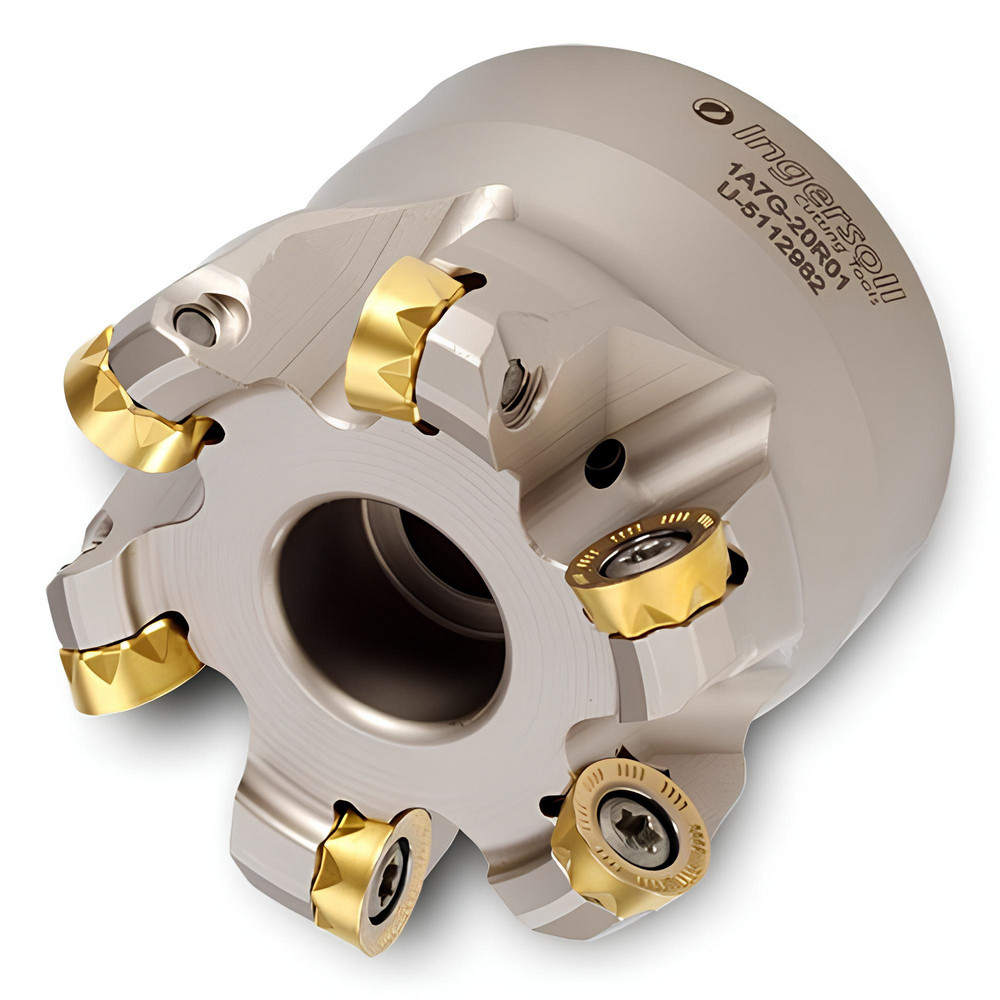

Takes (5) RP.X 10T3.. Inserts, 5 mm Max Depth, Through Coolant

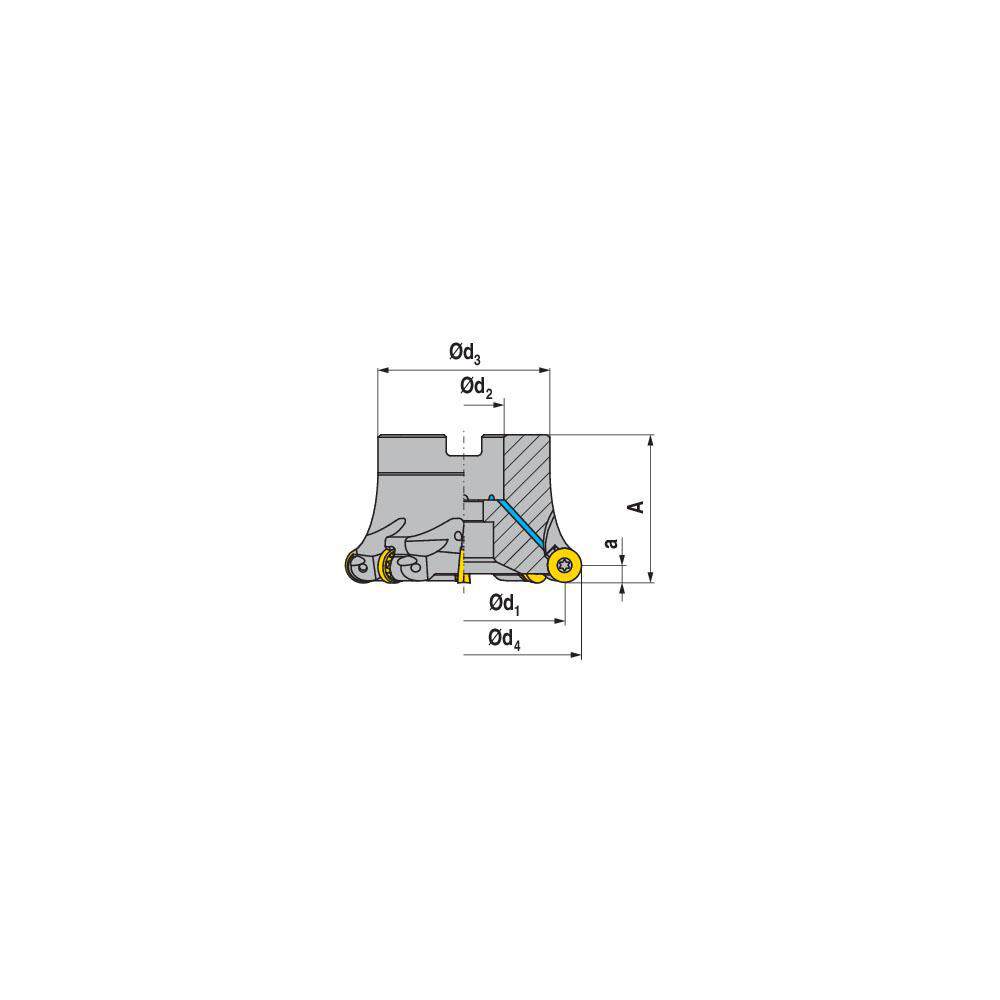

| Minimum Cutting Diameter (mm) | 30.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | RP.X 10T3.. |
| Maximum Ramping Angle | 3.30 |
| Cutter Style | A251 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Series | A251-10 |
| Hub Diameter (Inch) | 38 |
| Hub Diameter (Decimal Inch) | 38.0000 |
| Overall Height (Decimal Inch) | 40.00 |
| Maximum RPM | 16000 |
| Tool Application | Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 33951229 |
