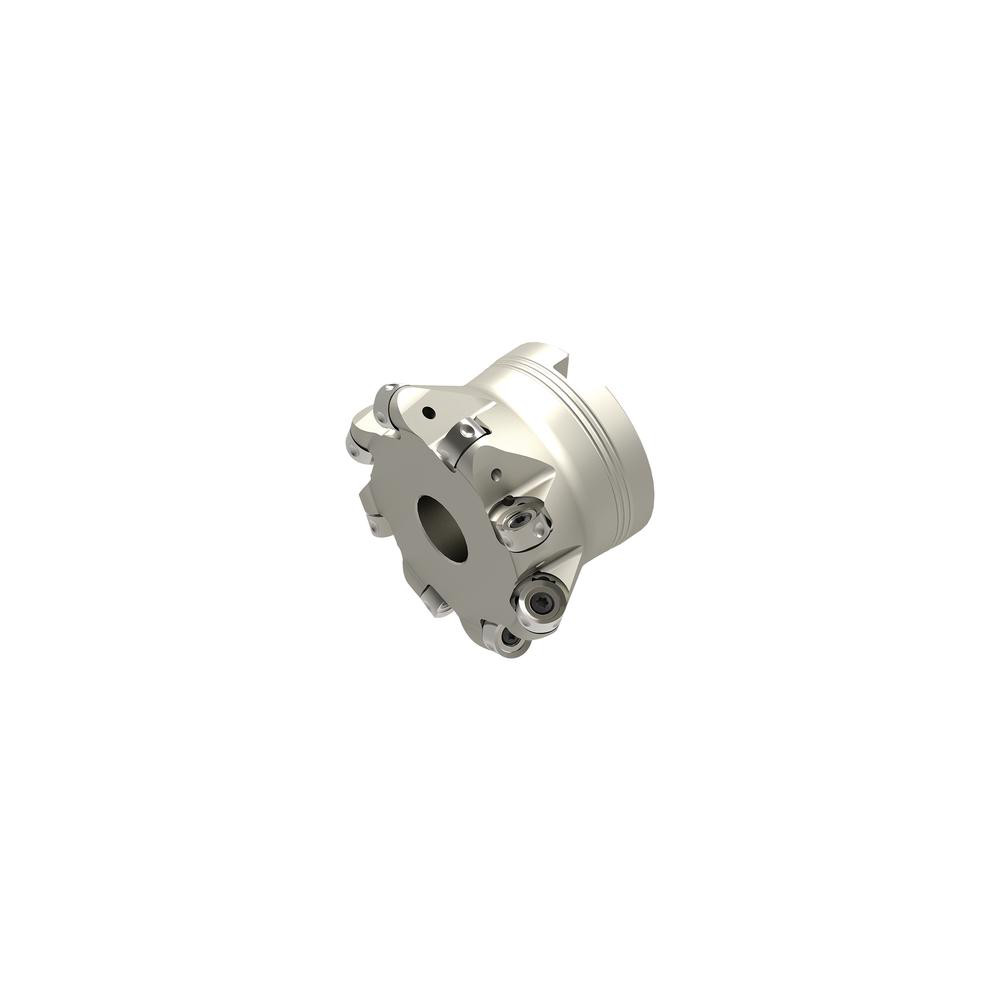

Takes (4) RNHU 1004.. Inserts, 3 mm Max Depth, Through Coolant
| Minimum Cutting Diameter (mm) | 28.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 3.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | RNHU 1004.. |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | A252 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Series | A252-12 |
| Hub Diameter (Inch) | 38 |
| Hub Diameter (Decimal Inch) | 38.0000 |
| Overall Height (Decimal Inch) | 40.00 |
| Maximum RPM | 15900 |
| Tool Application | Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 33951153 |
