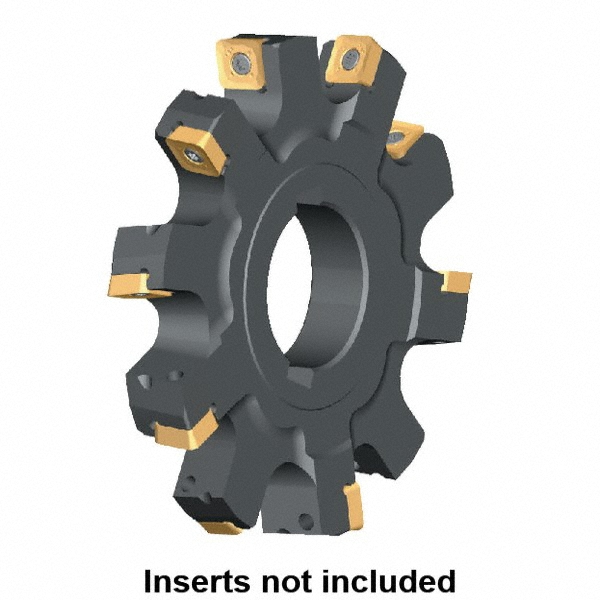

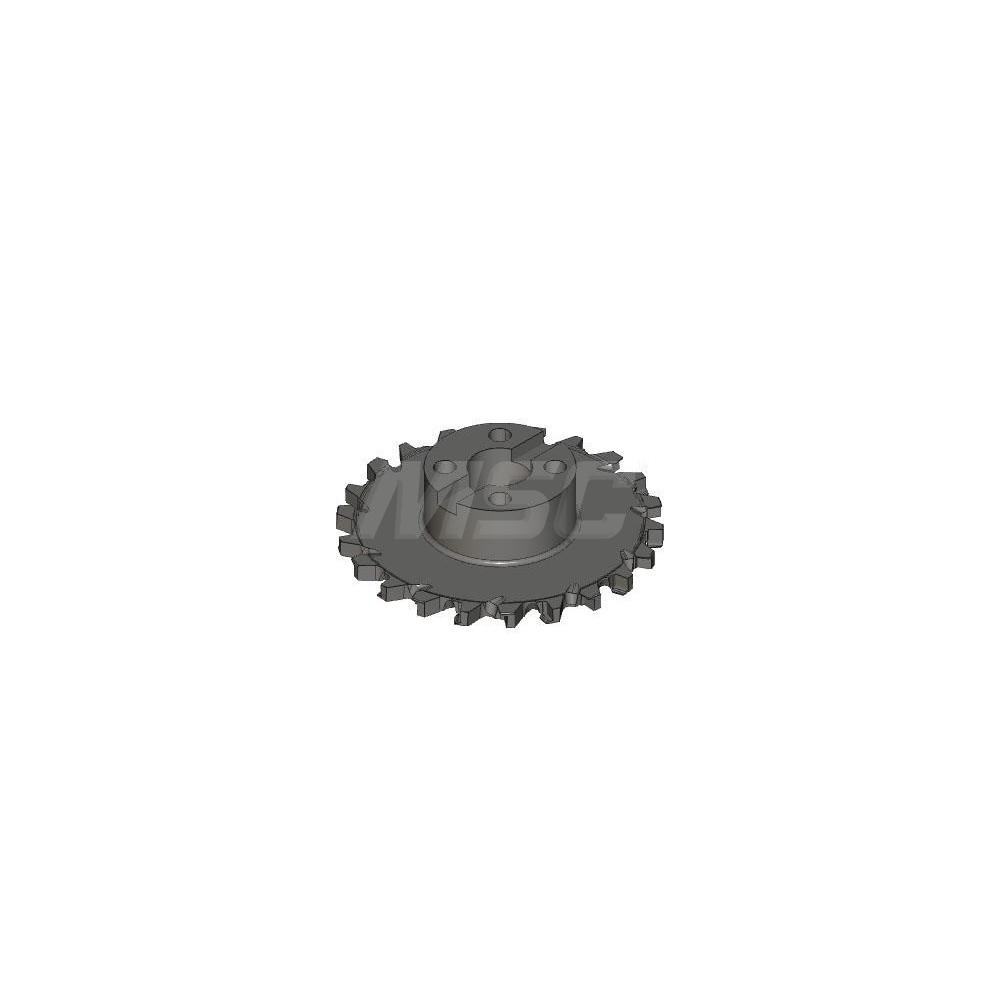

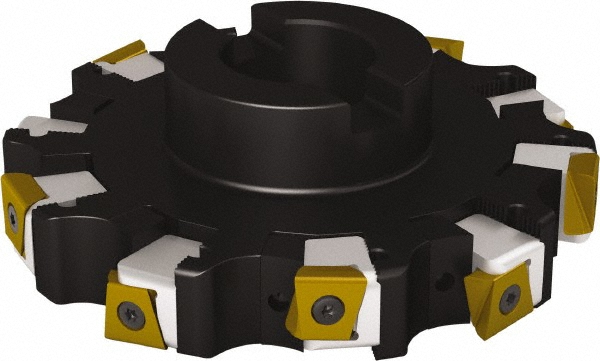

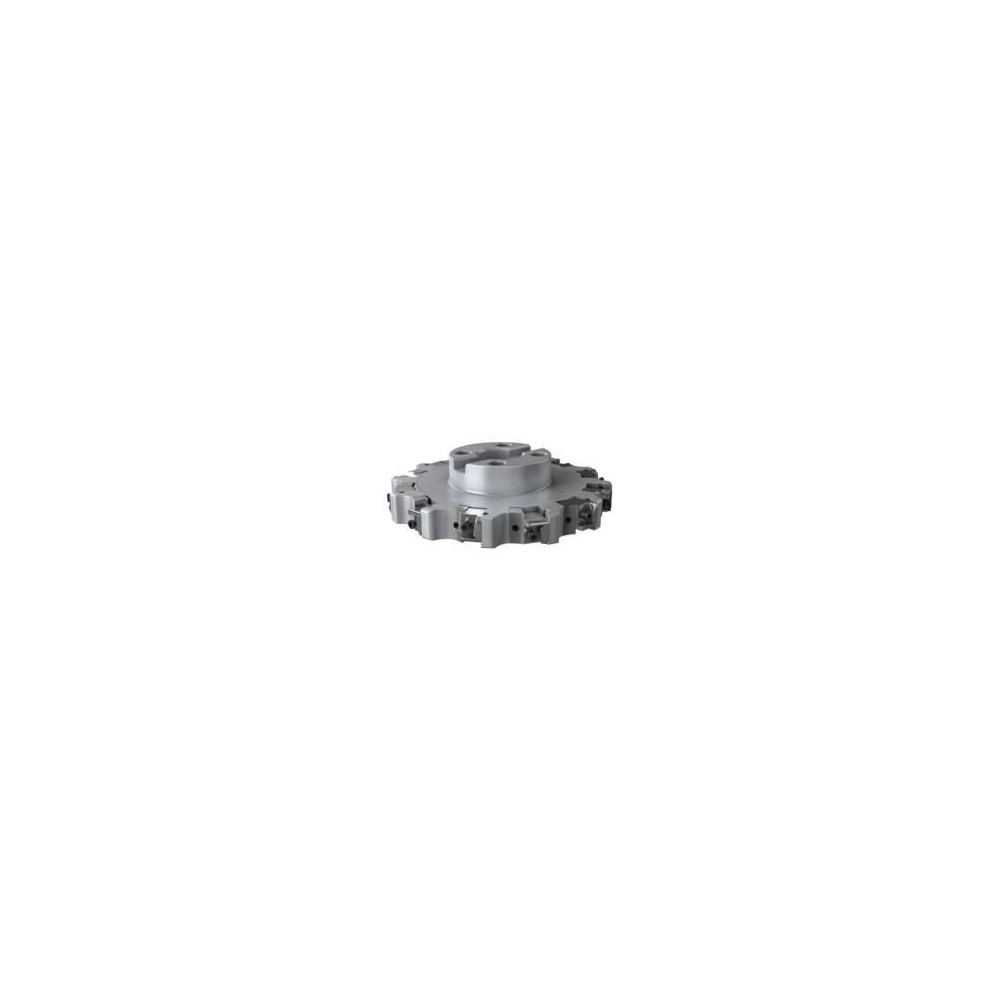

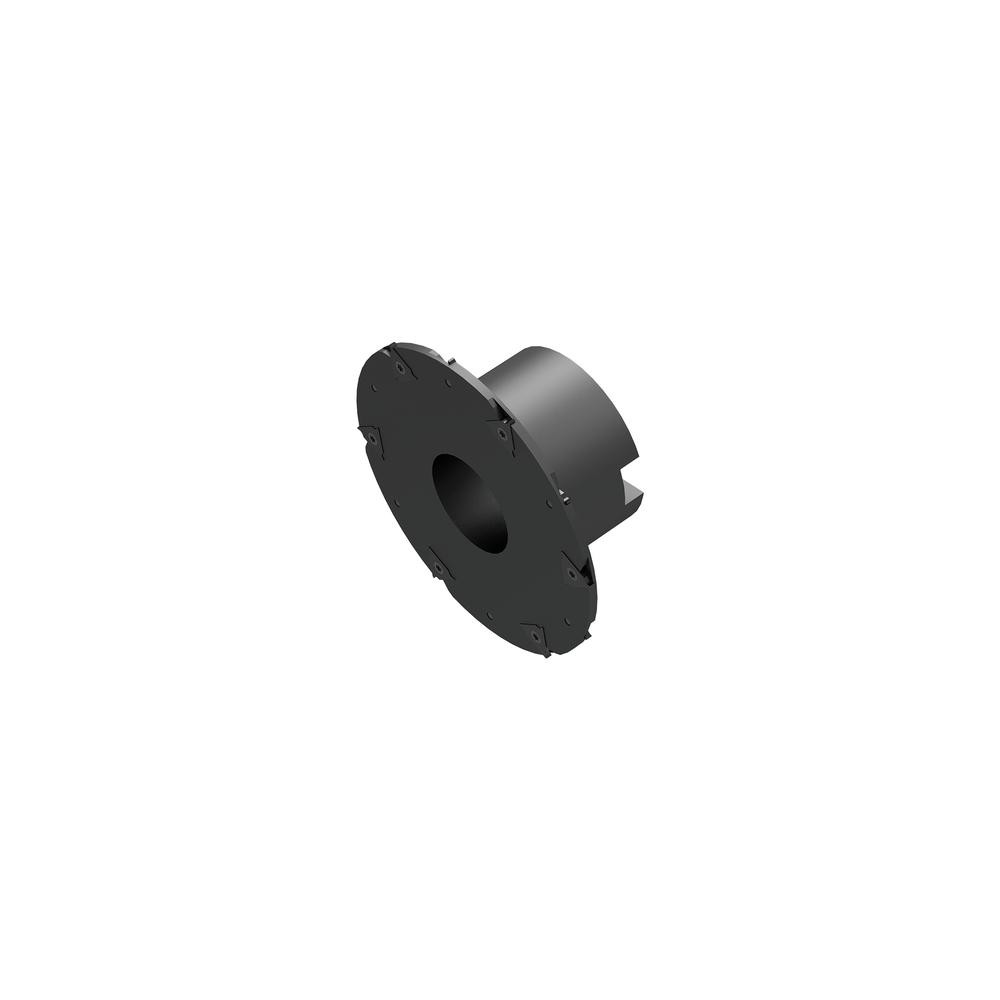

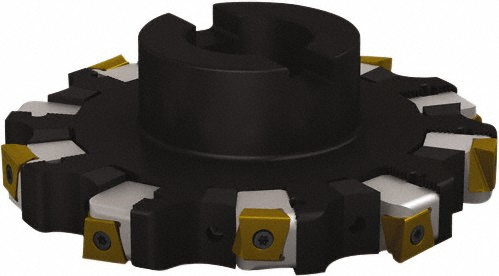

Screw, Uses 18 Inserts, TX Inserts, 9 Tooth, Staggered Teeth, Steel, Coated
| Cutting Width (mm) | 4.00 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 2.1260 |
| Maximum Depth of Cut (mm) | 54.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Cutter Diameter (Decimal Inch) | 7.0866 |
| Cutter Diameter (mm) | 180.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 18 |
| Compatible Insert Style | TX |
| Compatible Insert Size Code | 162302 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | TX.ASF.180.R.04.Z9 |
| Toolholder Style | TX.ASF |
| Hub Diameter (Decimal Inch) | 2.7559 |
| Hub Diameter (mm) | 70.00 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.1575 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 4.9213 |
| Weldon Flat | No |
| Manufacturers Catalog Number | TX.ASF.180.R.04.Z9 |
| Overall Height (Decimal Inch) | 1.9685 |
| Number Of Teeth | 9 |
| Coolant Through | No |
| Complete Insert Compatibility | TX. 162302 |
| Coating/Finish | Black Oxide |
| Coated | Coated |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 12901187 |
