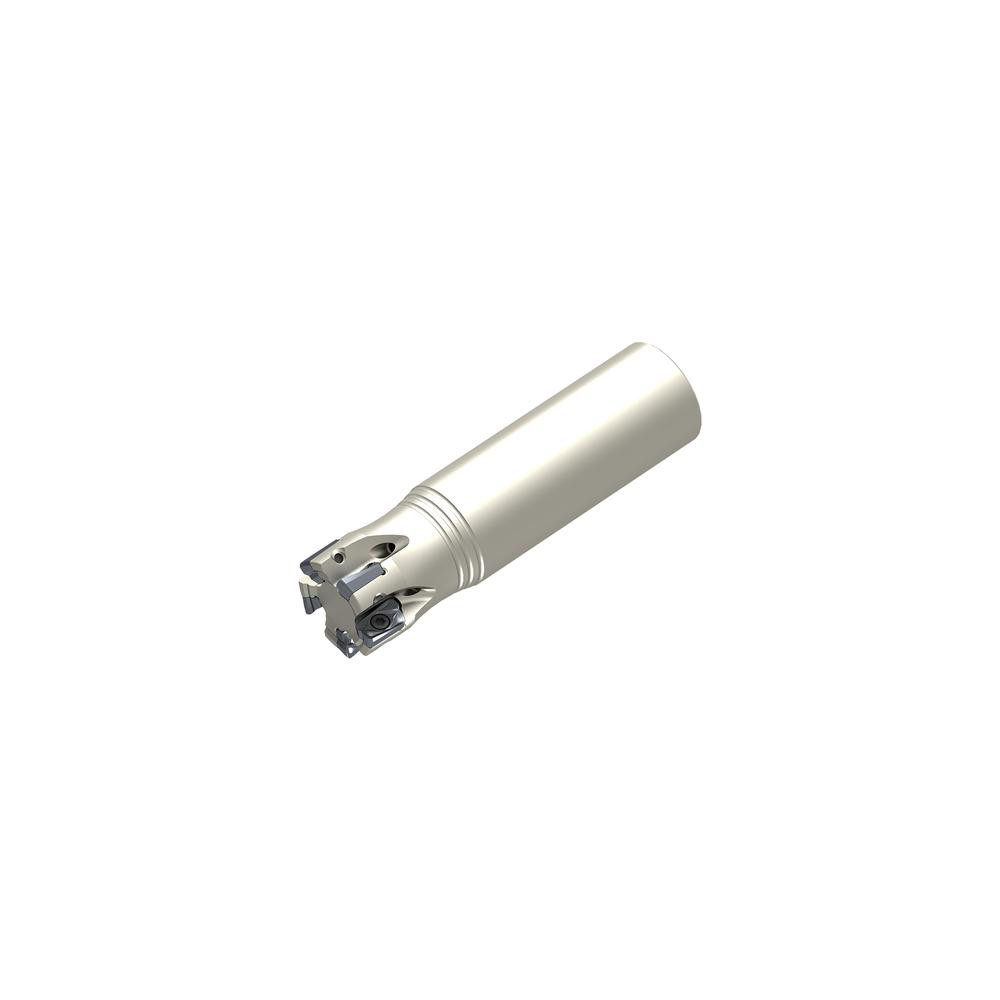

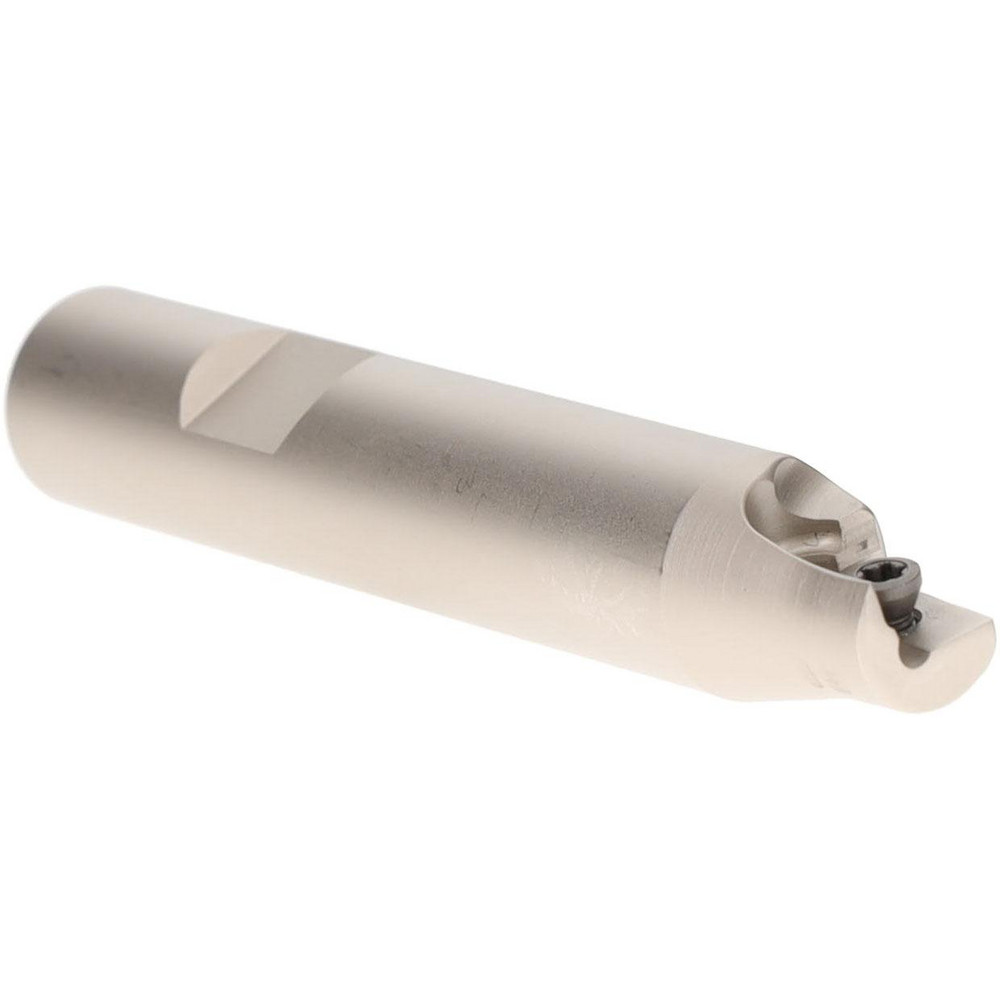

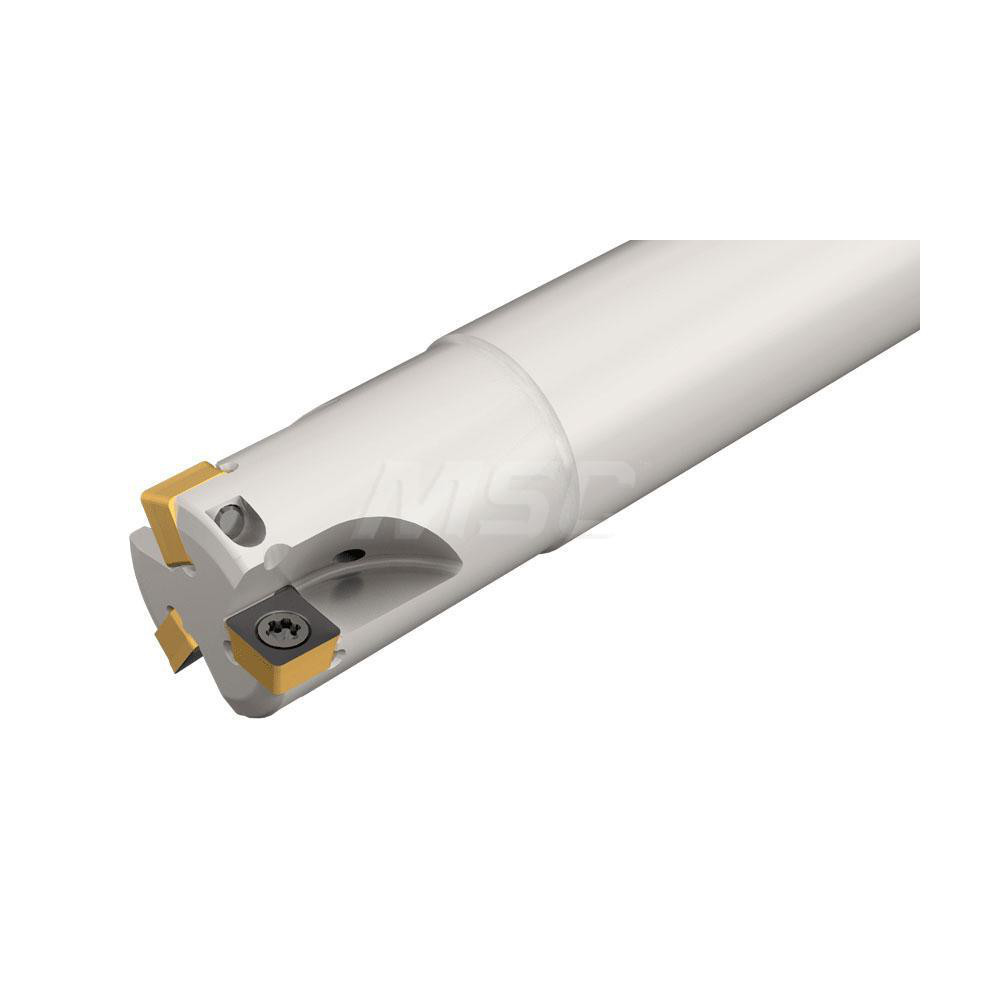

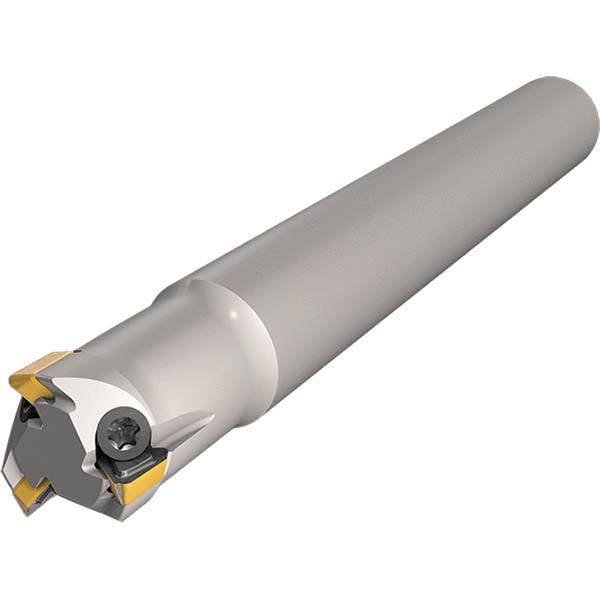

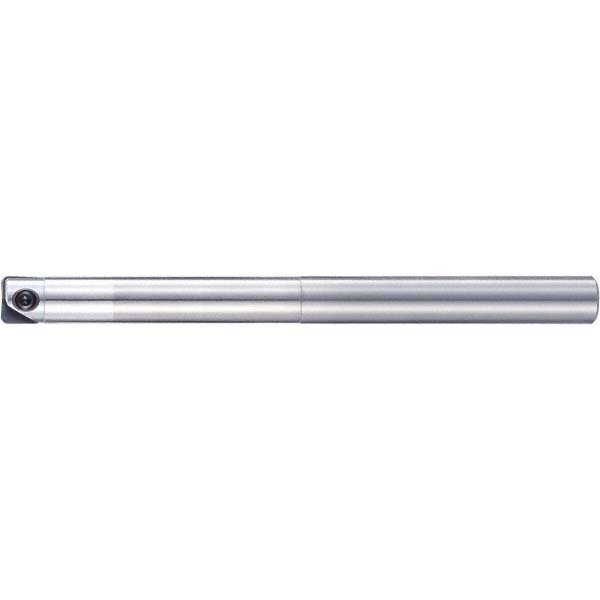

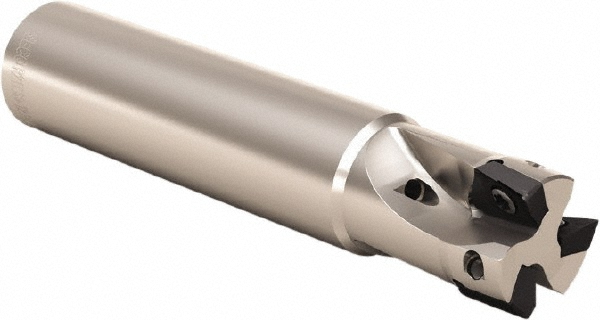

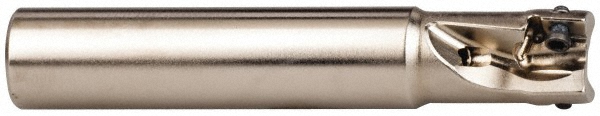

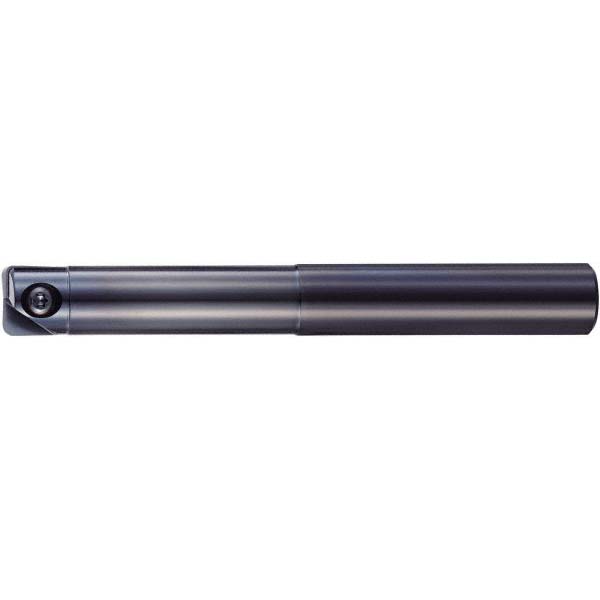

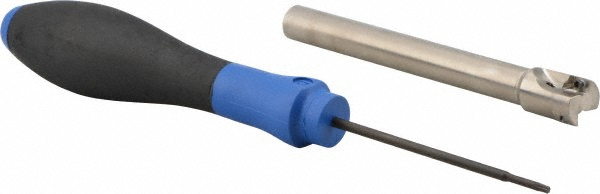

Uses (1) Insert, Through Coolant, 3" OAL

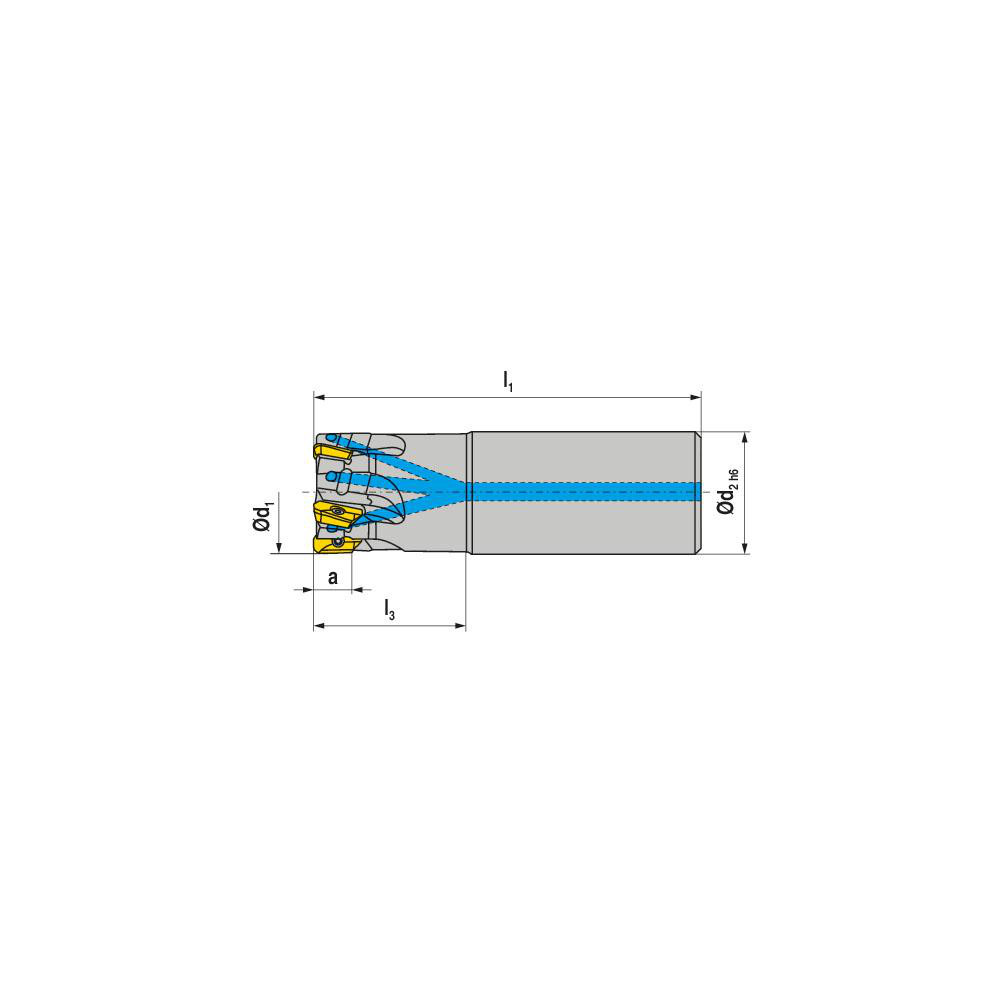

| Cutting Diameter | 3/8 |
|---|---|
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Cutter Style | C211 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 11 |
| Tool Material | Steel |
| Series | C211-07 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/4 |
| Shank Length (Decimal Inch) | 2.2500 |
| Head Length (Inch) | 3/4 |
| Head Length (Decimal Inch) | 0.75 |
| Maximum RPM | 68000 |
| Tool Application | Facing; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 1 |
| Usable Length (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 79937678 |
