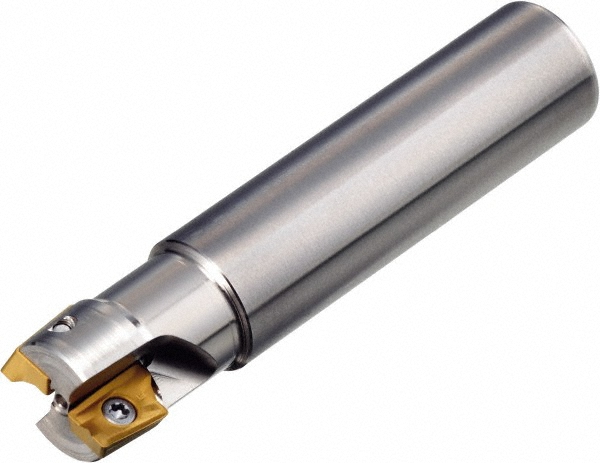

Uses (3) Inserts, Through Coolant, 4" OAL
| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.5510 |
| Cutter Style | C211 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 6.8 |
| Tool Material | Steel |
| Series | C211-15 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/2 |
| Shank Length (Decimal Inch) | 2.5000 |
| Head Length (Inch) | 1-1/2 |
| Head Length (Decimal Inch) | 1.5 |
| Maximum RPM | 24160 |
| Tool Application | Facing; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 1.5000 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 79955530 |
