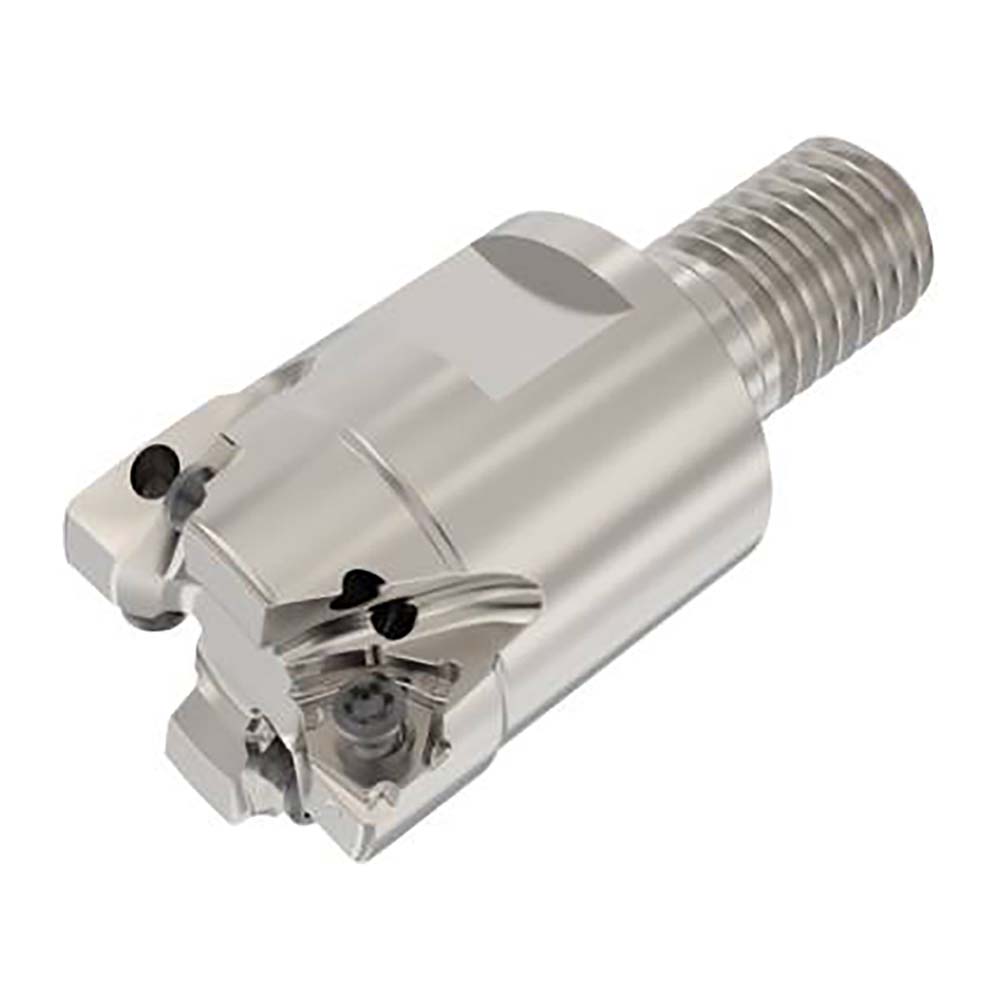

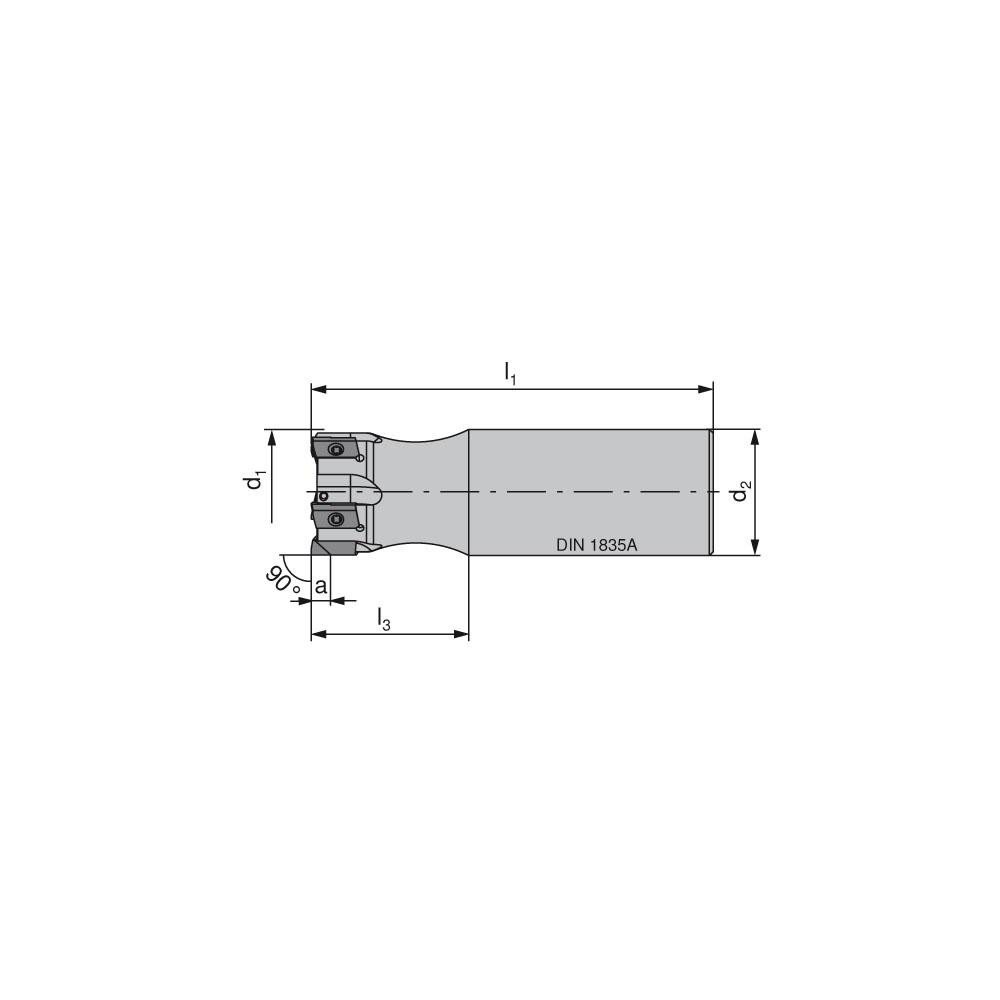

Uses (4) Inserts, Through Coolant, 90 mm OAL
| Cutting Diameter (mm) | 25.00 |
|---|---|
| Overall Length (mm) | 90.00 |
| Maximum Depth of Cut (mm) | 4.00 |
| Cutter Style | CHPC |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | CHPC-04 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (mm) | 58.00 |
| Head Length (mm) | 32.00 |
| Maximum RPM | 45000 |
| Tool Application | Facing |
| Primary Workpiece Material | Aluminum Alloy |
| UNSPSC Code | 27112803 |
| Usable Length (mm) | 32.00 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 79950598 |
