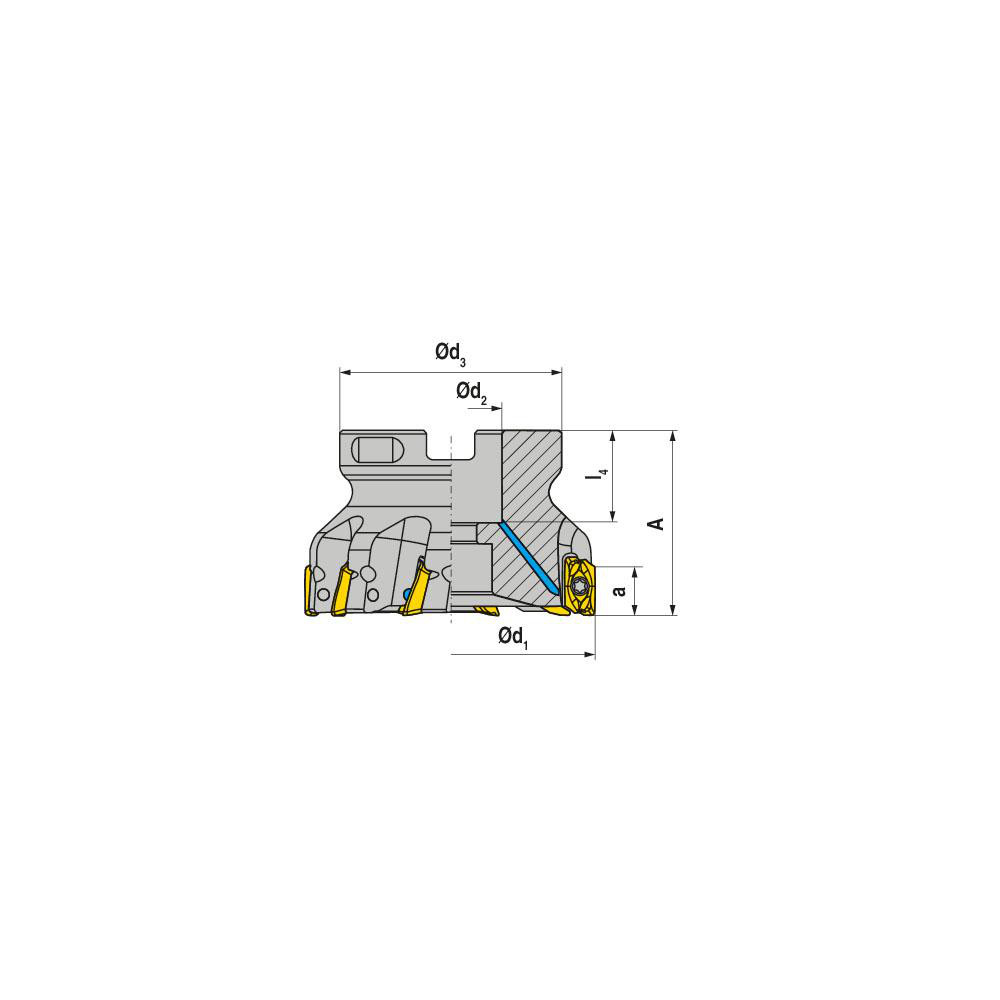

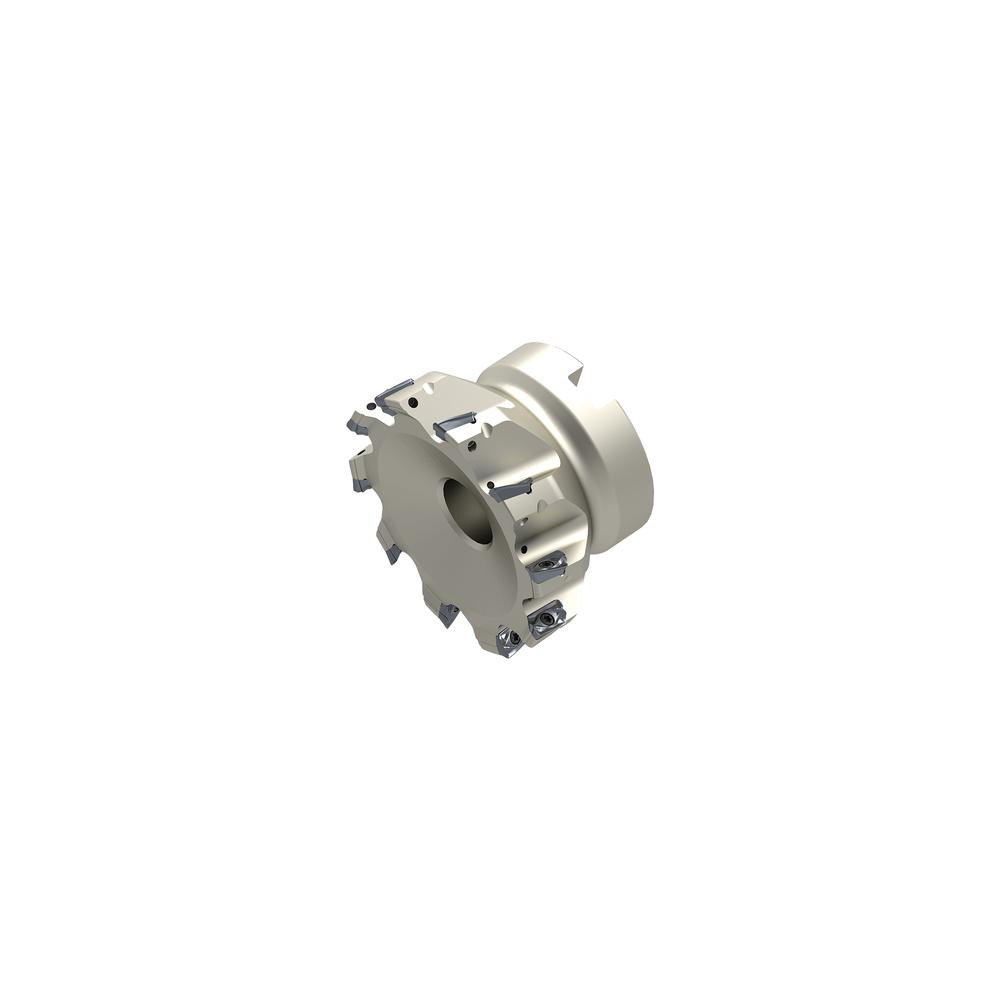

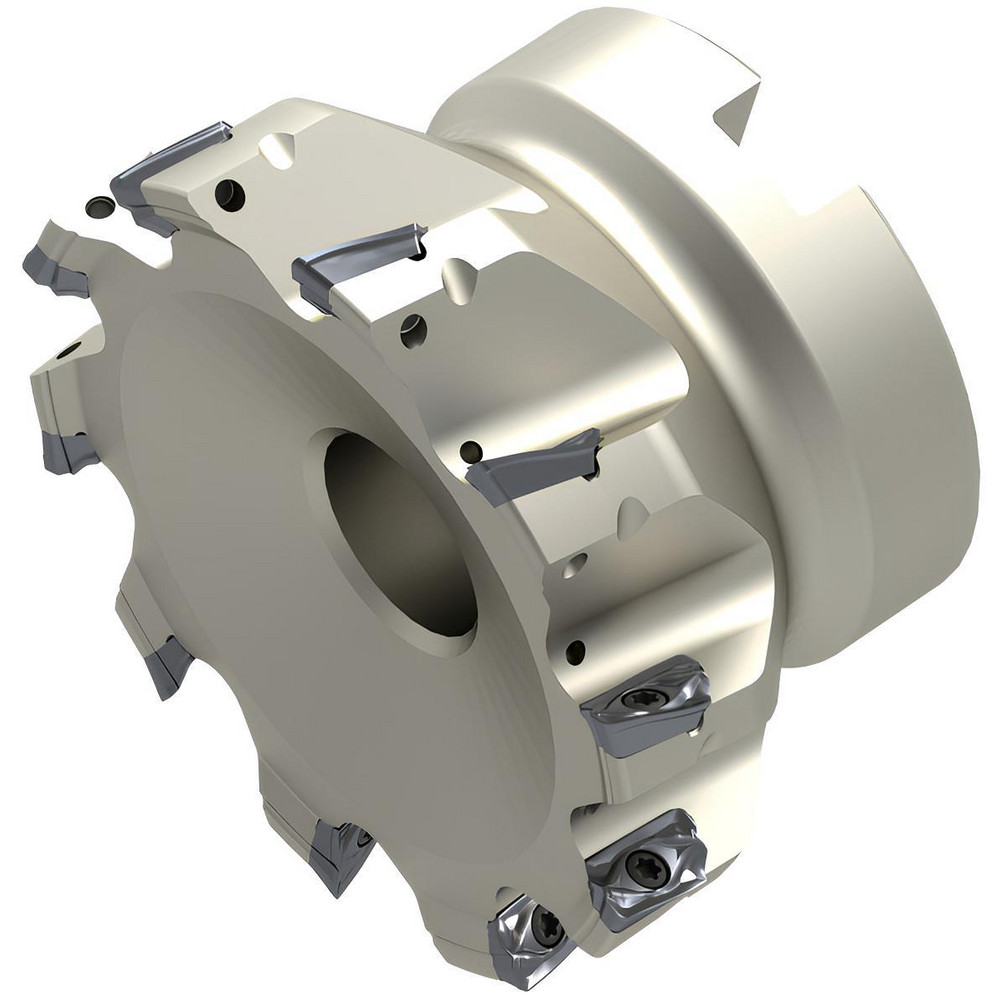

Uses 14, XD.T 11T3 Inserts, Through Coolant, Series A211-11
| Minimum Cutting Diameter (mm) | 100.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Compatible Insert Size Code | XD.T 11T3 |
| Cutter Style | A211 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial) |
| Series | A211-11 |
| Maximum Ramping Angle | 1.00 |
| Overall Height (Decimal Inch) | 78.00 |
| Hub Diameter (mm) | 50.00 |
| Tool Application | Facing; Helical Interpolation; Ramping; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 14 |
| Number Of Flutes | 14 |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 12814414 |
