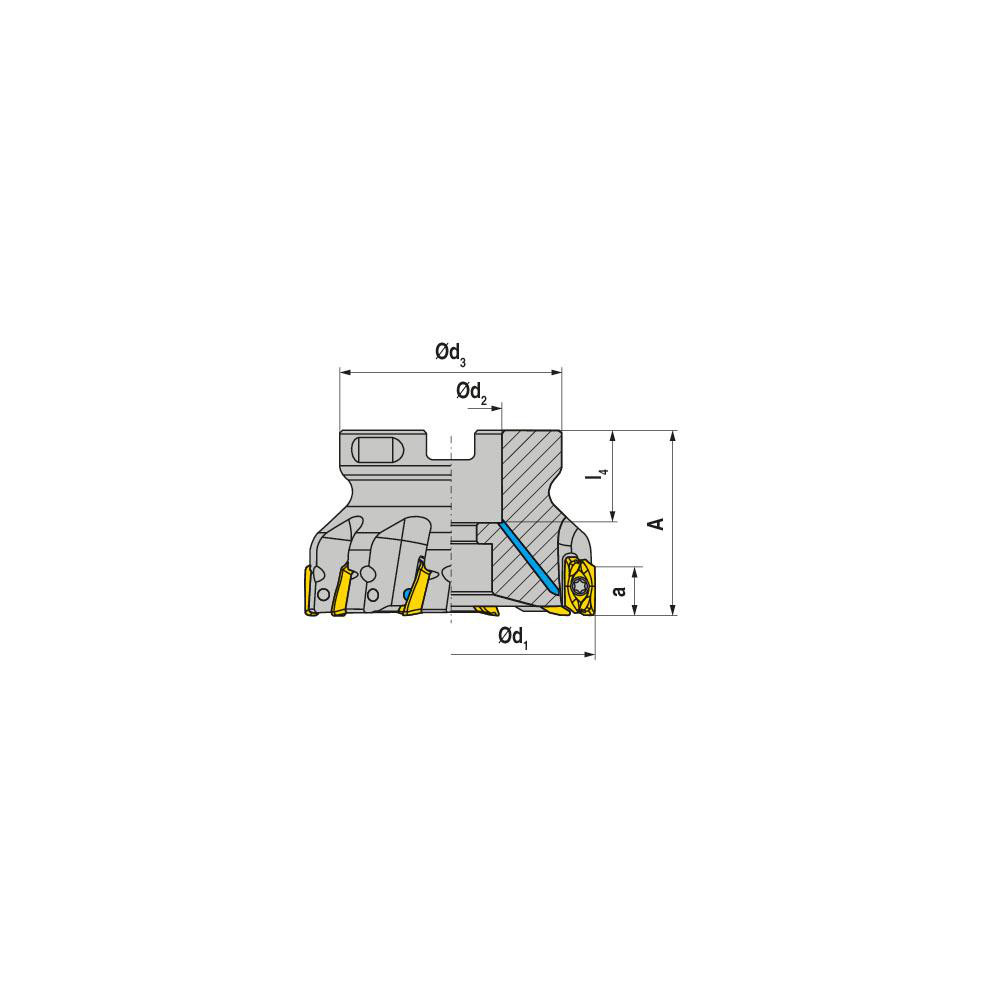

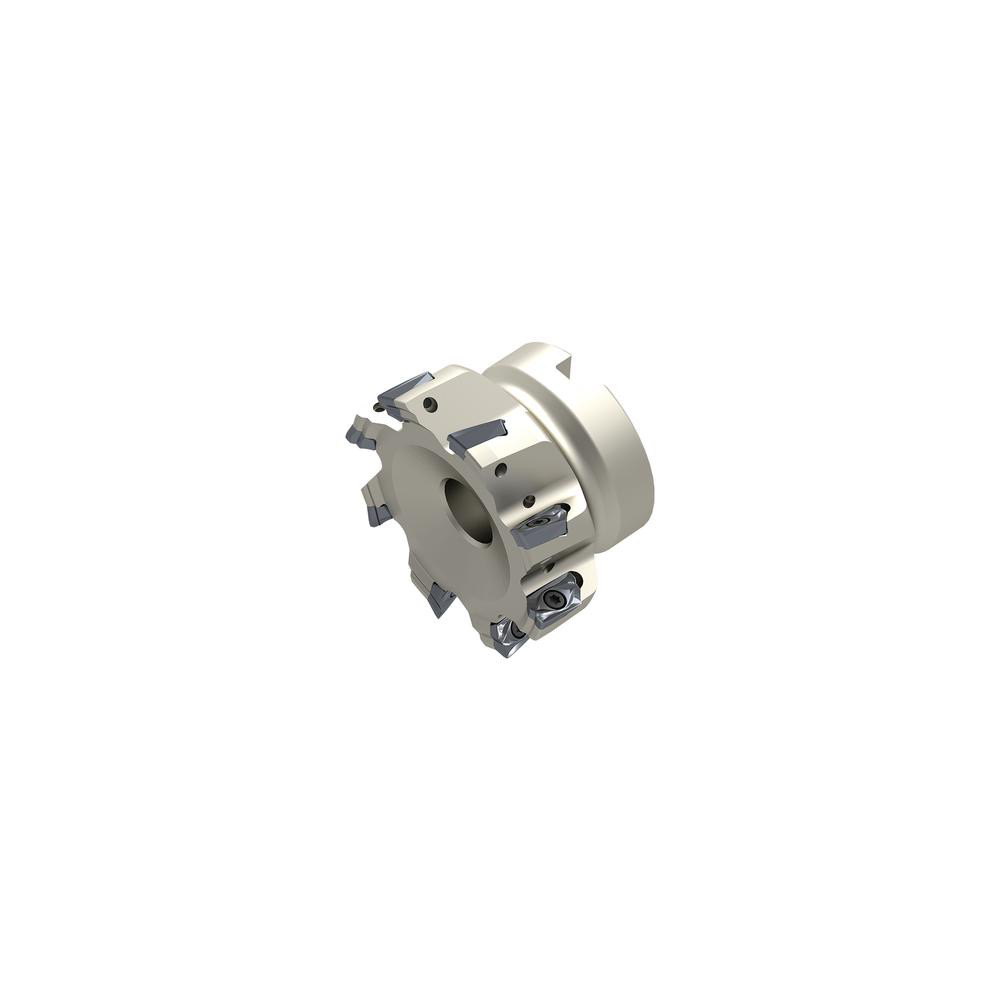

Uses 11, XD.T 1505 Inserts, Through Coolant, Series A211-15
| Minimum Cutting Diameter (mm) | 125.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 14.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | XD.T 1505 |
| Cutter Style | A211 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial) |
| Series | A211-15 |
| Maximum Ramping Angle | 0.80 |
| Overall Height (Decimal Inch) | 88.00 |
| Hub Diameter (mm) | 63.00 |
| Tool Application | Facing; Helical Interpolation; Ramping; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 11 |
| Number Of Flutes | 11 |
| Country of Origin | Bulgaria |
| MSC Number | MSC# 15229750 |
