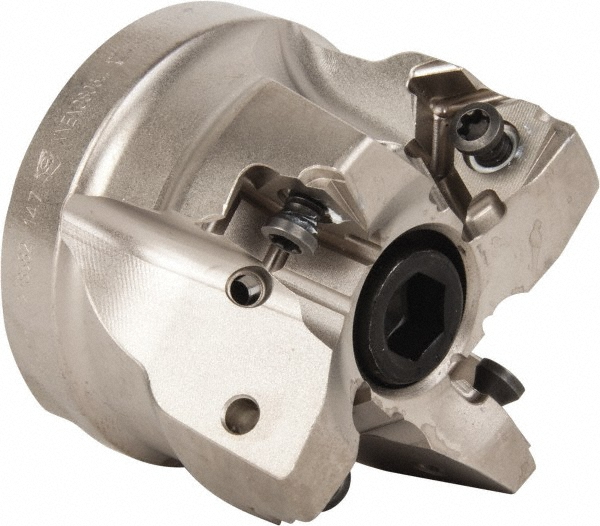

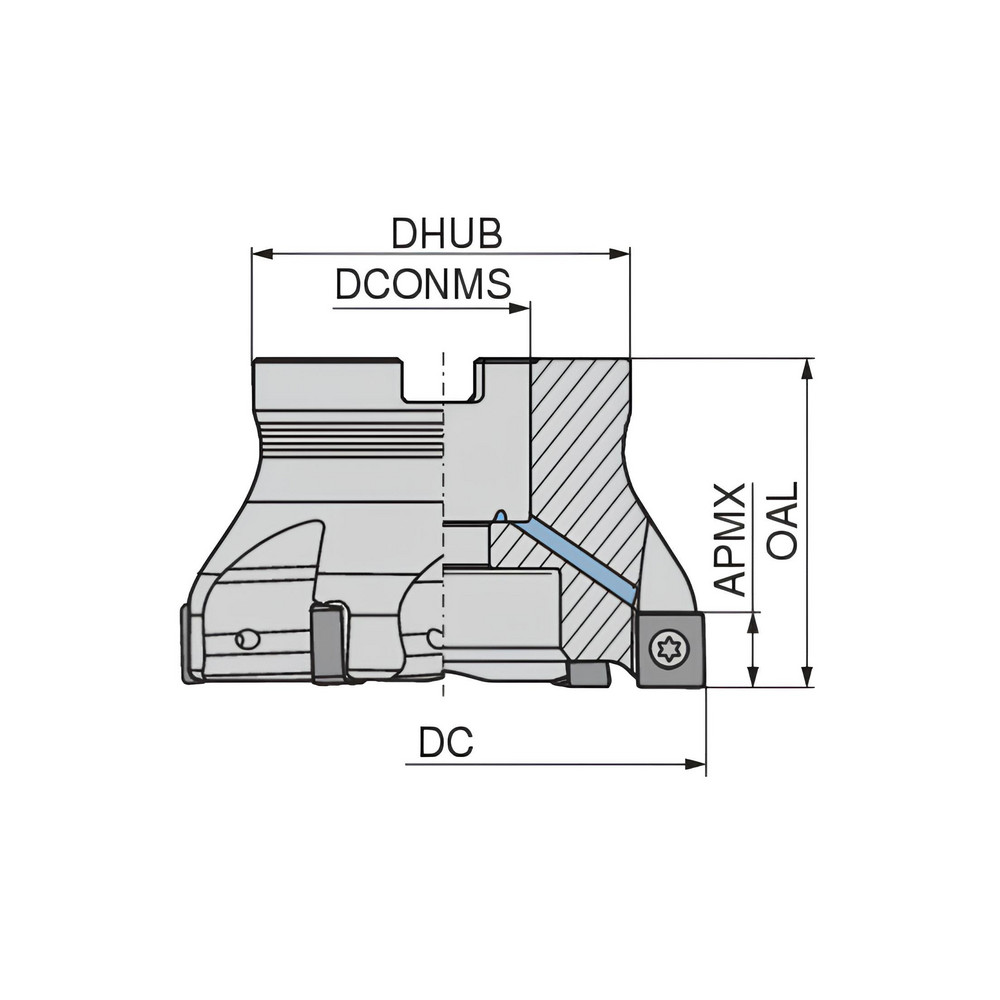

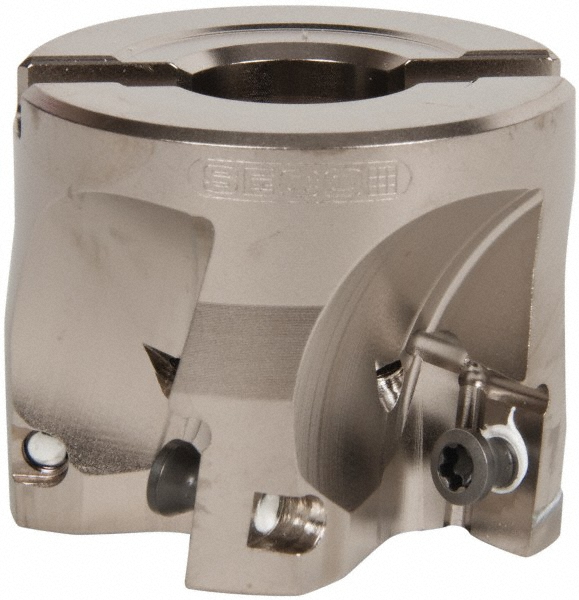

Uses 4, SNHU 09T3 Inserts, Through Coolant, Series A491
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (mm) | 0.75 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | SNHU 09T3 |
| Cutter Style | A491 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | A491 |
| Maximum Ramping Angle | 0.00 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Hub Diameter (Inch) | 1-3/4 |
| Tool Application | Facing; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 12683496 |
