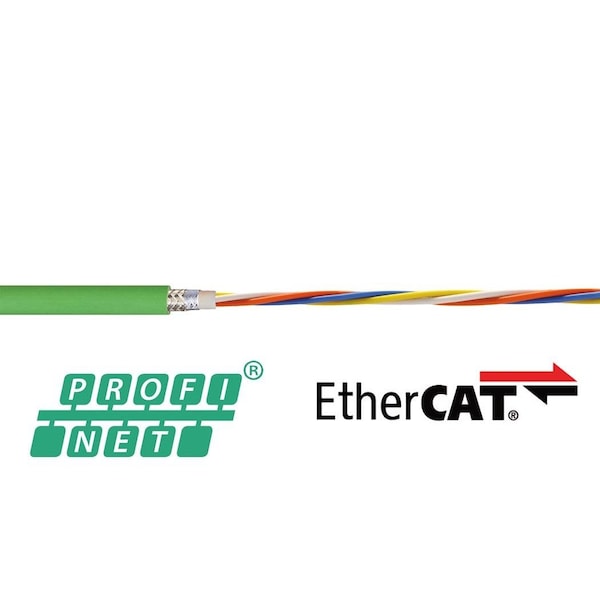

Bus Cable, PVC, 50 V, 0.28 in dia, Ylw/Green
| Item | Bus Cable |
|---|---|
| Length | Order by the Foot |
| Voltage | 50 V |
| Jacket Color | Green, Yellow |
| Shielding | Shielded |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Standards | 2014/35/EU, 2014/35/EUL/CSA AWM, CTP 2011/65/EU (RoHS Compliant-II), EAC TC RU C-DE. ME77.B.01559 |
| Minimum Operating Temperature - Flexible | 23 deg F |
| Product Type | Bus Cable |
| Minimum Bend Radius Factor - Flexible | 12 x OD |
| Maximum Acceleration | 65.6 m/sq sec |
| Minimum Bend Radius Factor - Fixed | 8 x OD |
| Resistance Properties | Oil and Grease Resistant |
| Minimum Operating Temperature - Fixed | 5 deg F |
| Cable Series | CF888 |
| Maximum Operating Temperature | 158 deg F |
| Conductor Grouping | (2) Pair 22 AWG (0.34) |
| Includes Ground | No |
| Minimum Bend Radius Factor - E-Chain | 15 x OD |
| Conductor Color Code | Blue, Orange, White, Yellow |
| Outside Diameter | 0.28 in |
| Bus System | Profinet |
| Maximum Velocity - Unsupported | 10 fps |
| Impedance | 100 ohms |
| Package Quantity | 1 |
