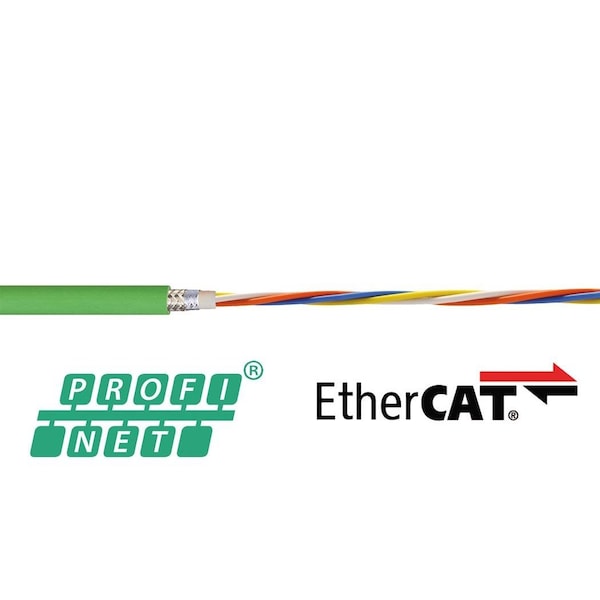

Bus Cable, TPE, 50 V, 0.3 in dia, Ylw/Green
| Item | Bus Cable |
|---|---|
| Length | Order by the Foot |
| Voltage | 50 V |
| Jacket Color | Green, Yellow |
| Shielding | Shielded |
| Conductor Material | Copper |
| Jacket Material | TPE |
| Standards | 2011/65/EU (RoHS Compliant-II), 2014/35/EU, CE 2014/35, TC RU C-DE. ME77.B.01218, VDW DESINA |
| Resistance Properties | Antimicrobial, Oil and Grease Resistant, UV/Sunlight Resistant |
| Maximum Acceleration | 328.1 m/sq sec |
| Maximum Operating Temperature | 158 deg F |
| Includes Ground | No |
| Bus System | Profinet |
| Minimum Bend Radius Factor - Fixed | 7.5 x OD |
| Outside Diameter | 0.3 in |
| Minimum Bend Radius Factor - E-Chain | 7.5 x OD |
| Minimum Operating Temperature - Flexible | -58 deg F |
| Maximum Velocity - Supported | 20 fps |
| Conductor Grouping | (2) Pair 22 AWG (0.38) |
| Cable Series | CFBUS-LB |
| Product Type | Bus Cable |
| Conductor Color Code | Blue, Orange, White, Yellow |
| Minimum Operating Temperature - Fixed | -67 deg F |
| Minimum Bend Radius Factor - Flexible | 7.5 x OD |
| Maximum Velocity - Unsupported | 33 fps |
| Package Quantity | 1 |
